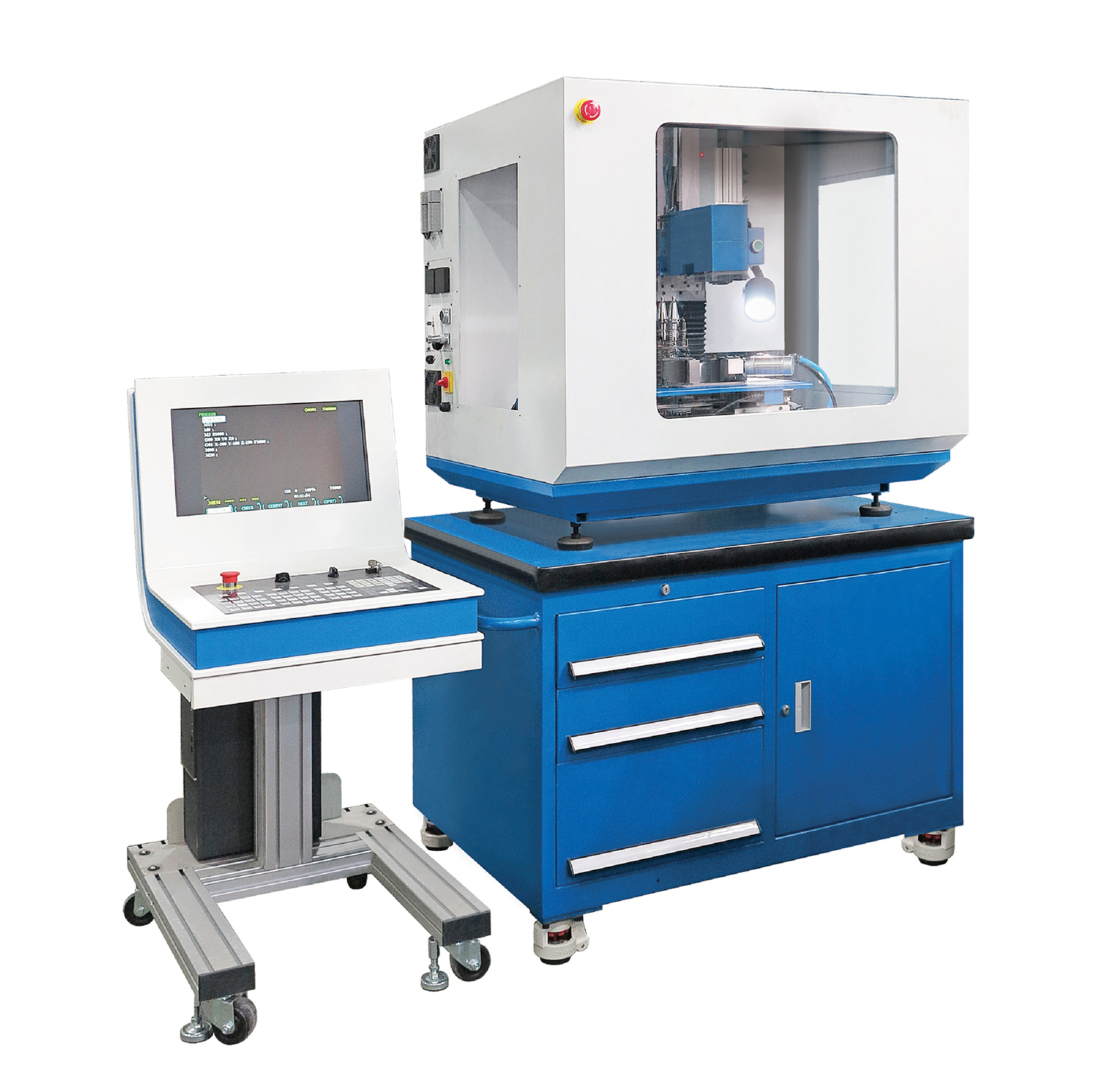

CNC Milling Machine with Enclosed Work Area
This high-precision CNC milling machine is designed for intricate and accurate machining operations. It features a fully enclosed work area for safety, a user-friendly control panel, and a robust frame for stability.
Technical Specifications
Overview
Precision CNC Milling Solution
This CNC milling machine is designed for high-precision machining operations, featuring a fully enclosed work area to ensure operator safety and maintain a clean workspace. Equipped with a 1000W spindle motor and a 4-tool capacity, it offers versatility for a wide range of materials and applications. The integrated coolant system and robust frame provide the stability and performance required for intricate cutting tasks.
Performance Metrics
Key Performance Metrics
5,000 RPM
Max Spindle Speed
1,000 W
Motor Power
0.015 mm
Positioning Accuracy
0.01 mm
Repeatability
Technical Specifications
Travel Distances
| Axis | Travel Distance |
|---|---|
| X-Axis | 260mm |
| Y-Axis | 152mm |
| Z-Axis | 180mm |
- Table Dimensions
- 400 x 145 mm
- Number of Tools
- 4
Physical Characteristics
- Machine Dimensions
- 1040 x 860 x 940 mm
- Total Weight
- 340 kg
Features
Included Components
- Programmable control panel
- Movable control stand with wheels
- Integrated coolant system
- Cabinet base with storage drawers
- Blue protective housing
- Safety & Design
- Enclosed Work AreaEmergency StopTransparent Observation WindowAdjustable Leveling Feet
