Brushless DC Motor with Flat Cable Connector
This brushless DC motor is designed for various applications. It features a 4-pole design and operates on a 12V, 3-phase power supply.

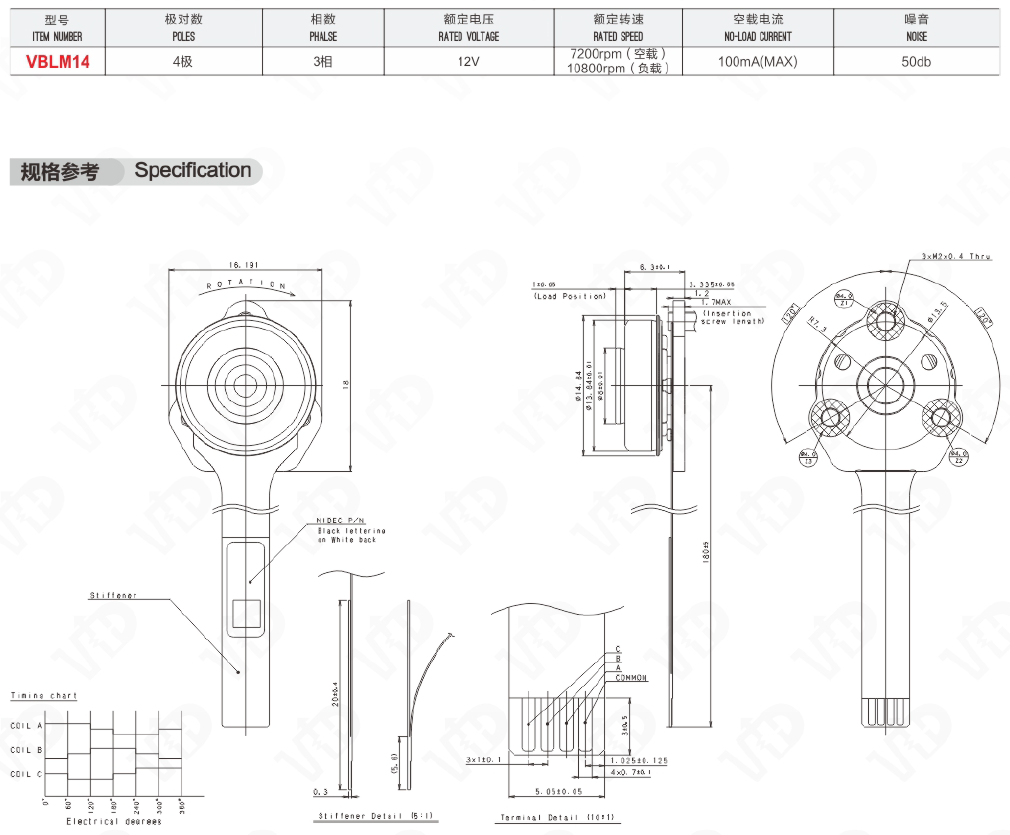

Technical Specifications
Overview
High-Performance Brushless DC Motor
The VBLM14 is a compact and efficient brushless DC motor designed for high-speed applications such as household electrical appliances. Featuring a 4-pole, 3-phase design, it offers a balance of high rotational speed and low noise operation at 50dB. Its integrated flexible flat cable connector and precision-engineered metallic housing ensure easy integration and reliable performance in space-constrained environments.
Key Performance Metrics
Performance Highlights
10,800 rpm
Rated Speed (Load)
12 V
Rated Voltage
50 dB
Noise Level
Electrical Specifications
- Rated Voltage
- 12 V
- No-Load Current (Max)
- 100 mA
- Phase
- 3-Phase
- Poles
- 4
Mechanical Performance
- No-Load Speed
- 7200 rpm
- Rated Speed under Load
- 10800 rpm
Physical Dimensions
- Mounting Hole Specification
- 3 x M2 x 0.4 Thru
- Max Screw Insertion Length
- 1.7 mm
- Housing Diameter
- 13.84 mm
- Load Position
- 10.05 mm
Features & Construction
- Connector Type
- Flexible Flat Cable with Stiffener
- Key Features
- Low NoiseBrushless DesignCompact Form FactorHigh SpeedMetallic Housing
Technical Details
Coil Timing
- Coil A Timing
- Coil B Timing
- Coil C Timing
- 120° Electrical Degrees
