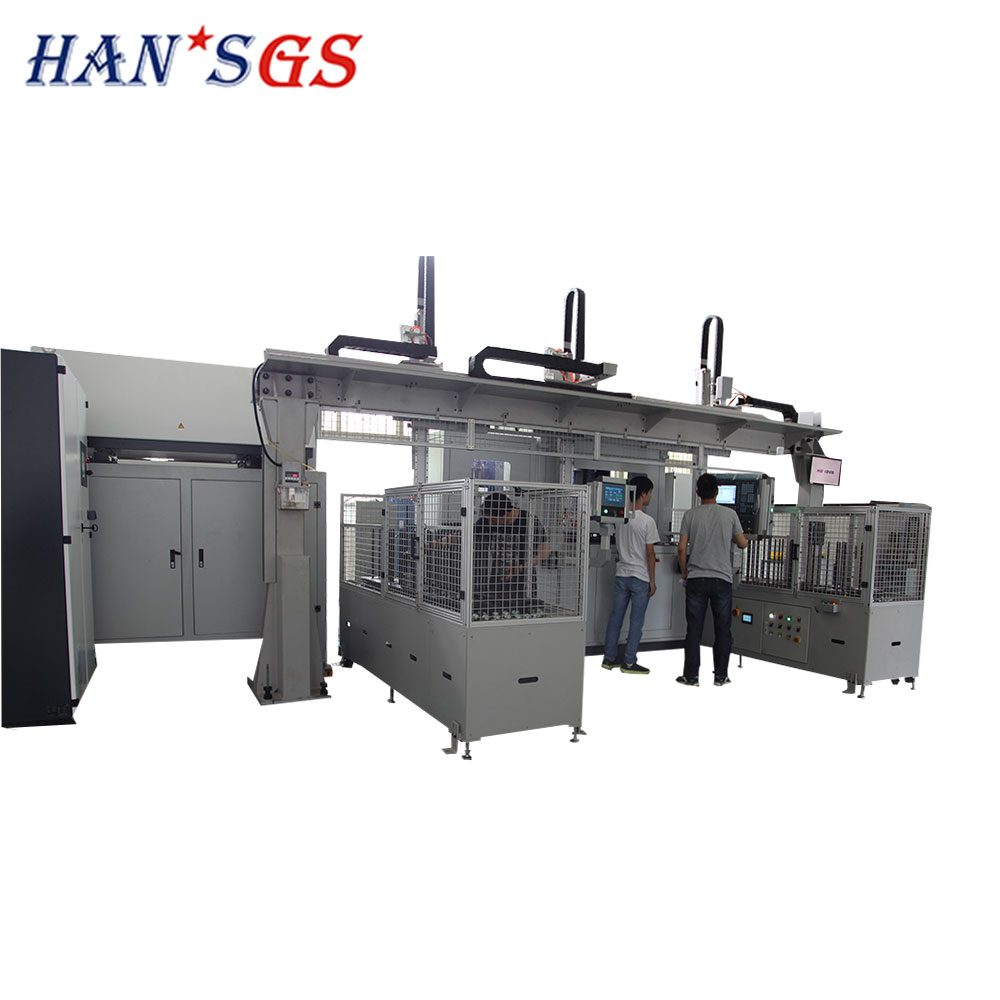

Automotive Gearbox Gear Laser Welding Machine
This laser welding machine is designed for welding gears in automotive gearboxes. It utilizes a high-power laser source and automated controls for precise and efficient welding.
Technical Specifications
Overview
High-Precision Gear Laser Welding Solution
This advanced laser welding machine is a specialized solution designed for the automotive gearbox industry, specifically for welding double gears and double gear shafts. It integrates a high-power laser source with a sophisticated CNC system to provide stable, reliable, and durable operation in high-volume production environments. The system features automated loading and unloading via a manipulator, ensuring high efficiency and consistent weld quality for critical automotive components.
Laser System
Laser Performance Metrics
3,000 W
Max Output Power
10.6 μm
Output Wavelength
50 KW
Cooling Capacity
Laser Technical Details
| Parameter | Value |
|---|---|
| Power Stability | ±2% |
| Laser Beam Diameter | 20-25mm |
| Beam Stability | ≤0.15mrad |
| Cooling System | LSJR-500BX water-cooled unit |
Motion & Precision
Axis Travel Range
| Axis | Travel Distance |
|---|---|
| X-axis | 300mm |
| Y-axis | 400mm |
| Z-axis | 175mm |
| W-axis | 100mm |
- Positioning Accuracy
- 0.02 mm
- Repeat Positioning Accuracy
- 0.01 mm
- Maximum Operating Speed
- 5 m/min
- U-axis Rotating Speed
- 7.5 ~ 37.5rpm
Control & Automation
Key System Components
- High power laser source
- Chiller unit
- Processing machine
- Automatic preheating machine

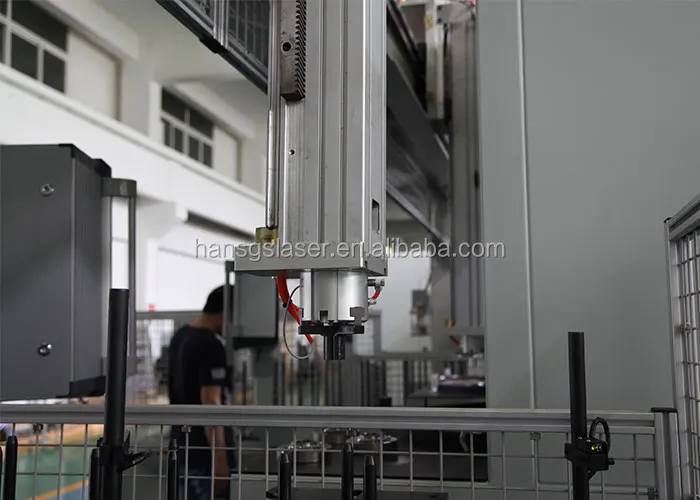

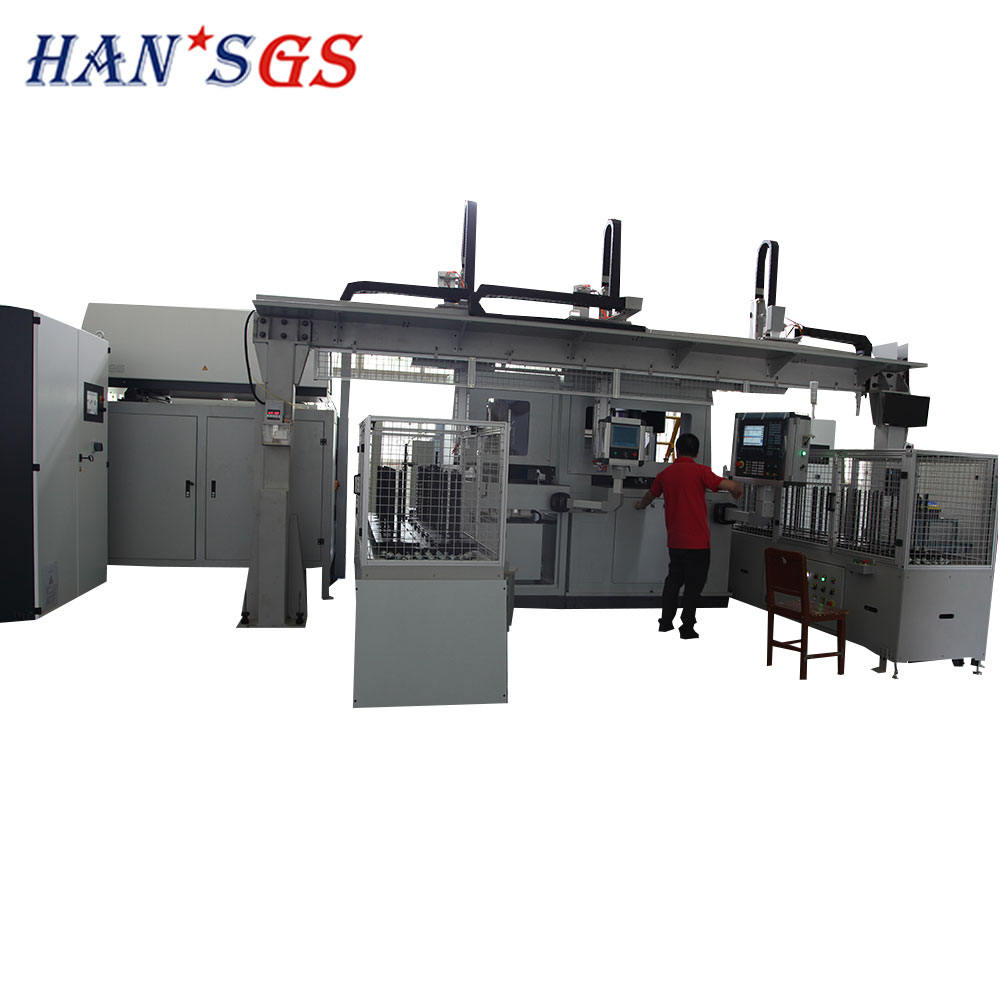

- Loading and unloading manipulator

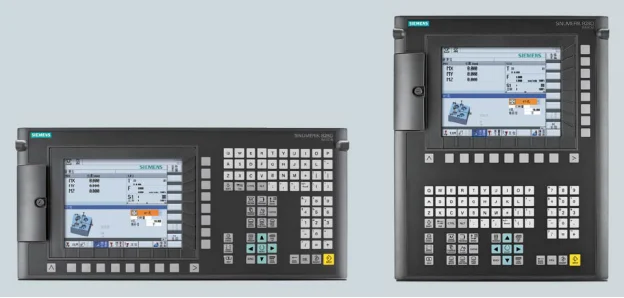

- CNC control system
- Control System Capabilities
- Integrated ControlCentralized DisplayAnti-interferenceServo Motor DriveLaser Protection
