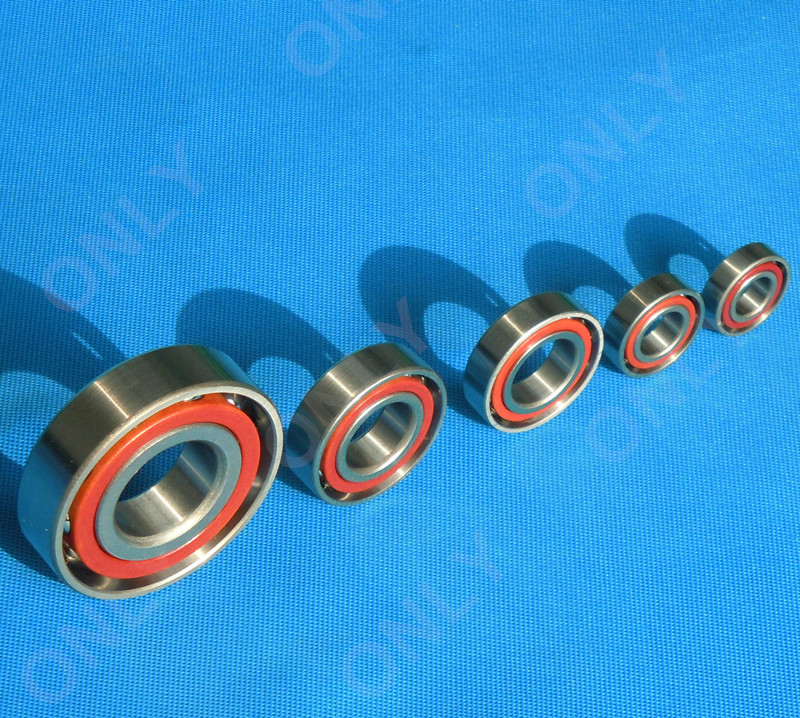

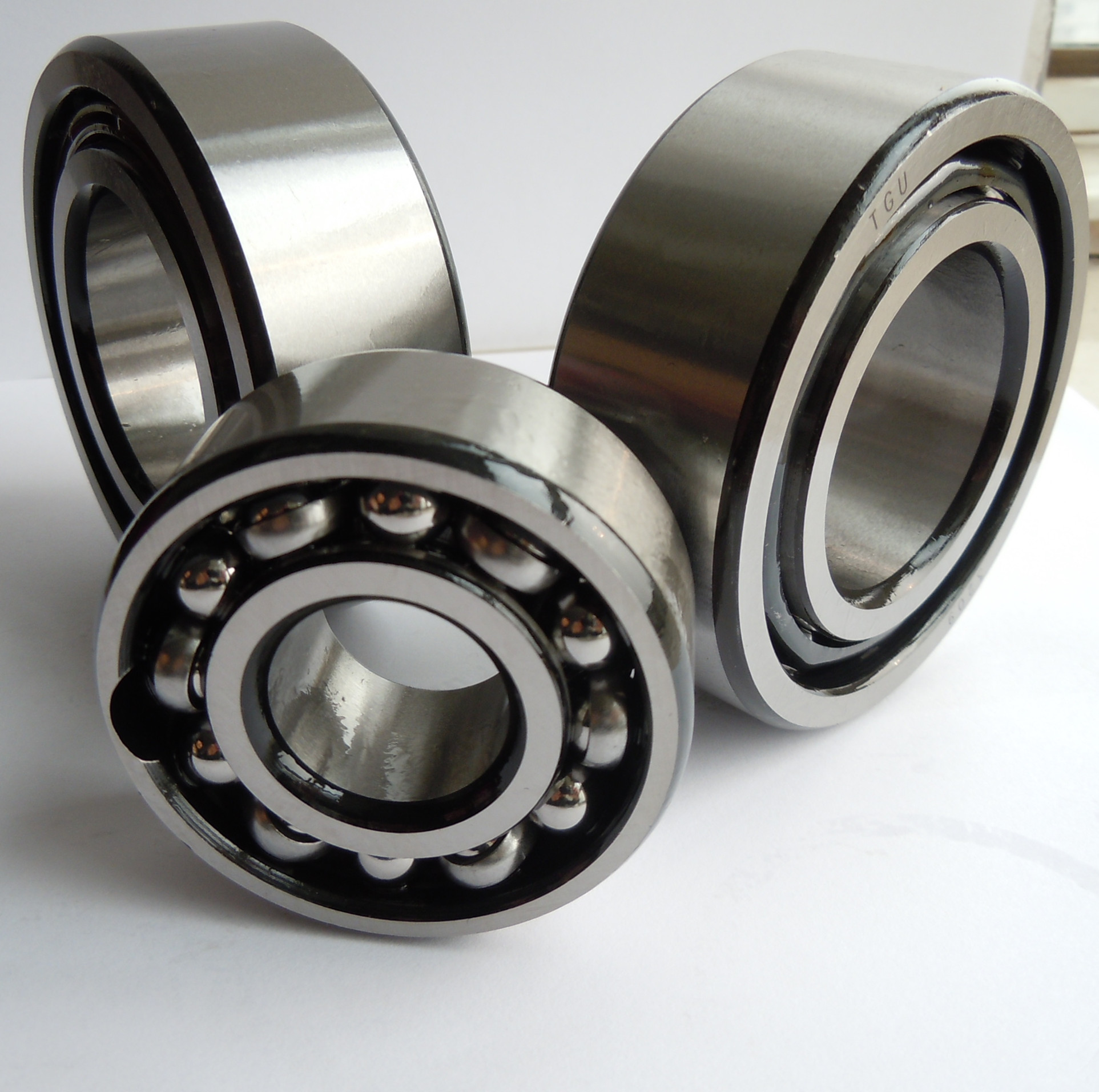

Angular Contact Ball Bearing
High-precision angular contact ball bearing designed for combined radial and axial loads. The bearing features precision-ground raceways and high-quality steel balls for smooth operation and extended service life.
Technical Specifications
Product Overview
Precision Angular Contact Bearings
These angular contact ball bearings are engineered to handle combined radial and axial loads with exceptional precision. By utilizing a specific contact angle between the steel balls and the raceways, these bearings ensure optimal load distribution and minimized friction. They are ideal for high-speed industrial applications, including machine tools and robotics, where smooth operation and extended service life are critical.
Technical Specifications
Available Contact Angles
| Angle | Notation |
|---|---|
| 15° | C |
| 25° | A5 |
| 30° | A |
| 40° | B |
- Load Handling
- Radial LoadAxial LoadCombined Load
Application Suitability
Typical Applications
- Machine Tools
- Robotics
- Pumps
- Precision Machinery
Performance Metrics
Performance Highlights
1
Precision Ground Surfaces
1
High Speed Capability
1
Reduced Heat Generation
