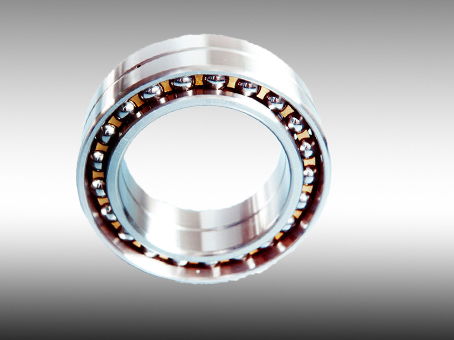

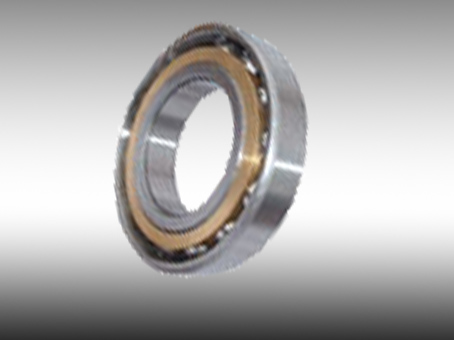

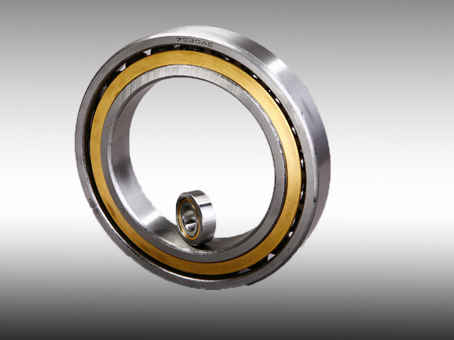

Angular Contact Ball Bearing for High-Speed Applications
This angular contact ball bearing is designed for high-speed applications and combined radial and axial loads. It features optimized internal geometry for enhanced load capacity and reduced friction.
Technical Specifications
Product Overview
High-Precision Angular Contact Ball Bearings
These 70 Series angular contact ball bearings are engineered for high-speed applications requiring exceptional reliability and accuracy. Manufactured to P4 and P2 precision classes, they are optimized for demanding environments such as machine tool spindles, metallurgy, and aviation. Their specialized design ensures superior performance under combined radial and axial loads.
- Certifications
- ISO 9001:2000
Technical Specifications
Available Contact Angles
15º25º
Dimensional and Performance Table
| Model | Inner (mm) | Outer (mm) | Height (mm) |
|---|---|---|---|
| 7003 | 17 | 35 | 10 |
| 7004 | 20 | 42 | 12 |
| 7005 | 25 | 47 | 12 |
| 7006 | 30 | 55 | 13 |
| 7007 | 35 | 62 | 14 |
| 7008 | 40 | 68 | 15 |
| 7009 | 45 | 75 | 16 |
| 7010 | 50 | 80 | 16 |
| 7011 | 55 | 90 | 18 |
| 7012 | 60 | 95 | 18 |
| 7013 | 65 | 100 | 18 |
| 7014 | 70 | 110 | 20 |
| 7015 | 75 | 115 | 20 |
| 7016 | 80 | 125 | 22 |
| 7017 | 85 | 130 | 22 |
- Cage Material
- Bakelite
Applications
Primary Industries
- Machine Tools
- Metallurgy
- Aviation
- Automotive
- Railways
