86HS Series 1.8 Degree Hybrid Stepper Motor
This hybrid stepper motor combines permanent magnet and reactive designs. It offers high torque, speed, and resolution for accurate motion control.
Technical Specifications
Overview

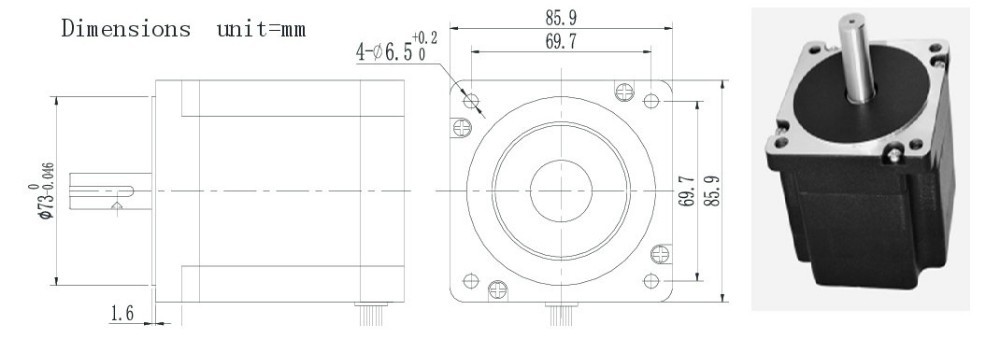

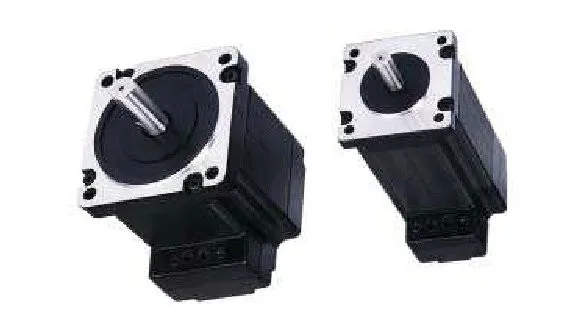

86HS Series Hybrid Stepper Motor
The 86HS series is a high-performance 2-phase hybrid stepper motor designed for precise motion control in demanding industrial environments. Featuring a 1.8-degree step angle, these motors offer excellent resolution, torque, and smooth operation across a wide speed range. Engineered for reliability, they incorporate robust bearing systems and are suitable for applications ranging from CNC machinery and robotics to medical and semiconductor equipment.
Technical Specifications
Performance Metrics
1.8 °
Step Angle
2
Phase Count
80 °C
Max Temperature Rise
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Step Angle Accuracy | ±5% (Full step, no load) |
| Resistance Accuracy | ±10% |
| Insulation Class | B (130°C) |
| Insulation Resistance | 100 MΩ min (500VDC) |
| Dielectric Strength | 500VAC (1 min, 5mA) |
- Operating Environment
- -20°C to +50°C
Model Variants
Standard Series Specifications
| Model | Length (mm) | Current (A) | Holding Torque (N.cm) |
|---|---|---|---|
| 34HS1401-01 | 76 | 5.6 | 420 |
| 34HS3401-01 | 114 | 5.6 | 812 |
| 34HS3801-01 | 114 | 2.8 | 850 |
Applications
- Common Applications
- CNC MachinesRoboticsIndustrial AutomationPrinting EquipmentMedical EquipmentSemiconductor EquipmentTextile Machinery
