35HS Series 1.8 Degree Hybrid Stepper Motor
This hybrid stepper motor has a 1.8-degree step angle. It is suitable for applications requiring precise motion control.
Technical Specifications
Overview
35HS Series Hybrid Stepper Motor
The 35HS series 1.8-degree hybrid stepper motor combines the best characteristics of permanent magnet and reactive motor technologies. Designed for precision, this motor offers exceptional torque, speed, and positioning resolution. Its compact 35mm frame size and robust construction make it an ideal choice for space-constrained industrial automation, robotics, and precision instruments.
Key Features
Typical Applications
- Industrial automation
- Robotics
- CNC machines
- 3D printing
- Medical equipment
- Semiconductor manufacturing
- Textile machinery
- Certifications
- CCCCEISO
Performance Parameters
Operating Characteristics
1.8 °
Step Angle
80 °C
Max Temperature Rise
100 MΩ
Min Insulation Resistance
General Specifications
| Parameter | Value |
|---|---|
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Ambient Temperature | -20°C to +50°C |
| Dielectric Strength | 500VAC (1 min) |
| Insulation Class | B (130°C) |
| Direction | CW |

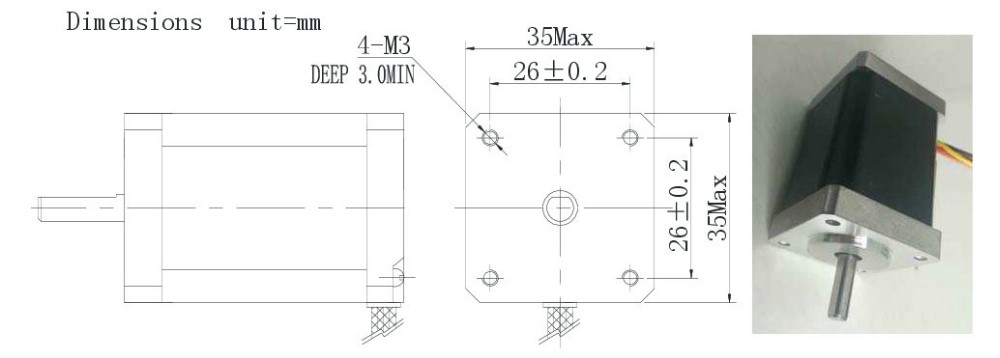

Physical Dimensions
- Frame Size
- 35mm x 35mm
- Mounting Details
- 4 x M3 holes, 26mm hole spacing
