60mm 1.8° Stepper Motor
This stepper motor has a 60mm frame size and a 1.8° step angle. It is designed for precise positioning and motion control applications.
Technical Specifications
General Overview
Precision 60mm Stepper Motor
This high-precision 60mm frame size stepper motor features a 1.8-degree step angle, making it an excellent choice for demanding motion control and robotics applications. Built for industrial reliability, these units provide consistent holding torque and are compatible with standard constant current drive systems. The series includes multiple models with varying electrical characteristics to suit diverse automation requirements.
- Frame Size
- 60 mm
- Step Angle
- 1.8 °

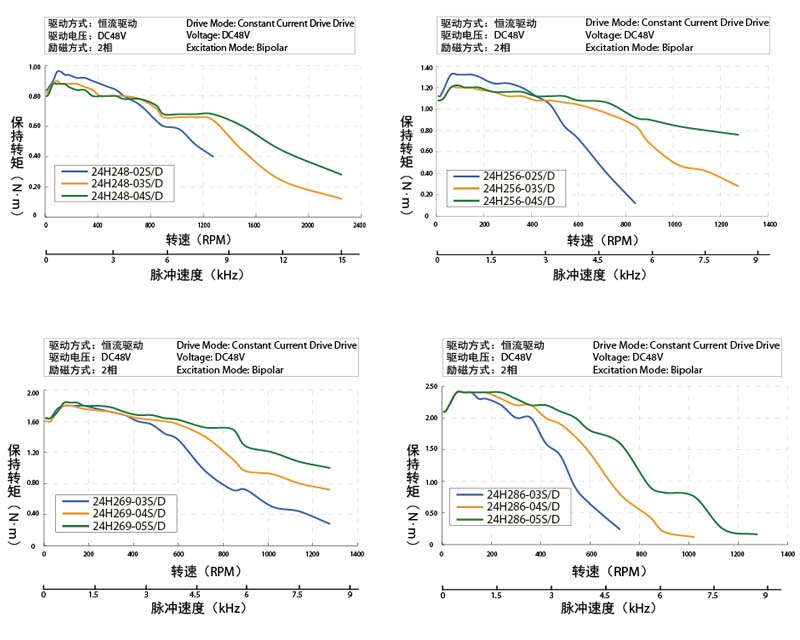

Performance Data
Model Specifications
| Model | Current (A) | Resistance (Ω) | Holding Torque (N.m) |
|---|---|---|---|
| 24H248-02S/D | 2 | 1.5 | 1.1 |
| 24H248-03S/D | 3 | 0.6 | 1.1 |
| 24H248-04S/D | 4 | 0.4 | 1.1 |
| 24H256-02S/D | 2 | 1.8 | 1.5 |
| 24H256-03S/D | 3 | 0.8 | 1.5 |
| 24H256-04S/D | 4 | 0.4 | 1.5 |
| 24H269-03S/D | 3 | 1 | 2.2 |
| 24H269-04S/D | 4 | 0.6 | 2.2 |
| 24H269-05S/D | 5 | 0.3 | 2.2 |
| 24H286-03S/D | 3 | 1.3 | 3 |
Physical Properties

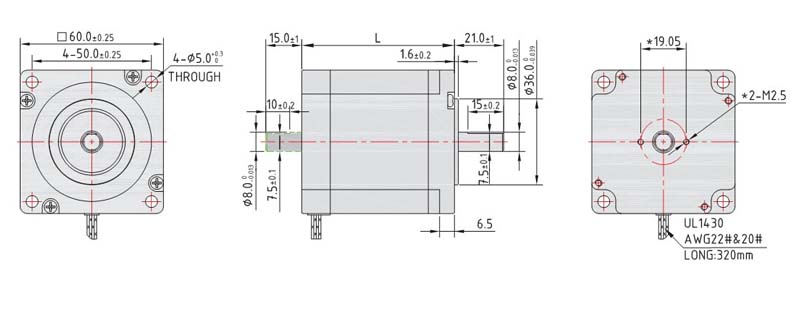

Mechanical Dimensions
- Square face: 60.0mm ±0.25mm
- Mounting holes: 4 x 5.0mm diameter
- Shaft diameters: 8.0mm and 36.0mm
- Wiring: UL1430 AWG22/20, length 320mm
- Rear mounting: 2 x M2.5 points
