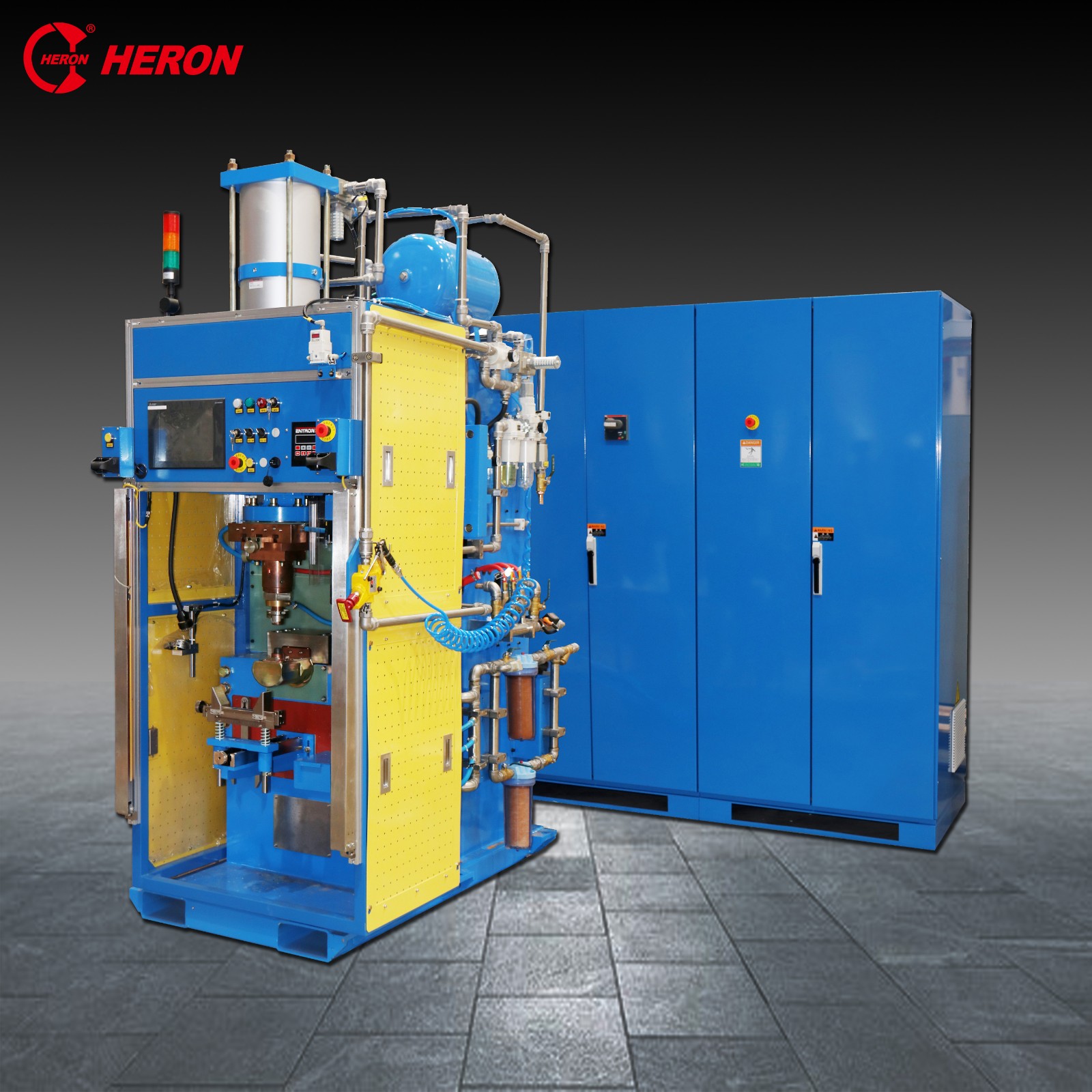

560KVA MFDC Resistance Spot Welder
The 560KVA MFDC welder is a robust machine designed for high-precision and efficient welding. It features a sophisticated control system and advanced pneumatic and hydraulic systems for precise clamping and welding force control.
Technical Specifications
Overview
Industrial High-Precision Welding
This 560KVA MFDC (Medium Frequency Direct Current) welder is engineered for high-volume production environments, specifically within the compressor industry. It features a sophisticated control system with an integrated HMI for precise parameter adjustment and monitoring, alongside advanced pneumatic and hydraulic systems for consistent clamping and welding force. Designed for reliability, the unit includes a modular structure for easy maintenance and integration into automated production lines.
Technical Specifications
- Rated Capacity
- 560 KVA
- Max Primary Current
- 290 A
- Max Short Circuit Current
- 111 KA
- Max Working Pressure
- 11.8 KN
- Power Supply
- 380V / 3Φ / 50Hz
Physical Dimensions
- Dimensions (LxWxH)
- 3386 x 2000 x 2630 mm
Features
Key Features
- Integrated HMI for parameter monitoring
- Advanced pneumatic and hydraulic clamping
- Modular design for automated integration
- Multi-cabinet power supply unit
- Safety interlocks and emergency stop systems
Application
Primary Industry

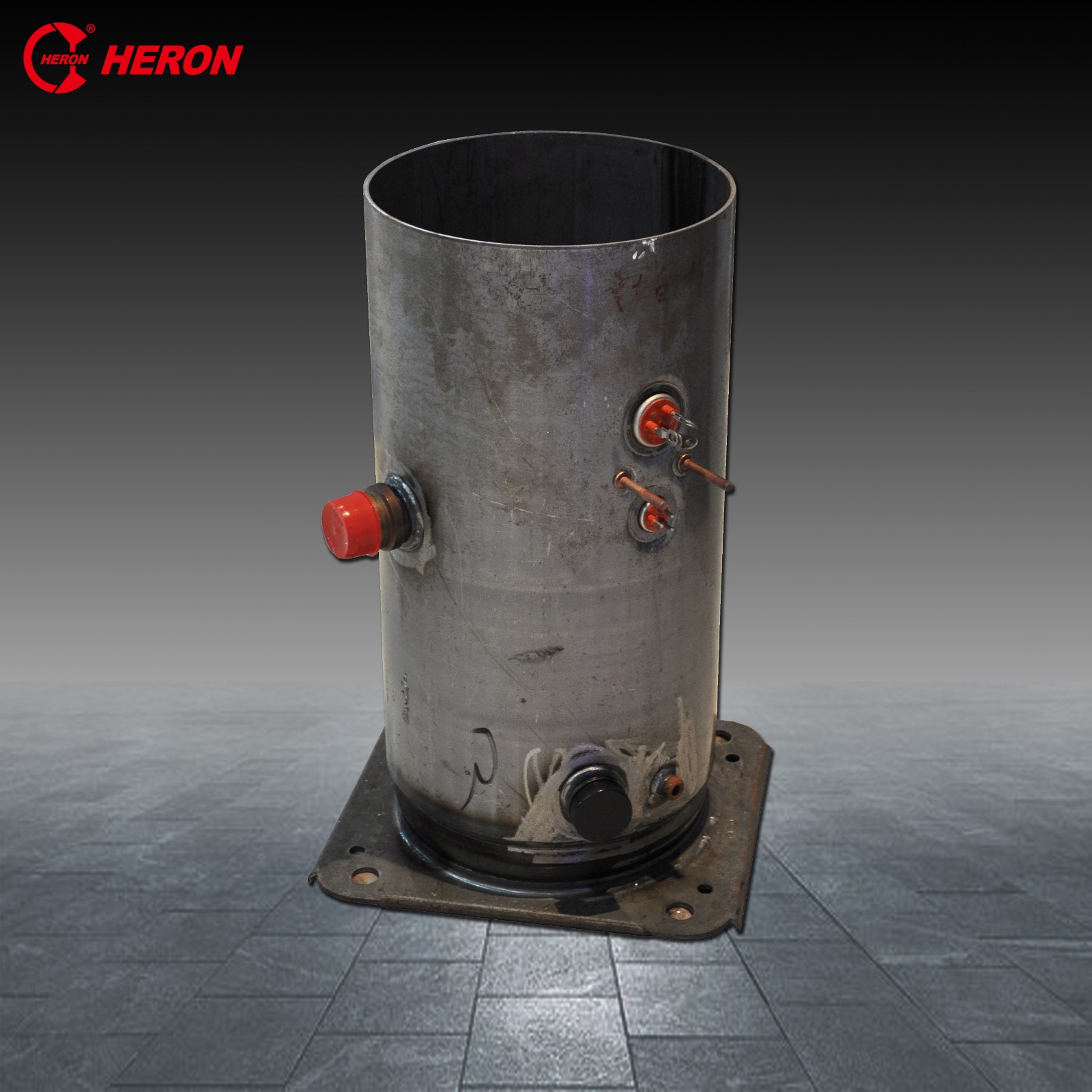

Compressor IndustryFusite Component Manufacturing
