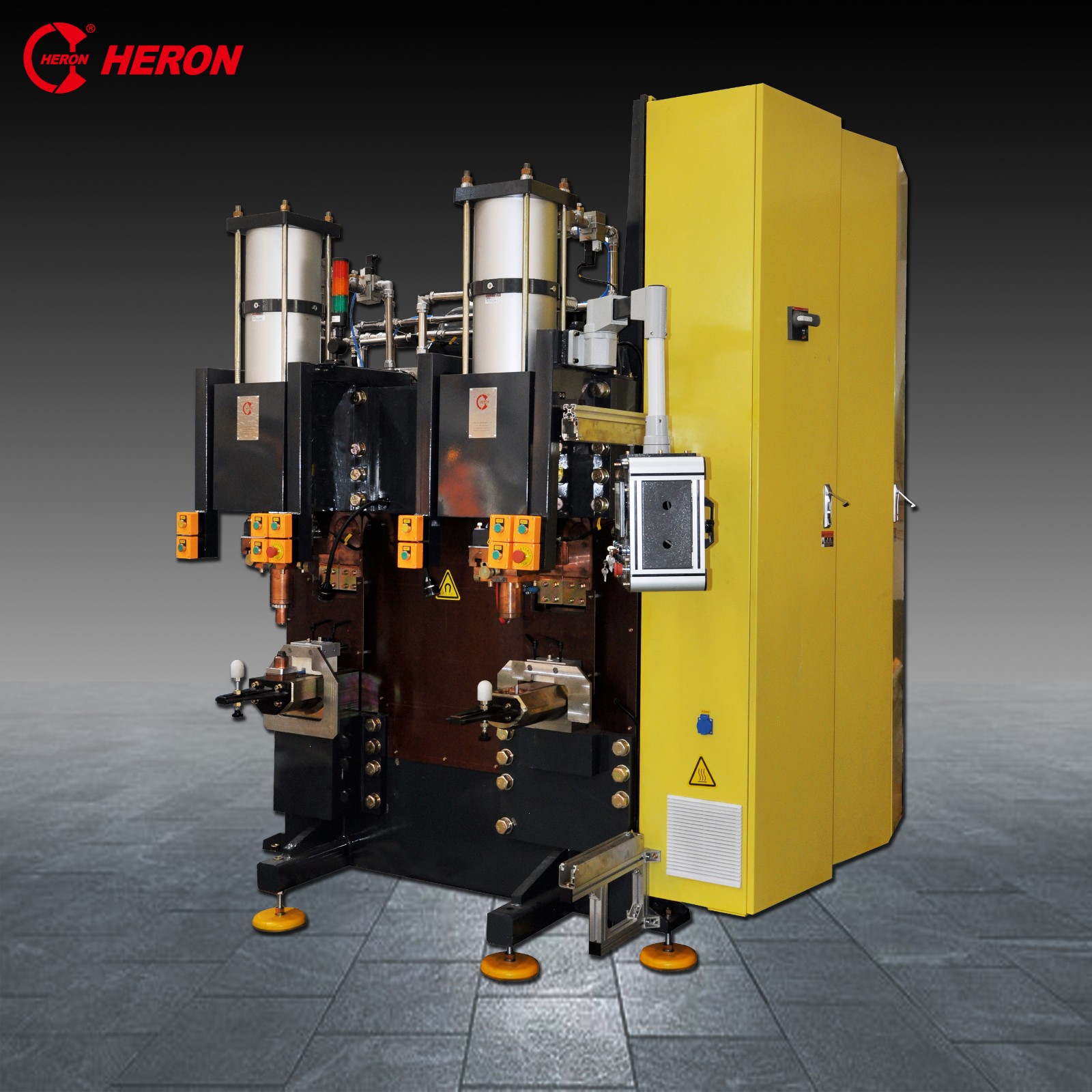

1250KVA MFDC Resistance Spot Welder
The 1250KVA MFDC welder is specifically designed for welding Fusite and suck pipe components. This machine utilizes medium frequency direct current (MFDC) technology to ensure high-quality and efficient welding processes.
Technical Specifications
Product Overview
High-Performance MFDC Welding Solution
This 1250KVA Medium Frequency Direct Current (MFDC) resistance spot welder is engineered specifically for the demanding requirements of the compressor industry. It is optimized for precision welding of fusite and suck pipe components, ensuring consistent quality and structural integrity. The system features a robust, industrial-grade design with dual welding heads and pneumatic controls for reliable, high-volume production environments.
Technical Specifications
- Rated Capacity
- 1250 KVA
- Power Supply
- 380V / 3Φ / 50Hz
- Max Short Circuit Current
- 116 KA
- Max Working Pressure
- 42.5 KN
- Dimensions (L x W x H)
- 2095 x 2283 x 2788 mm
Features & Construction
Key Design Features
- Dual welding heads
- Pneumatic cylinders for precise pressure control
- Adjustable feet for stability
- Yellow safety enclosure for electrical components
Safety Systems
Emergency StopWarning LabelsEnclosed Electrical Systems
- Welding Technology
- MFDCResistance Spot Welding
Application
- Primary Industry
- Compressor Manufacturing
- Suitable Components
- FusiteSuck Pipe
