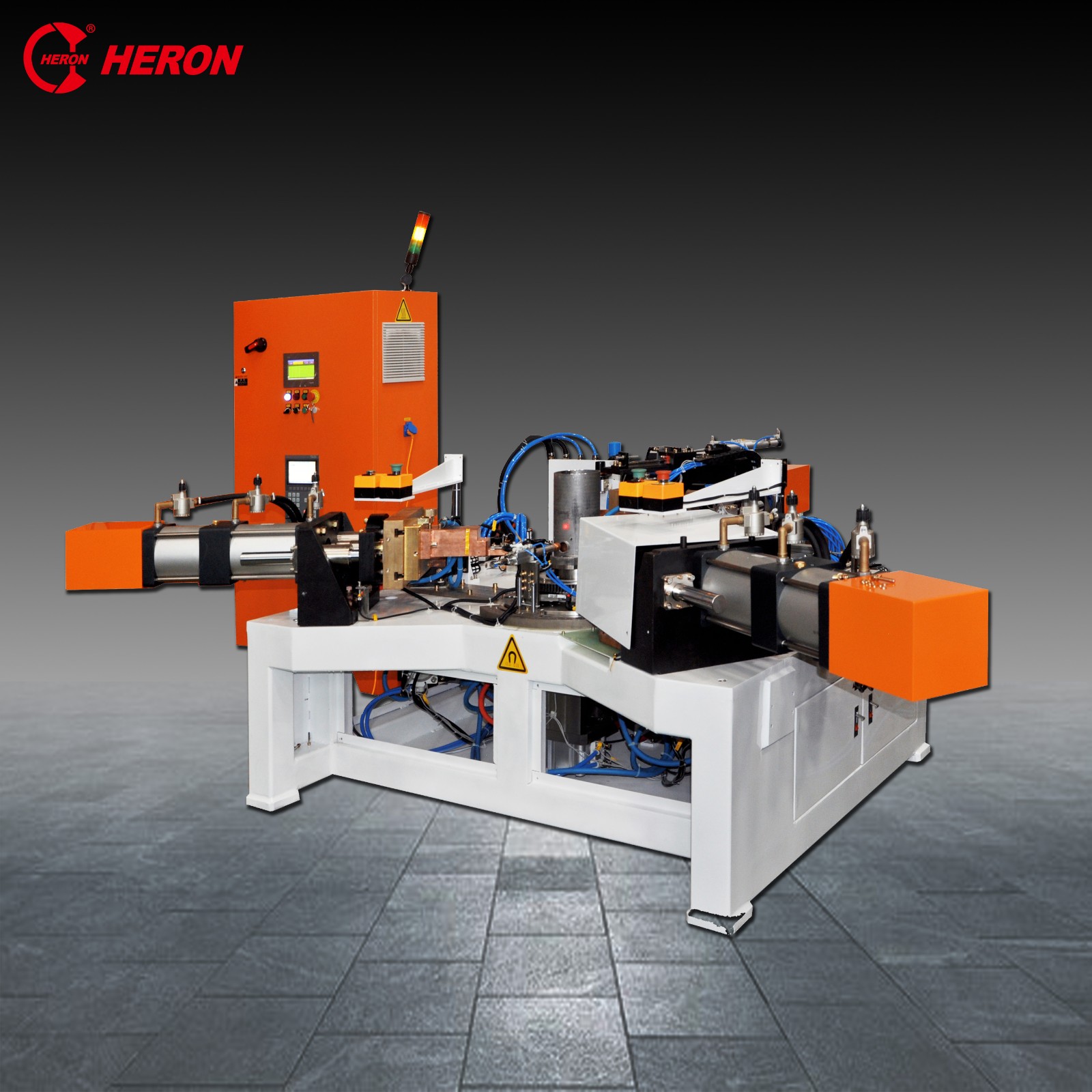

220KVA MFDC Resistance Spot Welder
The 220KVA MFDC welder is designed for welding base legs. It utilizes MFDC technology to provide precise and efficient welding performance.
Technical Specifications
Overview
High-Efficiency MFDC Welding Solution
This 220KVA Medium Frequency Direct Current (MFDC) resistance spot welder is engineered specifically for high-precision welding applications, particularly in the compressor industry for base leg assembly. Utilizing advanced MFDC technology, the system delivers consistent weld quality, reduced spatter, and superior energy efficiency compared to traditional welding methods. Designed for industrial manufacturing environments, it features robust pneumatic clamping and automated positioning to ensure reliable, high-volume production.
Technical Specifications
Rated Capacity
220 KVA
Rated Capacity
- Power Supply
- 380V / 3Φ / 50Hz
- Max Primary Current
- 100 A
- Max Short Circuit Current
- 40 KA
- Max Working Pressure
- 11.8 KN
Dimensions & Build
- Dimensions (LxWxH)
- 2473 x 1600 x 1126 mm
Features
Key Features
- MFDC technology for energy efficiency
- Pneumatic cylinders for automated clamping
- Integrated control panel for precise parameter adjustments
- Safety-enclosed design with warning indicators
- Sturdy base construction for operational stability
