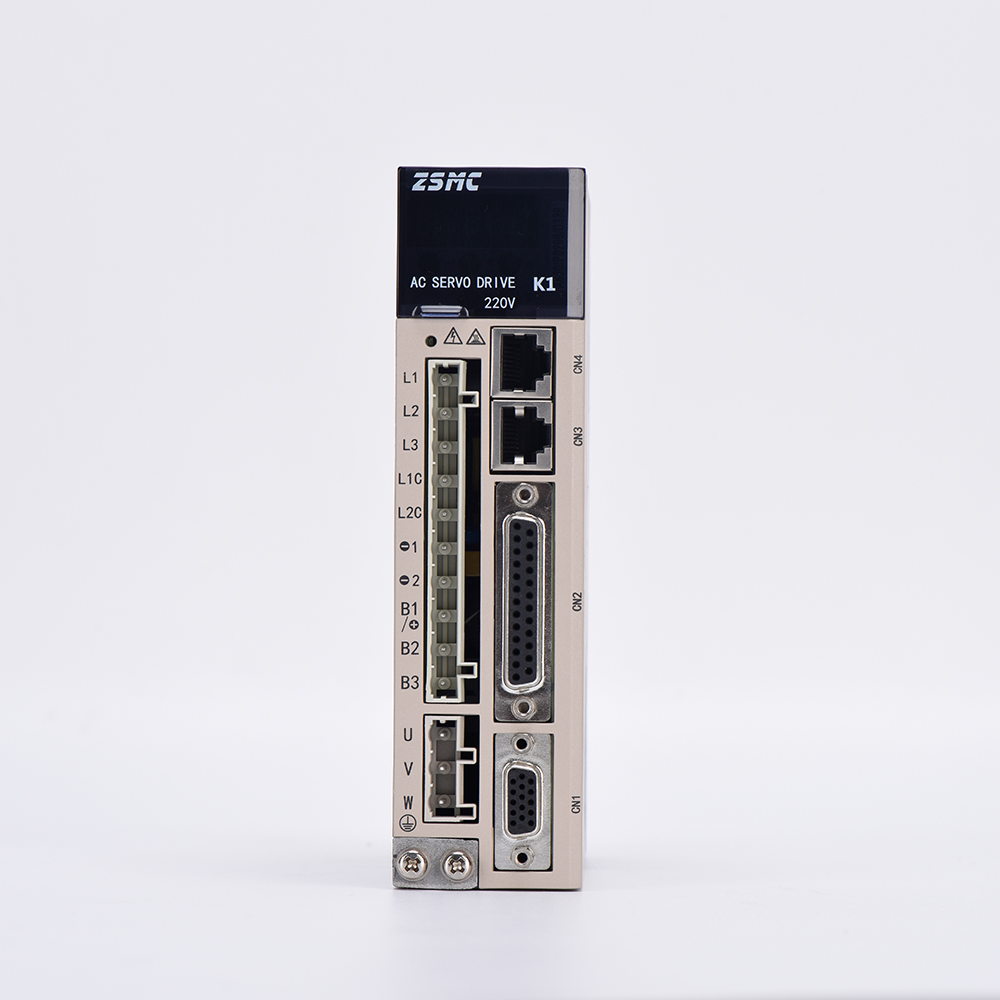

1500W AC Servo Motor for Precision Motion Control
This 1500W AC servo motor is designed for precision motion control in industrial applications. It features intelligent functions such as internal position mode for multi-path planning and automatic load inertia determination.
Technical Specifications
Product Overview

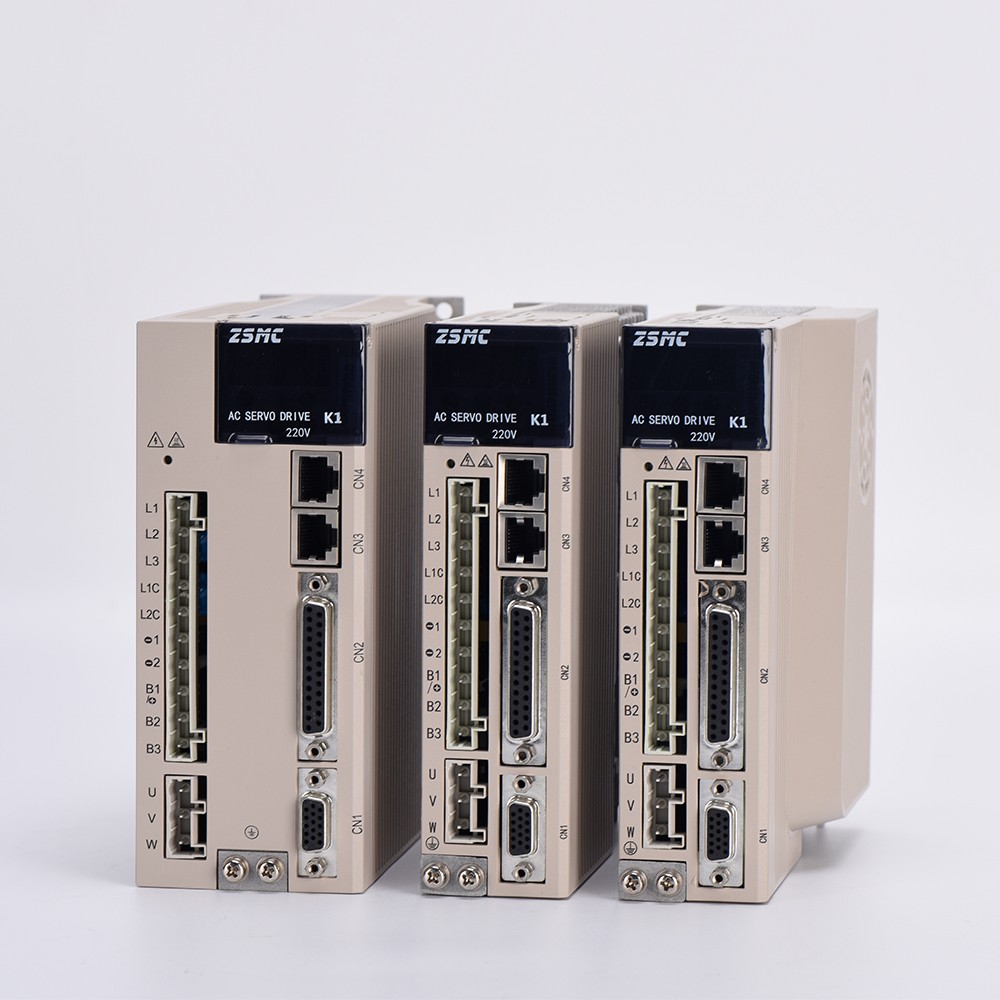

High-Performance 1500W Servo System
This advanced 1500W AC servo drive provides precision motion control for industrial automation, robotics, and CNC machinery. It features intelligent load inertia determination and multi-path position planning to optimize commissioning time and motion accuracy. Designed for stability, the system incorporates adjustable mechanical resonance filters and frictional torque compensation to ensure smooth operation even at low speeds.
Technical Performance
- Rated Power
- 1500 W
- Overload Capacity
- Up to 3 times rated torque
- Control Modes
- PositionSpeedTorqueMulti-path Planning
Communication and Integration
I/O Configuration
- 4 Digital Inputs (optocoupler isolated)
- 3 Digital Outputs (optocoupler isolated)
- 2 Analog Differential Inputs (±10V)
- 1 Analog Single-ended Input (0-10V)
- Supported Bus Protocols
- CANopenModbus
Key Features
Intelligent Features
- Automatic load inertia identification
- Mechanical resonance frequency analysis (50-5000Hz)
- Frictional torque compensation
- One-button calibration support
Operating Conditions
Operating Parameters
45 °C
Max Operating Temp
1,000 m
Max Altitude
85 %RH
Max Humidity
