Wood Cutting Circular Saw Blade
This circular saw blade is specifically designed for cutting wood. It is suitable for use with solid wood, plywood, and MDF.
Technical Specifications
Product Overview
High-Performance Wood Cutting Blades
These professional-grade circular saw blades are engineered for precision and durability in woodworking applications. Designed to be compatible with various angle grinders and cutters, they deliver smooth and accurate cuts across a wide range of materials including solid wood, plywood, and MDF. With options ranging from 105mm to 500mm, these blades are optimized for consistent performance across different rotary speeds and workload requirements.
Technical Specifications
Key Performance Metrics
120 T
Max Tooth Count
8,000 rpm
Max Rotary Speed
500 mm
Max Outer Diameter
- Compatible Materials
- Solid WoodPlywoodMDF
Size & Configuration Data
Available Blade Configurations

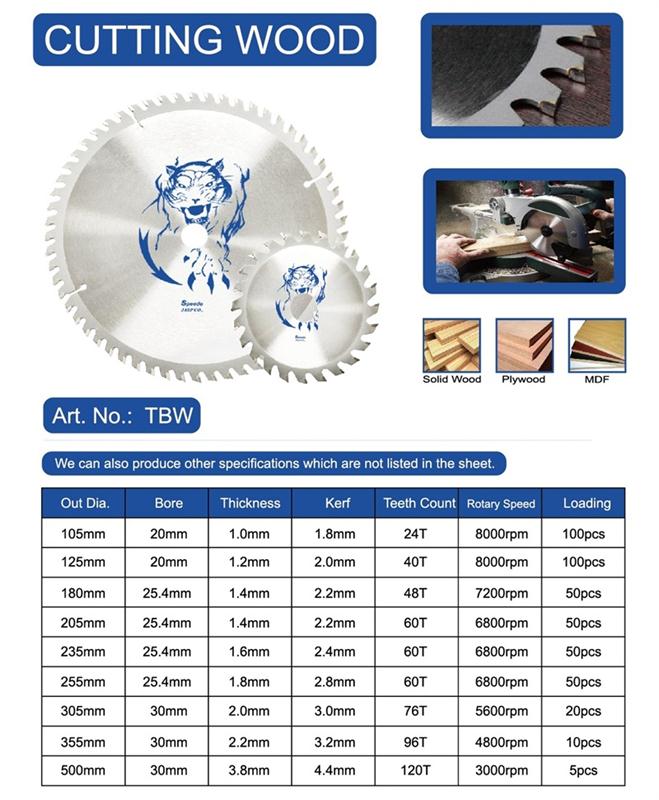

| Out Dia. (mm) | Bore (mm) | Thickness (mm) | Kerf (mm) | Teeth | Speed (rpm) |
|---|---|---|---|---|---|
| 105 | 20 | 1 | 1.8 | 24T | 8,000 |
| 125 | 20 | 1.2 | 2 | 40T | 8,000 |
| 180 | 25.4 | 1.4 | 2.2 | 48T | 7,200 |
| 205 | 25.4 | 1.4 | 2.2 | 60T | 6,800 |
| 235 | 25.4 | 1.6 | 2.4 | 60T | 6,800 |
| 255 | 25.4 | 1.8 | 2.8 | 60T | 6,800 |
| 305 | 30 | 2 | 3 | 76T | 5,600 |
| 355 | 30 | 2.2 | 3.2 | 96T | 4,800 |
| 500 | 30 | 3.8 | 4.4 | 120T | 3,000 |
Logistics
- Loading Capacity Range
- 5pcs to 100pcs
