Wire-Braided Hydraulic Hose

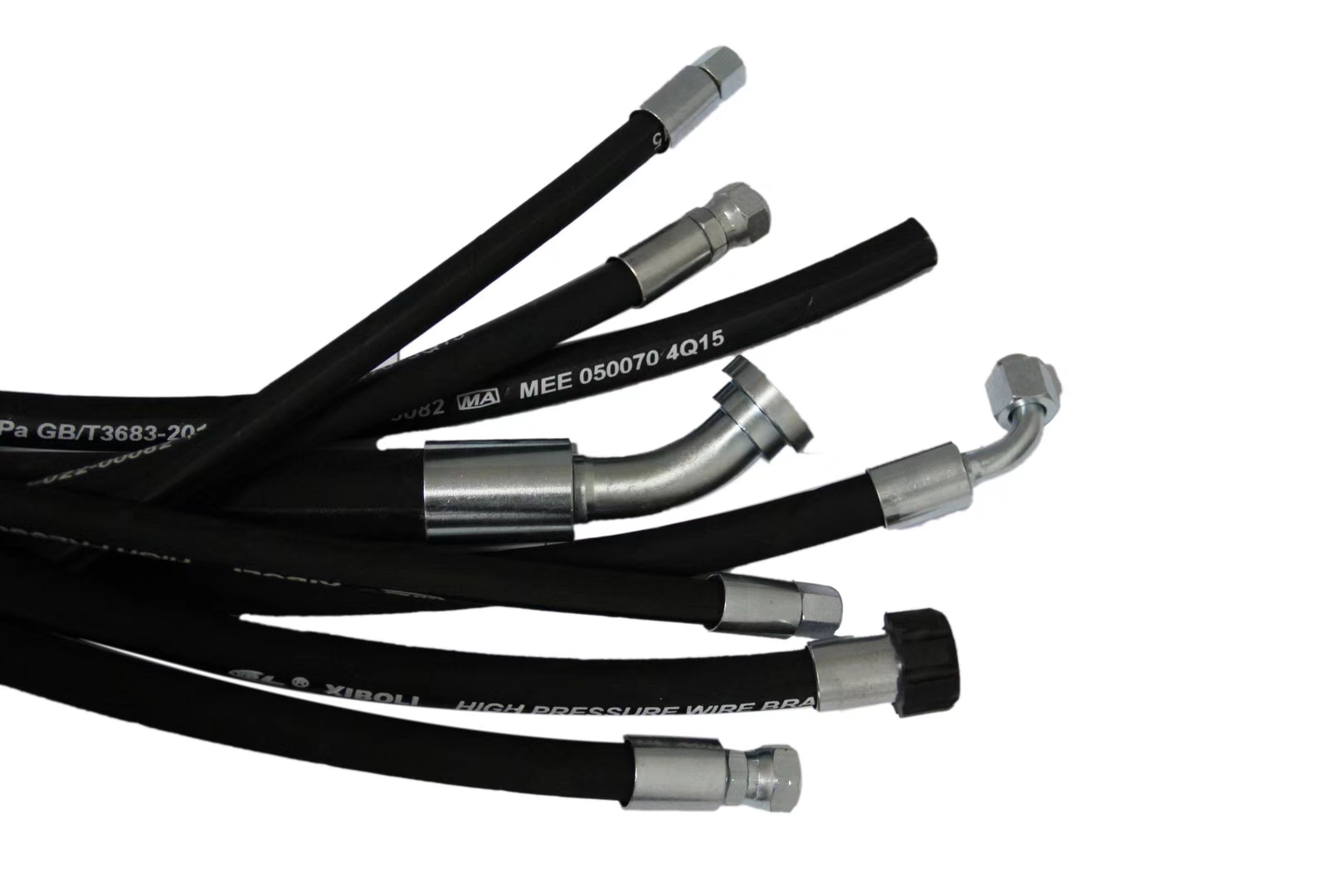

This high-pressure hydraulic hose is constructed with wire-braided reinforced rubber, capable of withstanding extreme pressures and temperatures. It features crimped-on steel fittings for secure and leak-proof connections, ideal for hydraulic systems requiring reliable fluid transfer.
Technical Specifications
Product Overview
High-Performance Wire-Braided Hydraulic Hose
This high-pressure wire-braided hydraulic hose is engineered for demanding industrial and agricultural applications. Designed to transport a wide range of fluids including hydraulic oil, fuel oil, lubricants, emulsions, and glycol, it ensures reliable performance under extreme conditions. The robust construction supports a broad operating temperature range, with specialized options available for cold-resistant requirements.
Technical Specifications
- Available Hose Series
- R1R21SN2SN4SP4SHR9R10R12R13R15
- Standard Operating Temperature
- -40°C to +120°C
- Cold Resistant Variant
- -55°C
Compatibility
Compatible Fluids
- Hydraulic oil
- Fuel oil
- Lubricants
- Emulsion
- Glycol
- Water
Performance Data
Performance Examples
35 MPa
Working Pressure (4SP-31.5)
44.5 MPa
Working Pressure (4SP-10)
Compliance
Regulatory Standards
GB/T3683-20GB/T10544-2003MT/T98-2006XK13-03
