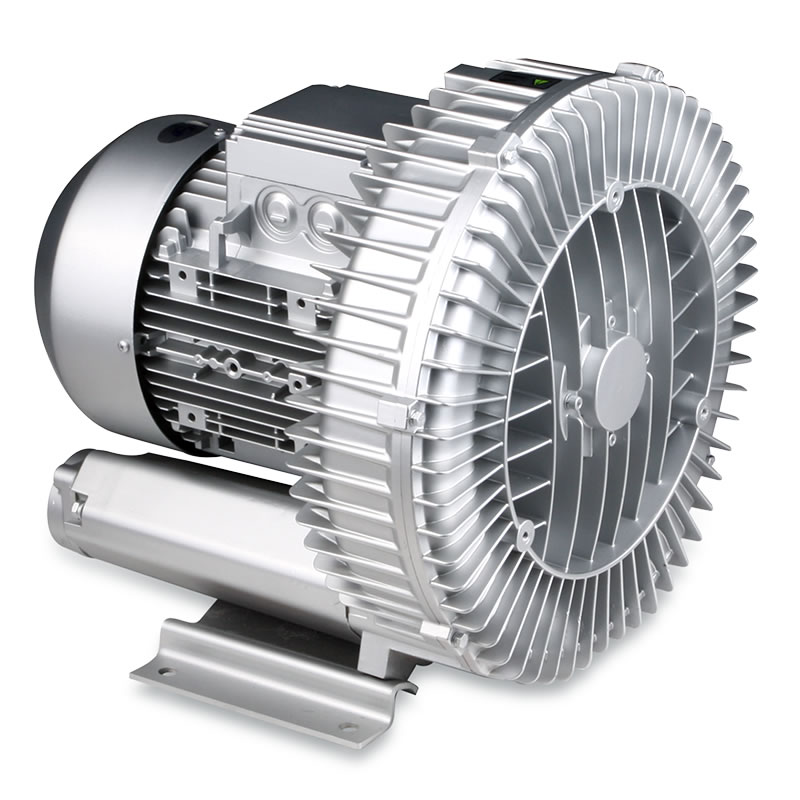

Whirlwind Air Pump
This air pump provides a medium pressure, high flow rate air source. It is oil-free, water-free, and designed for quiet operation, ease of service, and energy efficiency.
Technical Specifications
Overview
High-Performance Spiral Air Pump
This series of spiral air pumps is engineered as a medium-pressure, high-flow rate air source solution for industrial applications. Designed with a robust aluminum alloy construction, these units offer excellent heat dissipation and corrosion resistance, ensuring reliable operation in demanding environments. The system is oil-free, water-free, and quiet, providing an energy-efficient solution for pneumatic conveying, wastewater treatment, and general industrial processes.
Key Features
- Key Features
- Oil-freeWater-freeQuiet OperationEnergy SavingEasy MaintenanceCorrosion Resistant
Technical Specifications
Performance & Model Specifications
| Model | Power (W) | Pressure (kPa) | Output (m³/h) | Weight (kg) |
|---|---|---|---|---|
| PG-120 | 120 | 7.5 | 21 | 6 |
| PG-370 | 370 | 15 | 64 | 10 |
| PG-750 | 750 | 24 | 120 | 15.5 |
| PG-1100 | 1,100 | 28 | 180 | 20 |
| PG-3000 | 3,000 | 42 | 290 | 36 |
| PG-5500 | 5,500 | 50 | 520 | 55 |
| PG-11000 | 11,000 | 65 | 1,050 | 112 |
| PG-18000 | 18,000 | 80 | 1,050 | 130 |
Supported Voltages
- 220V/50Hz
- 380V/50Hz
