Welding Workpiece Positioner

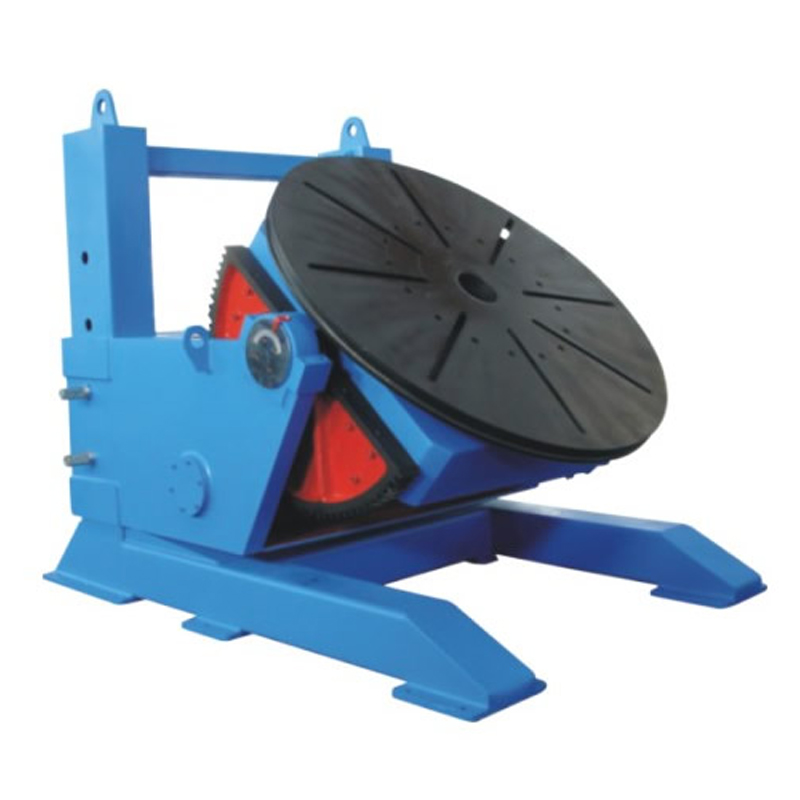

Welding positioners are used for welding, holding, and assembling complex workpieces. These are assistance devices for the steel structure manufacturing industry, especially for small chemical vessel manufacturing.
Technical Specifications
Overview

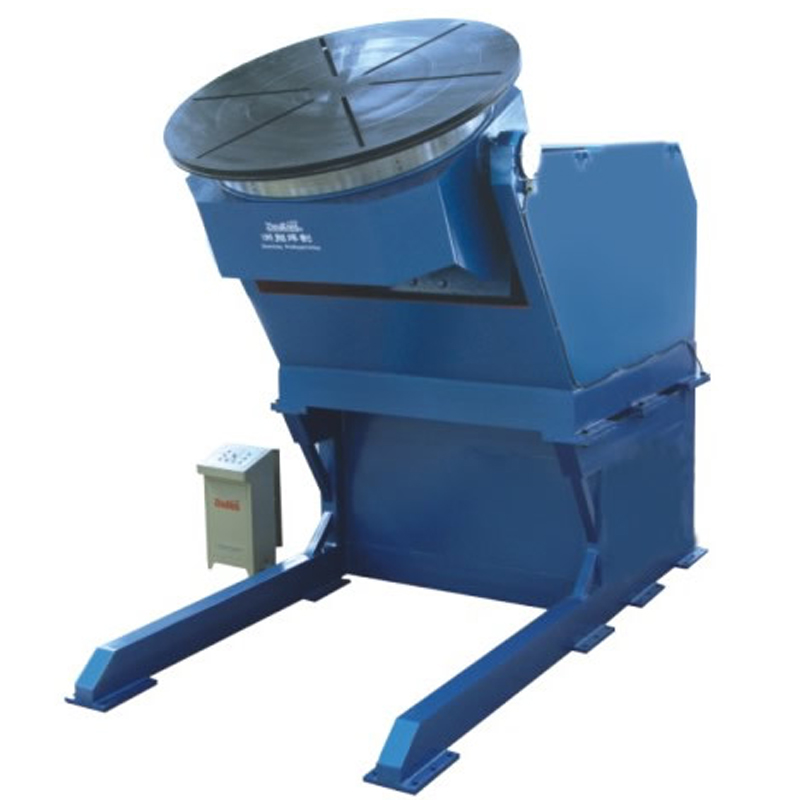

Industrial Welding Positioner HBZ Series
The HBZ series welding positioner is a specialized assistance device engineered for the efficient rotation and tilting of complex workpieces. By providing stepless speed regulation and precise angular adjustment, it allows welders to position materials optimally for superior weld quality and safety. This compact, robust unit is essential for heavy steel structure manufacturing, pressure vessel production, and semi-automatic or fully automatic welding lines.
Key Performance Metrics
Performance Metrics
30 tons
Max Load Weight
3,000 mm
Table Diameter
120 degrees
Max Overturning Angle
Technical Specifications
Operational Speeds
| Parameter | Range |
|---|---|
| Rotation Speed | 0.05-0.5 rpm |
| Overturning Speed | 0.1 rpm |
Mechanical Limits
- Max Eccentricity: 200mm
- Max Distance of Center of Gravity: 650mm
- Max Rotating Diameter at 90°: 4200mm
Power and Control
Motor Power
- Rotation Motor: 7.5 KW
- Turning Motor: 11 KW
- Control Features
- AC ConverterStepless Speed RegulationFrequency Conversion
