Welding Electrodes
Welding electrodes are designed for general purpose welding applications and are suitable for both AC and DC welding processes. These electrodes provide a stable arc, low spatter, and excellent weld bead appearance, making them suitable for various welding positions and materials.
Technical Specifications
Product Overview

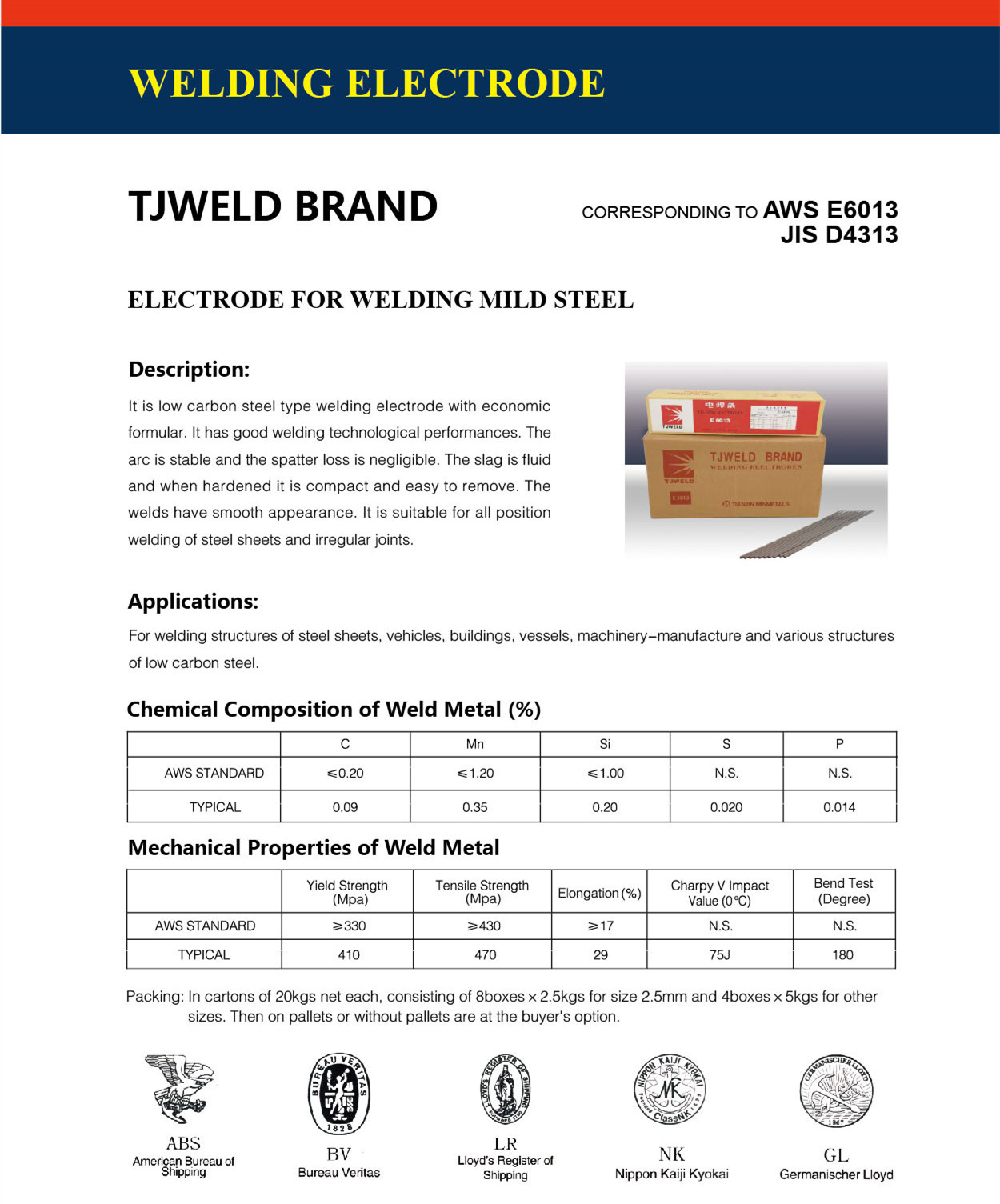

High-Performance Mild Steel Welding Electrode
This low carbon steel welding electrode is engineered for exceptional welding technological performance across all positions. It features a stable arc with minimal spatter loss and creates a compact, easily removable slag. The resulting welds exhibit a smooth, high-quality appearance suitable for diverse industrial structures.
Technical Specifications
Recommended Amperage
130 A
Flat Welding Max
120 A
Vertical Up Max
- Standards Compliance
- AWS E6013JIS D4313ISO 9001:2000
Chemical Composition
Typical Chemical Composition
| Element | Typical (%) |
|---|---|
| Carbon (C) | 0.09 |
| Manganese (Mn) | 0.35 |
| Silicon (Si) | 0.2 |
| Sulfur (S) | 0.02 |
| Phosphorus (P) | 0.014 |
Mechanical Properties
Typical Mechanical Properties
- Yield Strength: 410 Mpa
- Tensile Strength: 470 Mpa
- Elongation: 29%
- Charpy V Impact (0°C): 75J
- Bend Test: 180 Degrees
Logistics and Handling
- Handling Precautions
- Yes

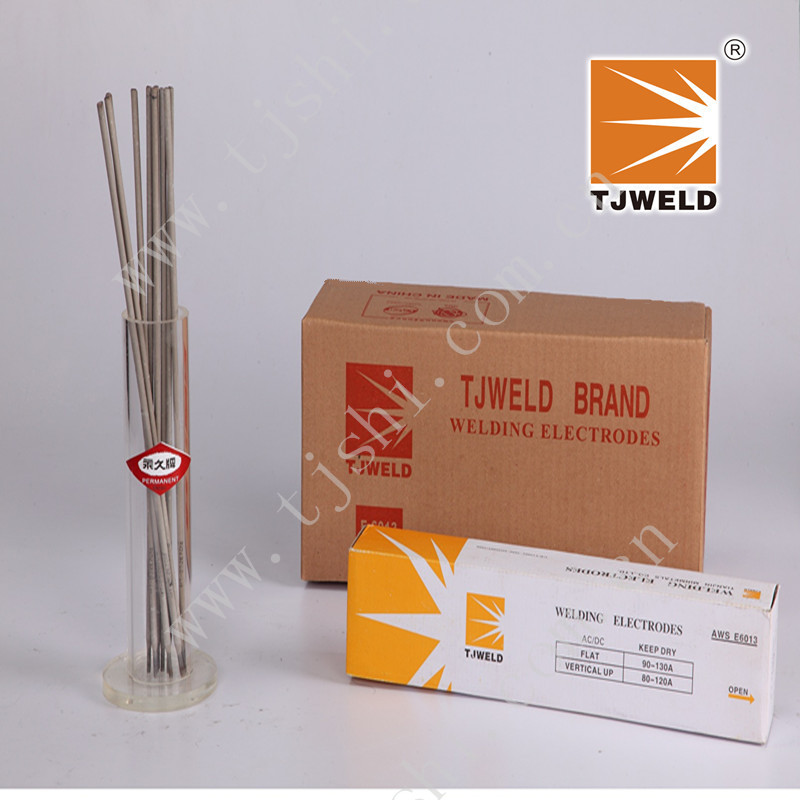

- Standard Packaging
- 20kg net cartons (8 x 2.5kg boxes for 2.5mm size; 4 x 5kg boxes for others). Palletized or non-palletized delivery options available.
