Waterproof Push Button Switch for Elevators
This waterproof push button switch is designed for elevator applications. It features a convex head and supports both normally open and normally closed configurations.
Technical Specifications
Product Overview
Professional Elevator Push Button Switch

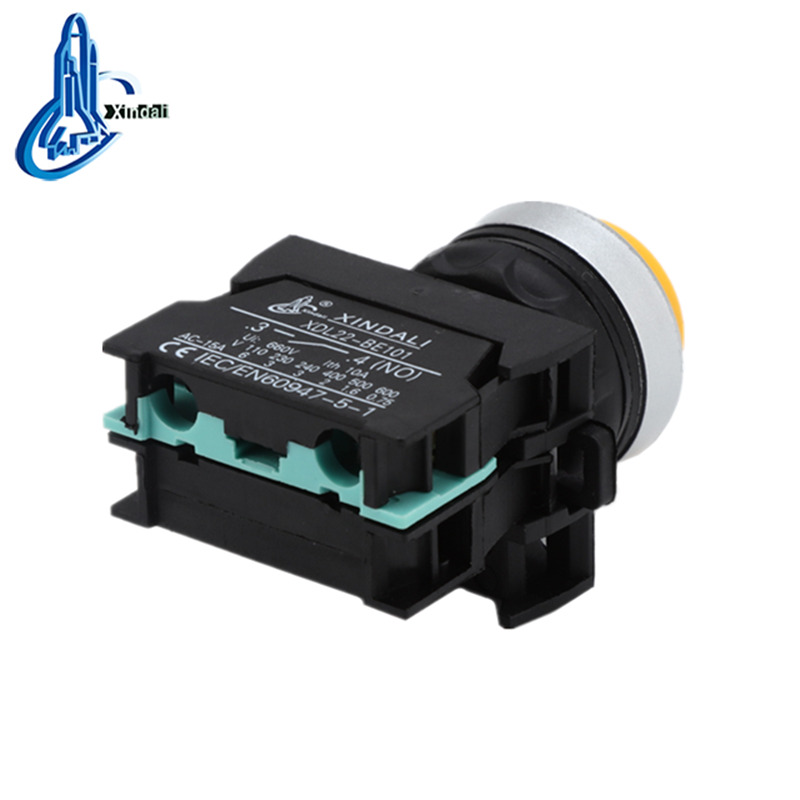

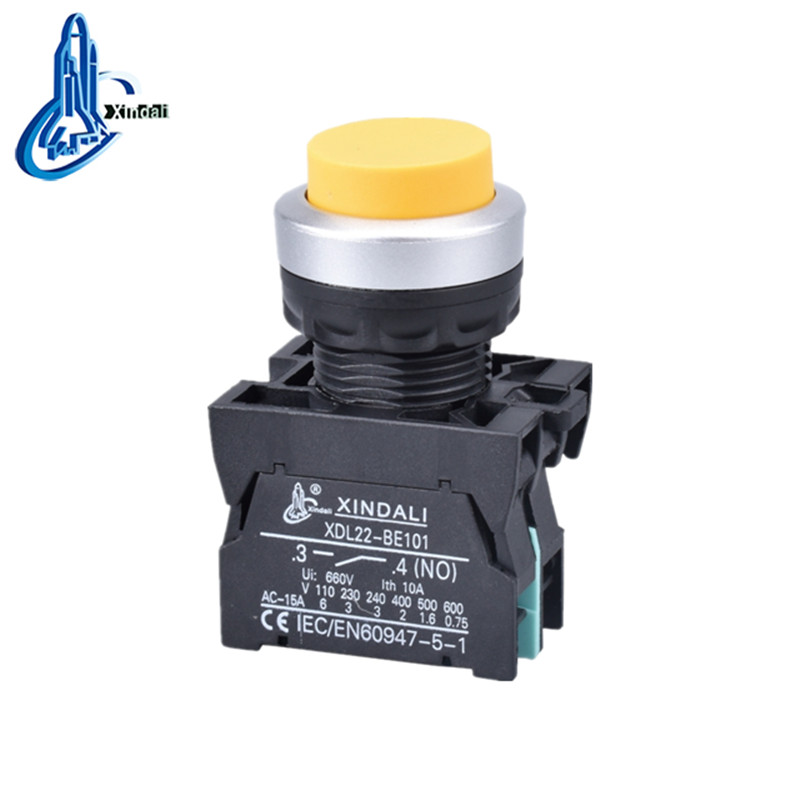

The XDL22-CL51 is a high-performance, waterproof push button switch engineered for demanding industrial environments and elevator control systems. Designed with a convex head and robust construction, it ensures reliable signal and interlocking functionality in AC circuits up to 660V. This series is fully certified for international safety standards, offering versatility with both normally open and normally closed configurations.
Technical Specifications
Featured Electrical Metrics
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current (Ith)
- Certifications
- CEISO 9001ROHSULIEC 60947-5-1
Environmental Performance
Ambient Conditions
- Operating temperature: -5°C to +55°C
- Storage temperature: -25°C to +70°C
- Humidity: 35-85% RH
- Pollution grade: 3
Protection Grade
IP65IP66IP67IP68

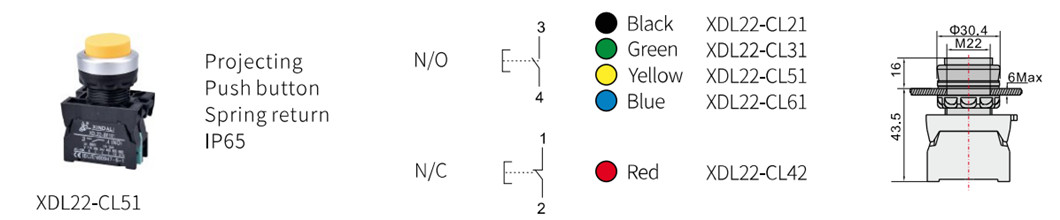

Mechanical Details
Mechanical Specs
| Metric | Value |
|---|---|
| Mounting Thread | M22 |
| Fastening Torque | 0.8Nm (Max 1.2Nm) |
| Panel Thickness | Max 6mm |
