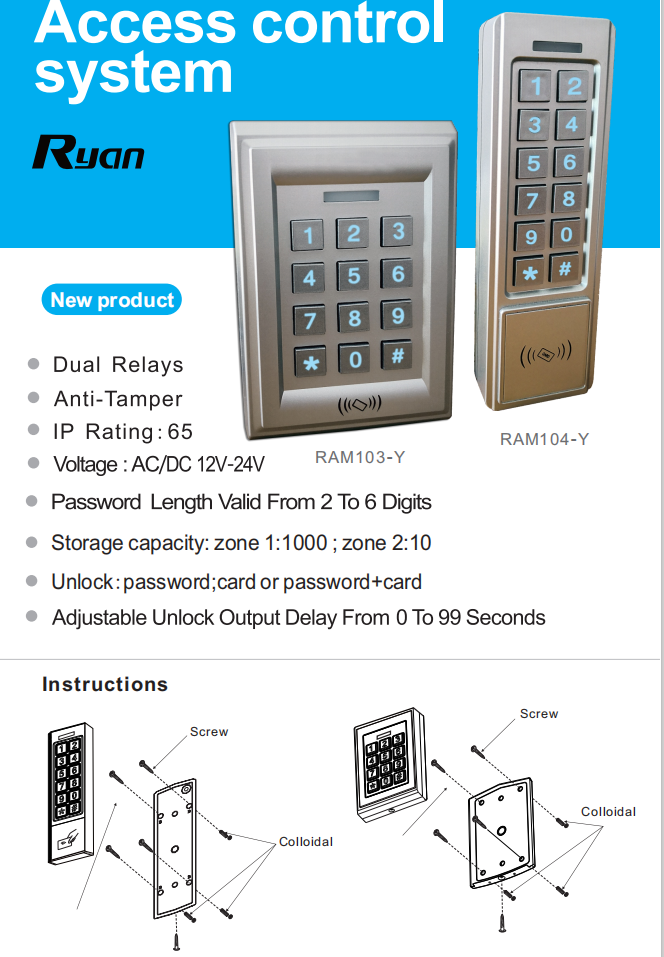

Waterproof Keypad Access Control System

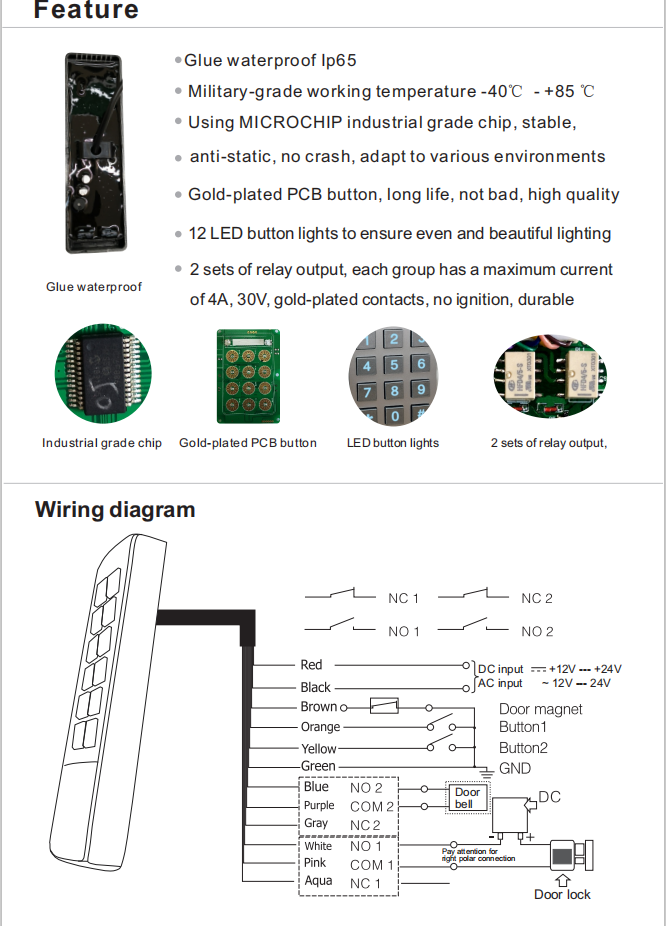

This access control system features a keypad reader for secure entry. It supports 12V-24V DC/AC power input and includes connections for door magnets, power supplies, and exit buttons for two separate zones.
Technical Specifications
Overview
Industrial-Grade Access Control
This standalone waterproof keypad access control system is designed for professional security applications in diverse environments. With an IP65-rated epoxy-potted housing, it ensures reliable performance even under harsh outdoor conditions, ranging from -40°C to +85°C. The system supports flexible authentication methods including card, password, or combination access across two independent zones, making it an ideal choice for multi-door site management.
Technical Specifications
User Capacity
1,000 Users
Zone 1 Users
10 Users
Zone 2 Users
Power Requirements
- Input Voltage: 12V-24V DC/AC
- Operating Current: <150mA
- Integrated Watchdog Timer
- Power Reset & Self-recovery
Relay Performance
- Dual relay outputs for versatile control
- Max current capacity: 4A @ 30V
- Gold-plated contacts for spark-free durability
- Adjustable unlock delay: 0 to 99 seconds
Physical & Environmental
- Environmental Ratings
- IP65 RatedEpoxy PottedAnti-TamperMilitary-Grade Temperature
- Dimensions
- 152 mm (length)
Features
Access Methods
PasswordCard AccessCard + Password
Construction Details
- Gold-plated PCB buttons
- 12 LED button illumination
- Industrial-grade microchip controller
- Anti-static and crash-resistant design
