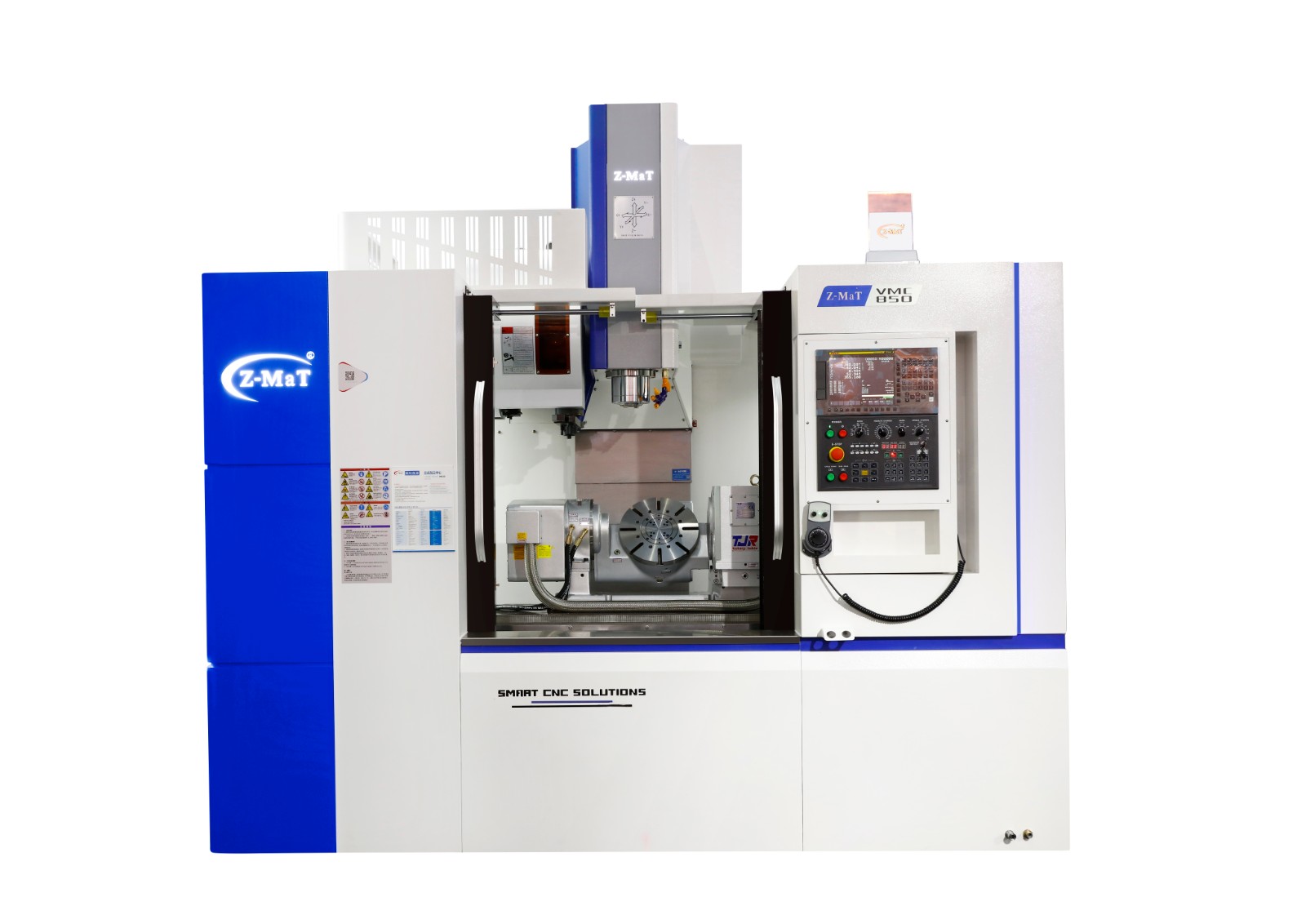

VMC850 Vertical Machining Center
The VMC850 is a heavy-duty machining center designed for high-precision metal cutting. It features a robust structure ensuring stability during high-speed machining operations.
Technical Specifications
Overview
High-Precision Vertical Machining Center
The VMC850 is a heavy-duty vertical machining center engineered for high-speed, precision metal cutting in demanding industries like aerospace and automotive. Featuring a robust cast structure, precision linear guideways, and a reliable 24-station arm-type automatic tool changer, it ensures stability and efficiency for complex mold and die manufacturing. Its optimized design offers extended travel on the X-axis and supports smart manufacturing solutions to enhance competitiveness.
Key Features
- Standard Equipment
- Automatic Tool ChangerErgonomic CNC PanelAutomatic LubricationFull Machine EnclosureDoor Safety LockHeat ExchangerAir Conditioned Electrical Cabinet
Performance Metrics
Key Performance Metrics
12,000 rpm
Max Spindle Speed
600 Kg
Max Table Load
24 Tools
ATC Capacity
6,500 Kg
Net Weight

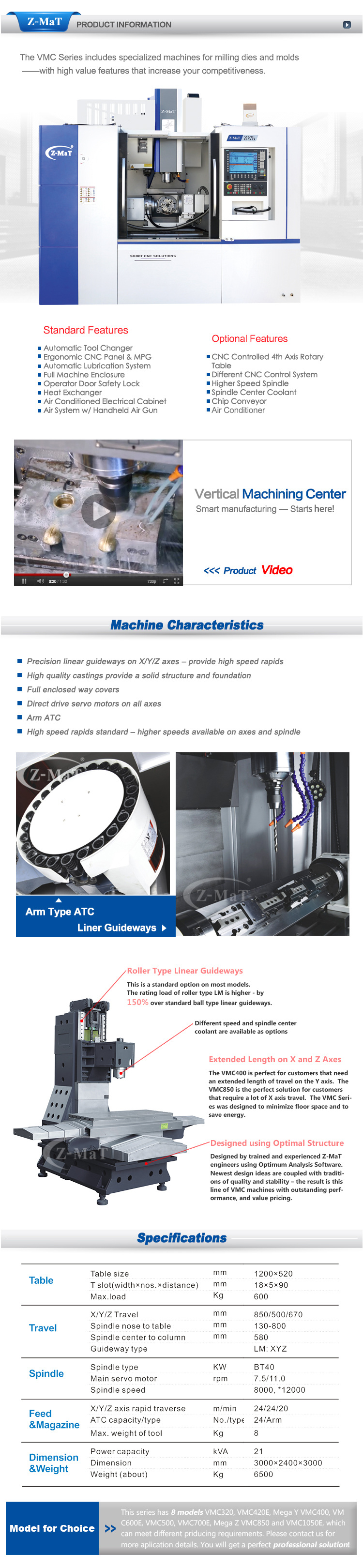

Technical Specifications
Machine Dimensions and Travel
| Parameter | Value |
|---|---|
| Table Size | 1200 x 520 mm |
| X/Y/Z Travel | 850 / 500 / 670 mm |
| Overall Dimensions | 3000 x 2400 x 3000 mm |
| Spindle Nose to Table | 130 - 800 mm |
Rapid Traverse Rates (X/Y/Z)
- X Axis: 24 m/min
- Y Axis: 24 m/min
- Z Axis: 20 m/min
