Vertical Machining Centers
These vertical machining centers are designed for high-speed and high-precision machining. They feature a three-axis roller line rail system for heavy cutting rigidity and high-precision performance.
Technical Specifications
Product Overview
High-Performance Vertical Machining Centers

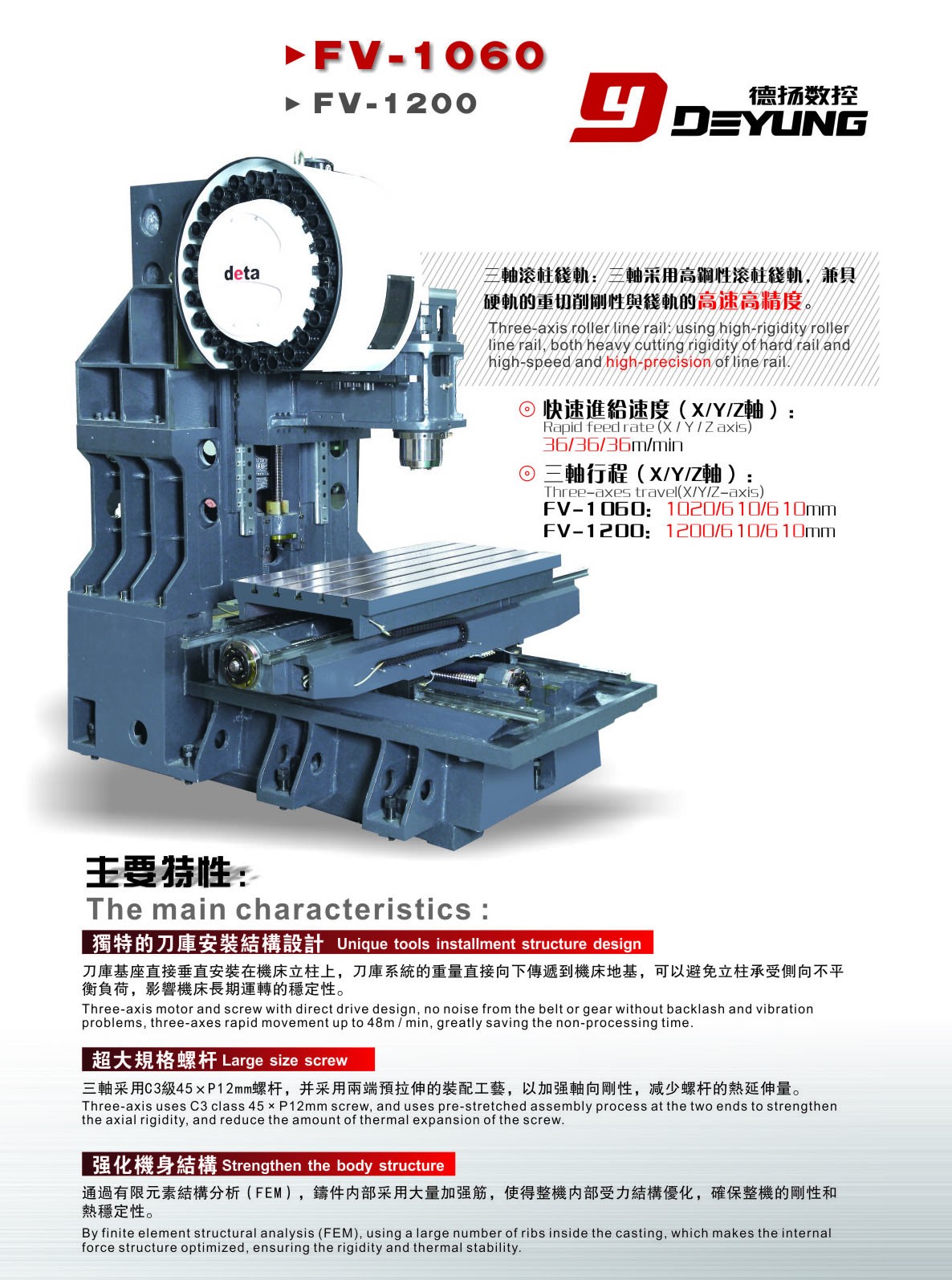

The FV series machining centers are precision-engineered for high-efficiency heavy cutting and high-speed operation. Utilizing advanced finite element structural analysis and a unique low-gravity base design, these machines ensure exceptional thermal stability and rigidity. These centers are ideal for demanding applications in automotive manufacturing, medical equipment production, mold making, and 3C product processing.
Key Performance Metrics
Core Operational Metrics
36 m/min
Rapid Feed Rate (X/Y/Z)
48 m/min
Max Rapid Movement
900 kg
Max Table Load
Technical Specifications
Axis Travel (X/Y/Z)
| Model | X-Axis (mm) | Y-Axis (mm) | Z-Axis (mm) |
|---|---|---|---|
| FV-1060 | 1,020 | 610 | 610 |
| FV-1200 | 1,200 | 610 | 610 |
- Lead Screw Specifications
- C3 Class 45 x P12mm with pre-stretched assembly process
Construction & Design
- Structural Characteristics
- Three-axis roller line railLow gravity base designFinite element structural analysis (FEM)Direct drive motor design
Application Suitability
Industries Served
- Automotive Parts Production
- Mold Manufacturing
- Medical Equipment
- Telecommunications
- 3C Electronics
