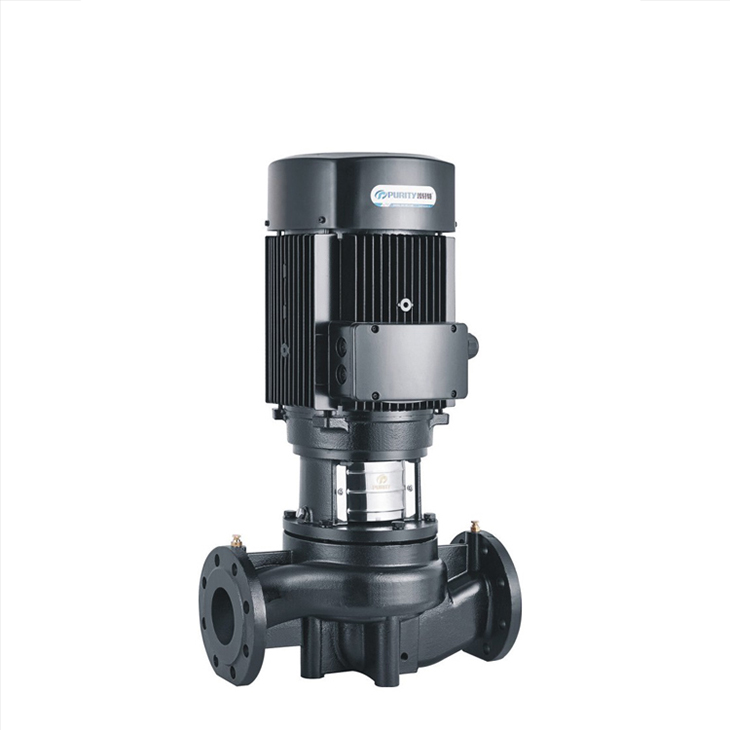

Vertical Inline Centrifugal Pump for Fire Fighting and Water Supply
This vertical inline centrifugal pump is designed for fire fighting and water supply. It features a stainless steel impeller and anti-corrosive coating.
Technical Specifications
Product Overview
High-Efficiency Vertical Inline Pump
This vertical inline centrifugal pump is engineered for demanding applications including fire fighting, water supply, and industrial pressure boosting. Featuring a space-saving vertical design, the unit utilizes a high-efficiency motor and robust corrosion-resistant materials to ensure reliable, long-term operation. With models supporting capacities up to 5000 US GPM, it is an ideal solution for water circulation and irrigation systems requiring consistent performance.
Performance Specifications
- Flow Capacity Range
- 80-5000 US GPM
- Maximum Flow
- 630 m3/h
- Maximum Head
- 85 m
- Power Range
- 1.1-132 kW (1.5-180 hp)
Technical Standards
Operating Limits
16 bar
Max Working Pressure
120 °C
Max Liquid Temp
50 °C
Max Ambient Temp
- Service Duty
- Continuous Service S1
- Applicable Standards
- EN733IP55 ProtectionClass F Insulation

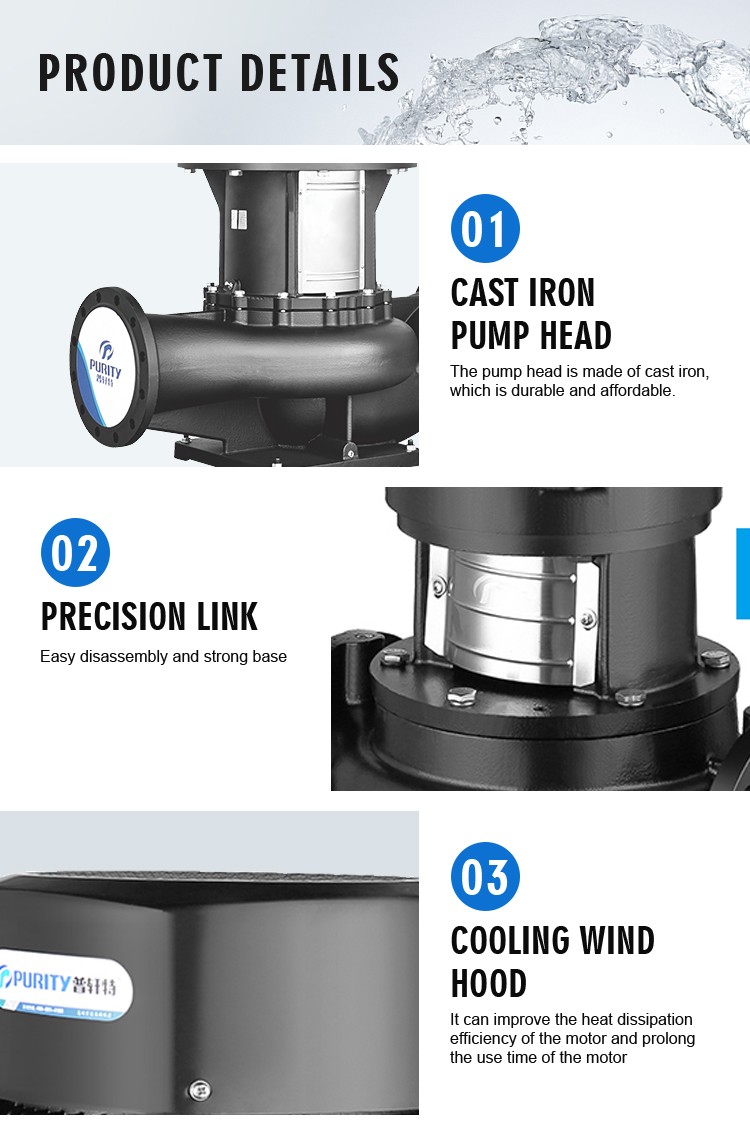

Construction & Materials
Key Components
| Component | Material |
|---|---|
| Impeller | Stainless Steel AISI 304 or Brass/Cast Iron |
| Shaft | Stainless Steel AISI 304 or Galvanized Iron |
| Pump Case | Cast Iron with Anti-Corrosive Coating |
| Bearings | High-Quality NSK |
Applications
Recommended Applications
- Fire fighting sets
- Water supply and distribution
- Pressure boosting systems
- Industrial water circulation
- Agricultural irrigation
- Climatisation (HVAC) systems
