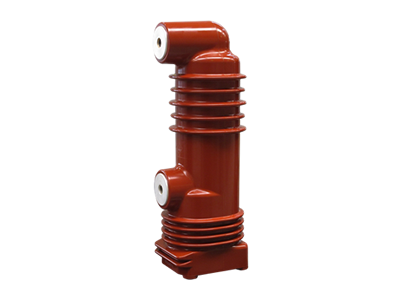

Vacuum Interrupter with Embedded Pole
Vacuum interrupters with embedded poles are critical components in 110kV and below transmission and distribution switches, commonly used in distribution control systems. These devices are mainly applied in distribution control systems.
Technical Specifications
Product Overview

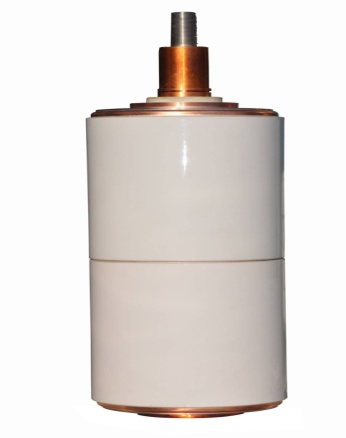

High-Performance Vacuum Interrupter
This high-voltage vacuum interrupter with an embedded pole design is engineered for reliable switching and protection within electrical power systems. It features a robust, insulated housing that facilitates rapid arc extinction and ensures long service life in demanding medium and high-voltage applications. The integrated construction enhances insulation properties while effectively reducing the overall footprint of switchgear equipment.
Technical Specifications
Core Performance Metrics
145 kV
Max Rated Voltage
6,300 A
Max Rated Current
80 kA
Max Breaking Current
- Rated Voltage Range
- 1.14kV - 145kV
- Rated Current Range
- 320A - 6300A
- Rated Short-Circuit Breaking Current
- 12.5kA - 80kA
Compliance & Certification
Verified By
KEMACESIKERICPRIXIHARI
- International Standards
- IECIEEEANSI
