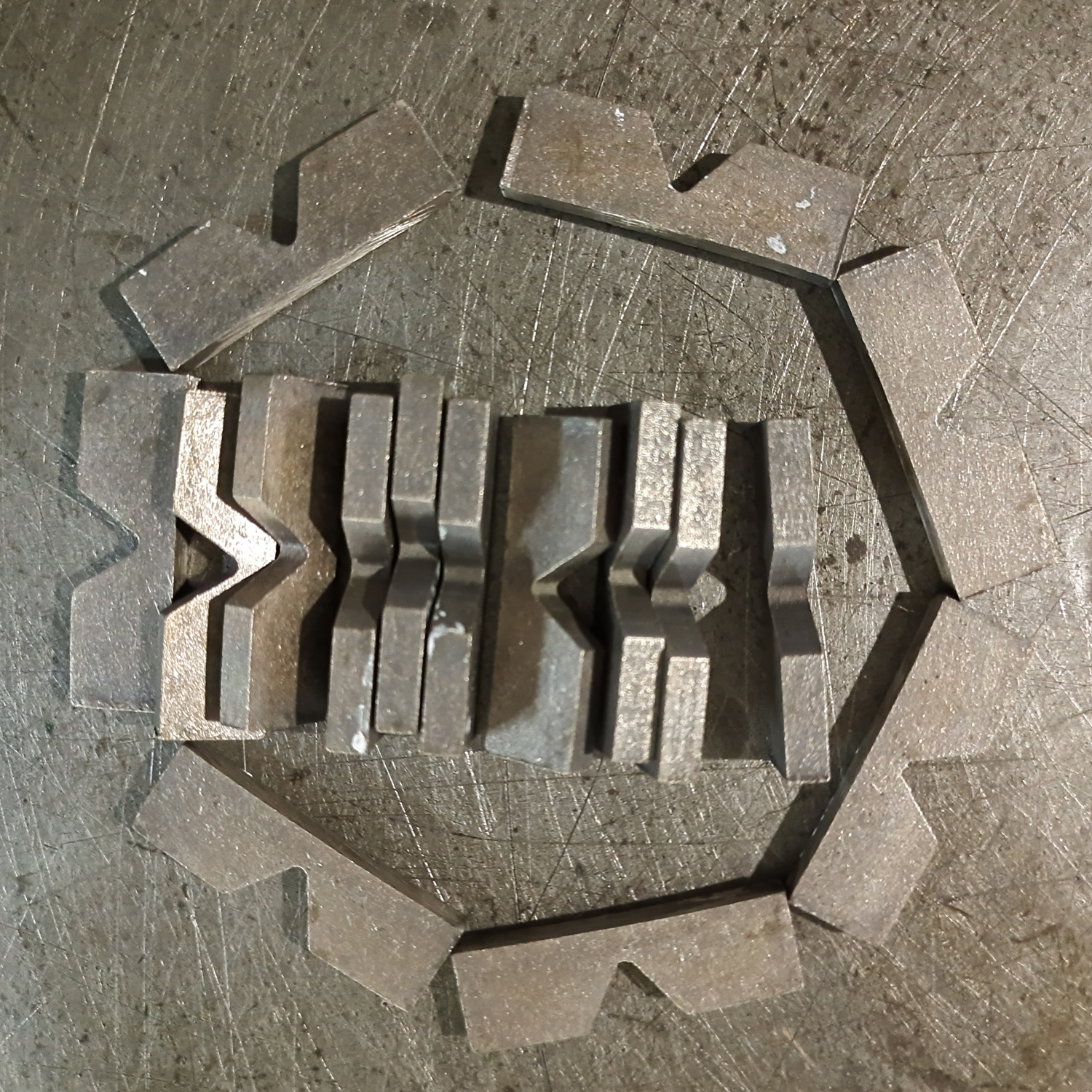

V-Shaped Diamond Segment for Stone Cutting
This V-shaped diamond segment is designed for cutting stone. It delivers smooth cutting action, reduces waste, and is suitable for various materials like granite, marble, and sandstone.
Technical Specifications
Product Overview
High-Performance V-Shaped Diamond Segments
These precision-engineered diamond segments feature a specialized V-shaped design, optimized for smooth and efficient stone cutting. Designed to minimize material waste while ensuring a chip-free finish, they are suitable for a wide range of applications including granite, marble, sandstone, and concrete. With customizable bond hardness options, these segments provide consistent, reliable performance for both single and multi-blade cutting operations.
Key Features
Performance Benefits
- High-quality, smooth cutting
- Chip-free results
- Reduced stone waste
- Universal wet cutting
- Customizable bond hardness (soft to hard)
- Sandwich or grooved segment options
- Cutting Applications
- GraniteMarbleSandstoneConcreteAsphaltBituminous PavementLimestone
Dimensions & Specifications
Standard Dimensions Reference
| Diameter (mm) | Inch | Core Thickness (mm) | Segment Size (mm) | Segment Count |
|---|---|---|---|---|
| 300 | 12'' | 2.2/2.0 | 40*3.0/2.8*8(10)(12)(15) | 21 |
| 350 | 14'' | 2.2/2.4 | 40*3.0/3.2*8(10)(12)(15) | 24 |
| 400 | 16'' | 2.6/2.8 | 40*3.4/3.6/3.8*8(10)(12)(15) | 24 |
