Urinal Flush Push Button Switch
This push button switch is designed for urinal flush systems. It features a spring return mechanism for momentary operation.
Technical Specifications
Overview
Versatile Push Button Switch

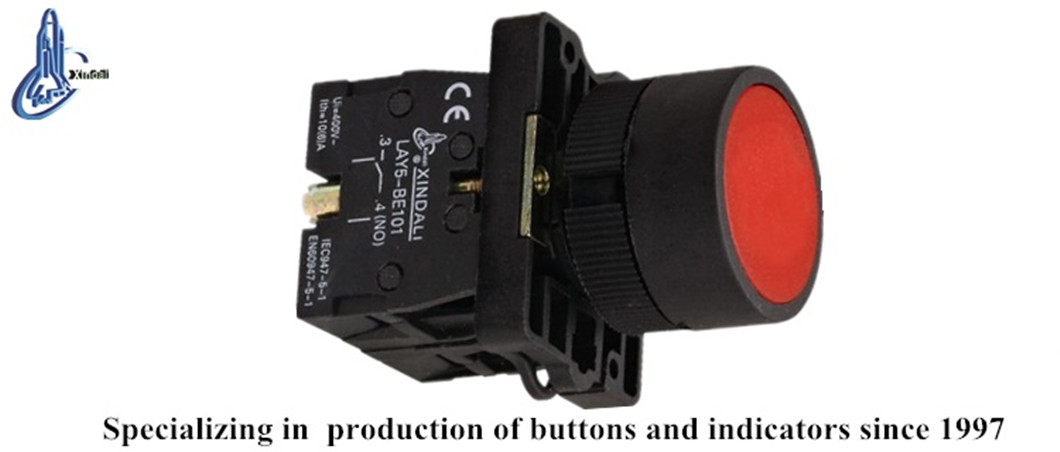

This spring return push button switch is designed for reliable control in various electrical applications, including urinal flush systems. Built with a durable combination of zinc alloy and high-grade anti-flame plastic, it ensures longevity and safety. The unit features silver alloy contacts to provide high resistance against electrical erosion, making it suitable for demanding control circuits.
Technical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Compliance Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO 9001RoHSUL
