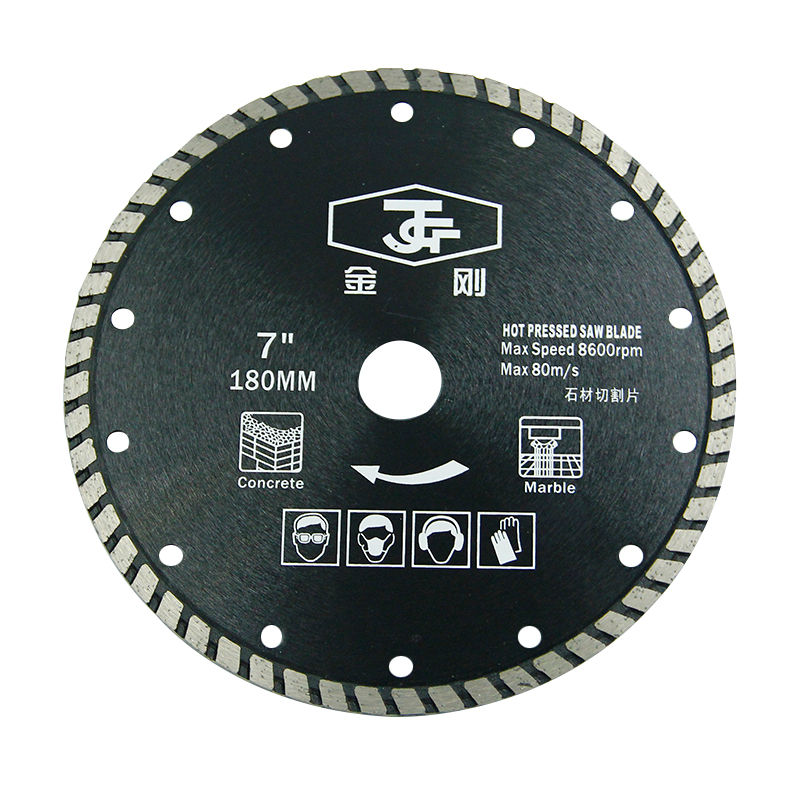

Turbo Diamond Saw Blade
This diamond saw blade is designed with a turbo rim for efficient cutting of concrete and marble. It has a maximum speed of 8600 rpm and a maximum linear speed of 80 m/s.
Technical Specifications
Overview
High-Performance Turbo Diamond Blade
The Turbo Diamond Saw Blade is engineered for high-performance cutting across a wide variety of tough building materials, including reinforced concrete, granite, and masonry. Its hot-pressed sintered segments provide an aggressive cutting action while ensuring a clean, smooth finish without burning or segment detachment. Designed with a high-alloy, heat-treated steel core, this blade minimizes vibration and ensures structural integrity during demanding operations.
Technical Specifications
- Diameter
- 180 mm
- Bore Size
- 22.2 mm
- Segment Height
- 7/10mm
- Body Thickness
- 1.4 mm
- Body Material
- 65Mn Steel
Performance Metrics
Operating Limits
8,600 rpm
Max Speed
80 m/s
Max Linear Speed
Compatibility & Usage
Compatible Tools
- Angle Grinders
- Marble Cutters
- Compatible Materials
- ConcreteReinforced ConcreteGraniteMasonryBrickSand-lime StoneExposed Aggregate
Compliance & Safety
Compliance
EN13236
Required Personal Protective Equipment
- Eye protection
- Face mask
- Ear protection
- Gloves
