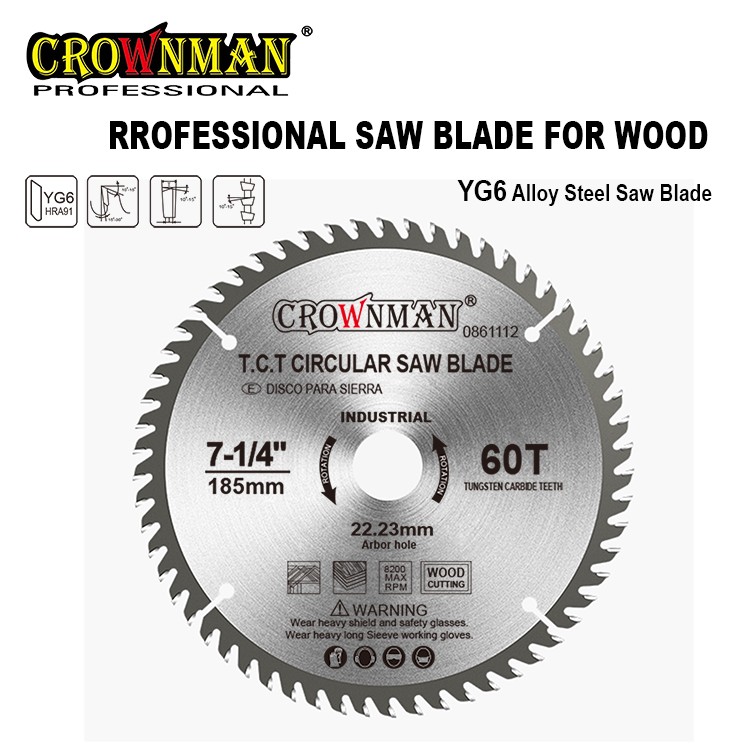

Tungsten Carbide Tipped Circular Saw Blade
This professional-grade circular saw blade is designed for ripping and cross-cutting thick hardwoods. Its thin kerf allows for a smooth finish with minimal waste.
Technical Specifications
Product Overview
Professional Grade Wood Cutting Solution
This Tungsten Carbide Tipped (TCT) circular saw blade is engineered for industrial-level performance in ripping and crosscutting thick hardwoods. Featuring quadruple chip grinding and a thin kerf design, it ensures high-precision cuts with minimal material waste. The blade is constructed from high-strength alloy steel with YG6 carbide tips, providing exceptional durability and heat resistance for demanding construction tasks.
Key Performance Metrics
Key Performance Metrics
8,200 RPM
Max Speed (7-1/4")
91 HRA
Tip Hardness
2,300 N/mm²
Tip Strength
45 HRC
Body Hardness
Technical Specifications
Blade Dimensions & Teeth

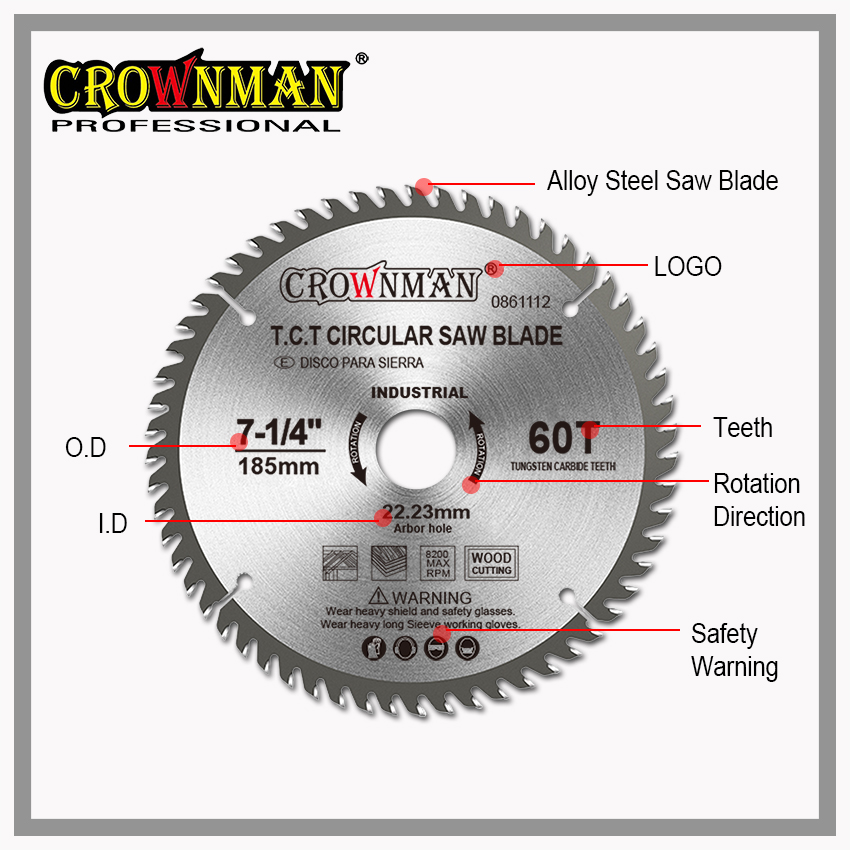

| Diameter | Teeth Count | Arbor Hole | Max RPM |
|---|---|---|---|
| 4" (105mm) | 24T | 20mm | 14,500 |
| 7-1/4" (185mm) | 24T / 60T | 22.23mm | 8,200 |
| 12" (300mm) | 60T | 25.4mm | 5,000 |
Material & Construction
Material Composition
- YG6 Alloy Steel Tips
- High Carbon Tool Steel Teeth
- High Strength Alloy Steel Body

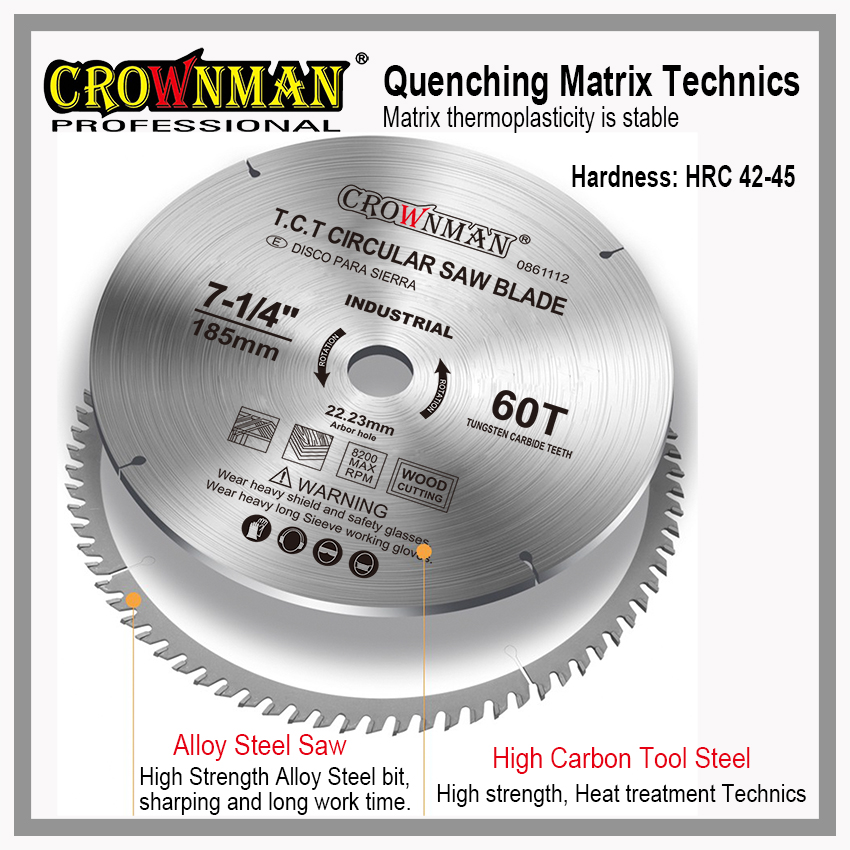

- Quenching Matrix Technics for stability

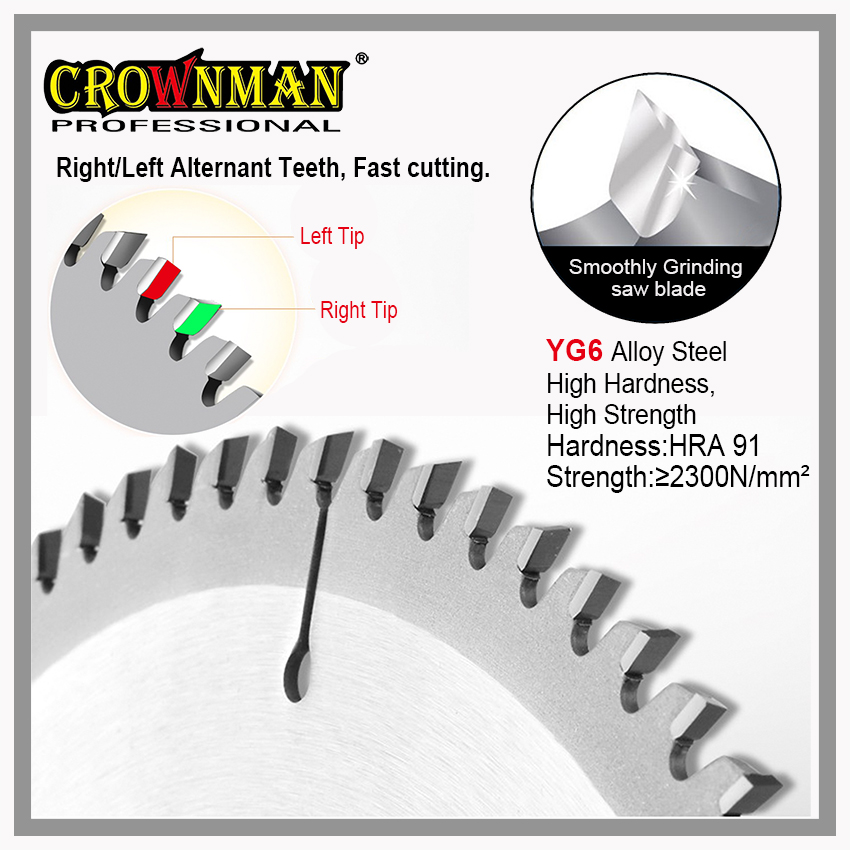

- Right/Left Alternant Teeth (ATB) geometry
Applications

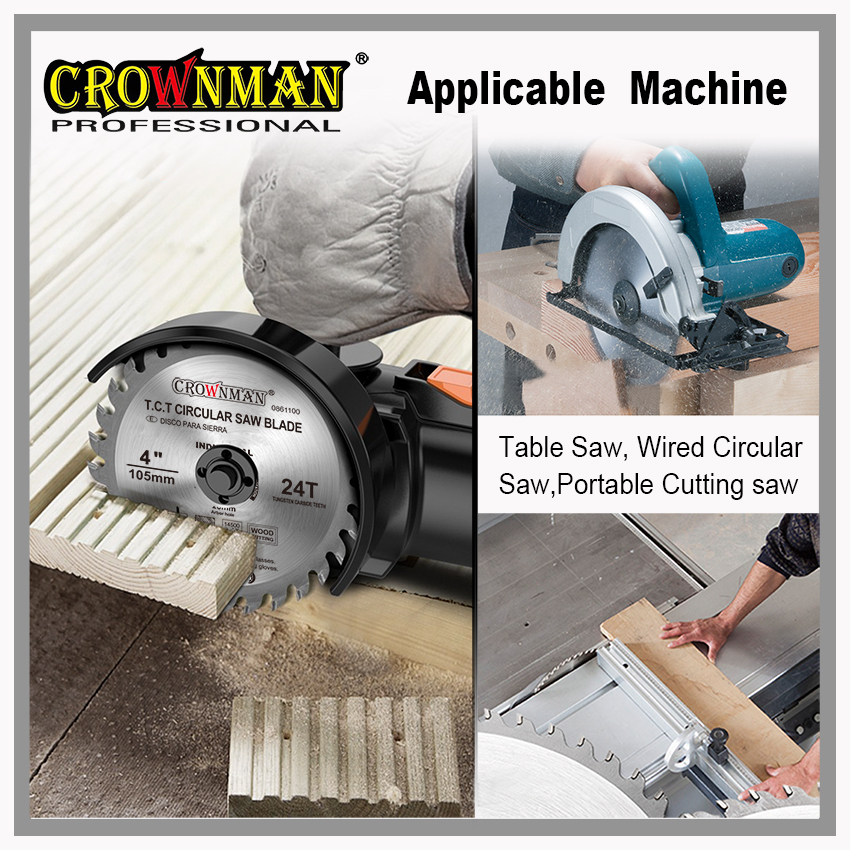

Compatible Machinery
- Miter Saws
- Circular Saws
- Table Saws
- Hand Saws
- Chop Saws
- Portable Cutting Saws
- Compatible Materials
- Hard WoodSoft WoodExotic WoodAbrasive WoodPlywoodChipboardWood with pins
Safety & Compliance
Safety Requirements
Wear Heavy ShieldSafety Glasses RequiredLong Sleeve Gloves Required
