Tungsten Carbide Tipped Circular Saw Blade
This tungsten carbide tipped (T.C.T) circular saw blade is designed for cutting plastic and steel. It features heat-treated blade body for enhanced durability.
Technical Specifications
Product Overview
Professional T.C.T Saw Blades
These professional-grade Tungsten Carbide Tipped (T.C.T) circular saw blades are engineered for high-precision cutting in plastic and steel applications. Each blade features a heat-treated body for enhanced durability and longevity under heavy-duty usage. Designed for safety and efficiency, these blades offer specialized tooth configurations and clearance dimensions to ensure optimal chip evacuation and clean, accurate results.
Technical Specifications
Maximum Speed
7,600 RPM
Maximum Rotation

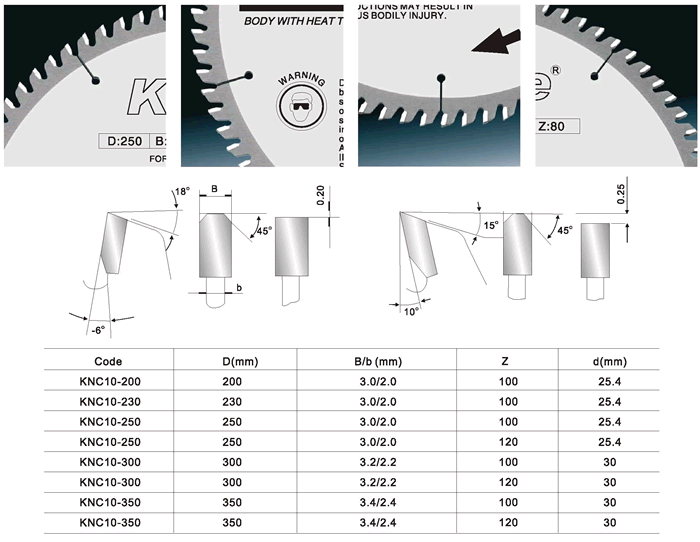

Technical Configuration Data
| Model | Diameter (mm) | Thickness (mm) | Teeth (Z) | Arbor (mm) |
|---|---|---|---|---|
| KNC10-200 | 200 | 3.0/2.0 | 100 | 25.4 |
| KNC10-230 | 230 | 3.0/2.0 | 100 | 25.4 |
| KNC10-250 | 250 | 3.0/2.0 | 100 | 25.4 |
| KNC10-250 | 250 | 3.0/2.0 | 120 | 25.4 |
| KNC10-300 | 300 | 3.2/2.2 | 100 | 30 |
| KNC10-300 | 300 | 3.2/2.2 | 120 | 30 |
| KNC10-350 | 350 | 3.4/2.4 | 100 | 30 |
| KNC10-350 | 350 | 3.4/2.4 | 120 | 30 |
- Diameter Range
- 200mm to 350mm
- Tooth Counts
- 80100120
Safety and Maintenance
Operational Warnings
- Use with a proper blade guard at all times
- Always wear safety glasses
- Inspect for cracks or damage before use
- Follow instructions in the saw owner's manual to prevent injury
