Tungsten Carbide Brazed Tips
Tungsten carbide brazed tips offer exceptional hardness and wear resistance for demanding cutting applications. These tips are precision-engineered to provide a strong, reliable bond between the carbide insert and the steel shank.
Technical Specifications
Product Overview

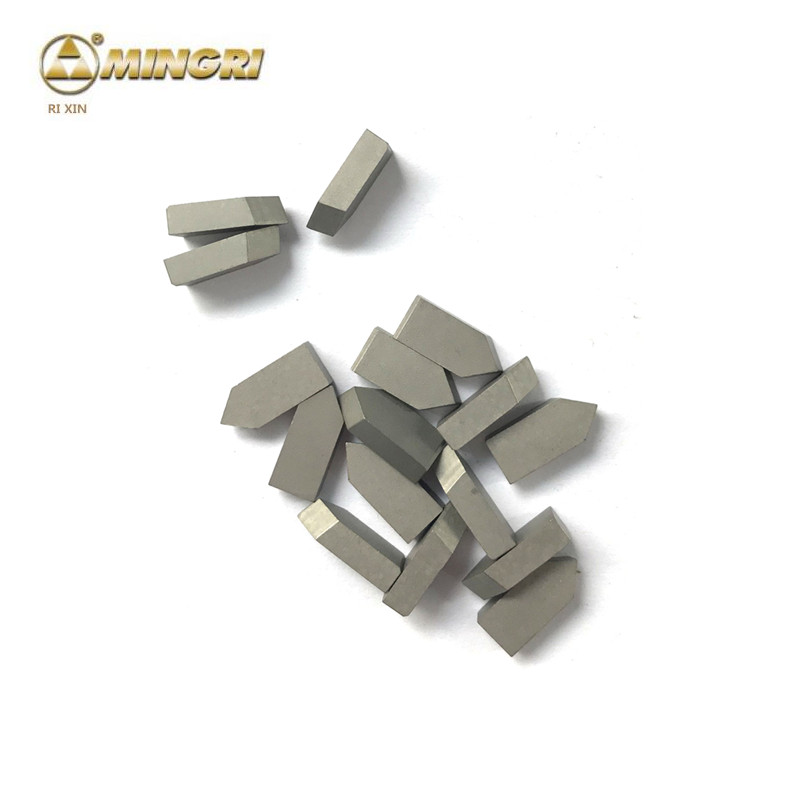

Tungsten Cemented Carbide Brazed Tips
These high-performance tungsten cemented carbide brazed tips are engineered for demanding industrial cutting and machining applications. Designed for superior wear resistance and thermal stability, they ensure extended tool life and precise material removal. Available in various grades and dimensions, they are suitable for processing diverse materials including cast iron, non-ferrous metals, manganese steel, and hardened steel.
Material Grades
Grade Technical Data
| Grade | Density (g/cm³) | Hardness (HRA) | TRS (MPa) | ISO Class |
|---|---|---|---|---|
| YM6 | 14.95 | 90.5 | 2,400 | K15 |
| YM8 | 14.7 | 89.8 | 2,800 | K20 |
| YM6A | 14.85 | 92.5 | 2,200 | K10 |
| YM6X | 14.9 | 91.5 | 2,300 | K10 |
Application Recommendations
- YM6/YM8: Roughing of cast iron and light alloys; milling of cast iron and low-alloy steel
- YM6A/YM6X: Semi-finishing of cast iron and nonferrous metals; machining of manganese and hardened steel
Customization
- Customization Policy
- Other grades and custom sizes can be offered as per customers' specific requirements.
