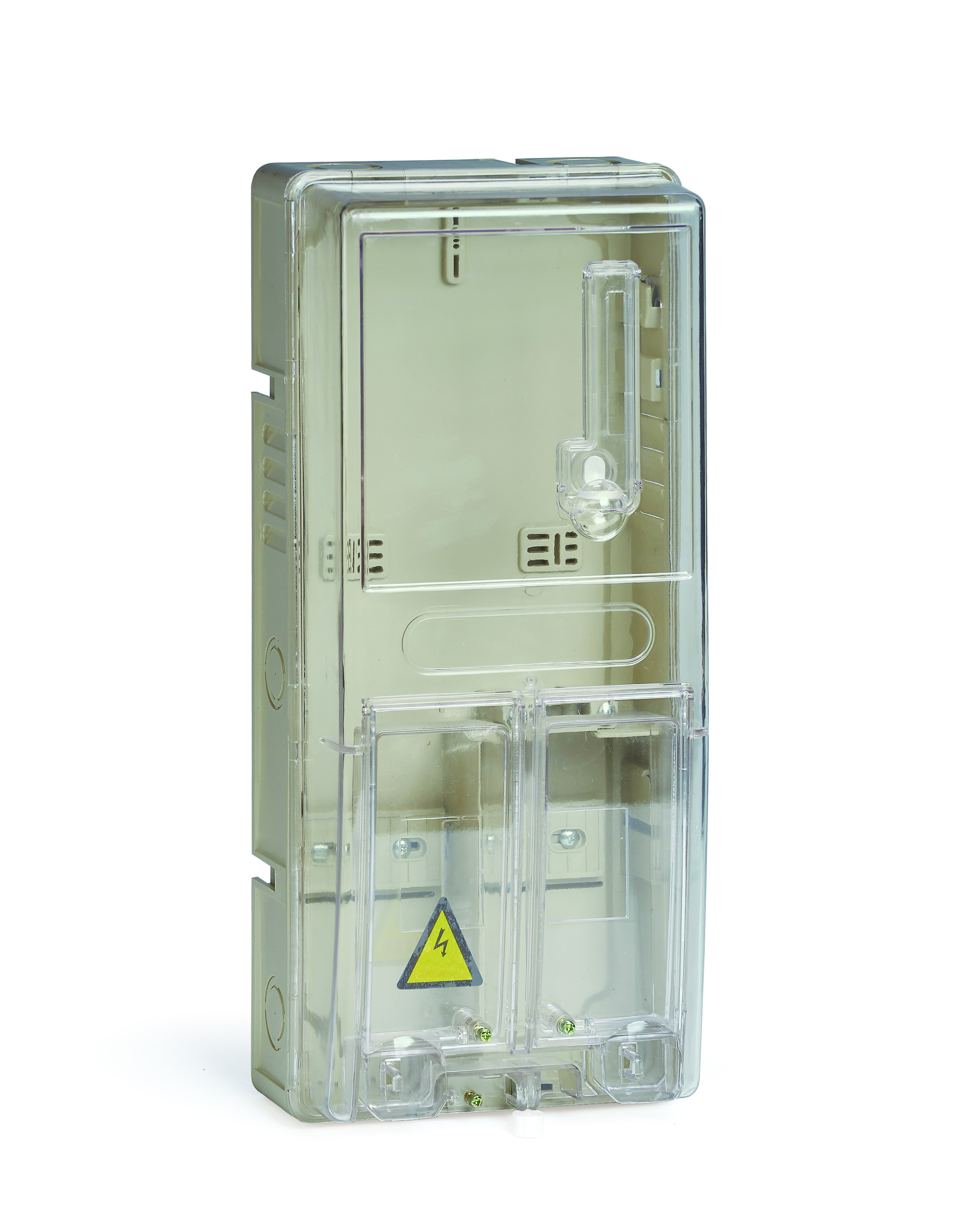

Transparent Polycarbonate Electricity Meter Box
This metering box is designed for meters operating at 50 Hz, 220V/380V, and current levels of 225A~10A. The transparent enclosure provides protection while allowing easy meter reading.
Technical Specifications
Product Overview
CTKJ-A Series Metering Box
The CTKJ-A series metering box is a professional-grade enclosure designed for 50Hz electrical systems operating at 220V/380V. Constructed from high-quality polymer resin and polycarbonate, it offers superior anti-static, flame retardant, and anti-UV properties for long-term outdoor reliability. Its transparent design ensures easy meter reading, while the robust seal provides excellent protection against environmental elements and tampering.
Electrical Specifications
Rated Current
10 A
Min Current
225 A
Max Current
- Rated Voltage
- 220V / 380V
- Rated Insulated Voltage
- 400 V
- Short-time Withstanding Current
- 6 KA
- Insulated Resistance
- >= 20 MΩ
Physical Properties
Protection Rating
IP54
- Material Features
- Polymer Resin BodyPolycarbonate CoverFlame RetardantAnti-UVAnti-AgingCorrosion ResistantImpact Resistant
- Expected Service Life
- 15 years
