Toroidal Power Transformer for Audio Amplifiers
This toroidal transformer provides high efficiency and low temperature rise. Its iron core is designed without an air gap to minimize vibration and noise.
Technical Specifications
Product Overview
High-Performance Toroidal Transformer

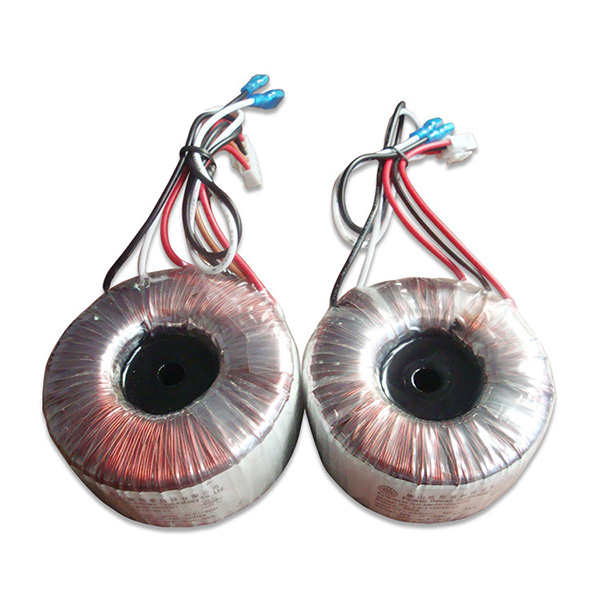

This toroidal power transformer is engineered specifically for high-fidelity audio amplifier and loudspeaker applications. Its compact toroidal core design ensures efficient power conversion and reduced electromagnetic interference, providing clean and stable power for optimal audio performance. Built to support a wide power range, this unit is designed to meet rigorous insulation standards for safety and reliability in professional audio systems.
Technical Specifications
Standards & Compliance
CERoHSGB/T19212.1-2008GB/T19212.5-2008
- Power Range
- 20VA - 5000VA
- Insulation Class
- Class BClass FClass H
Configuration Example

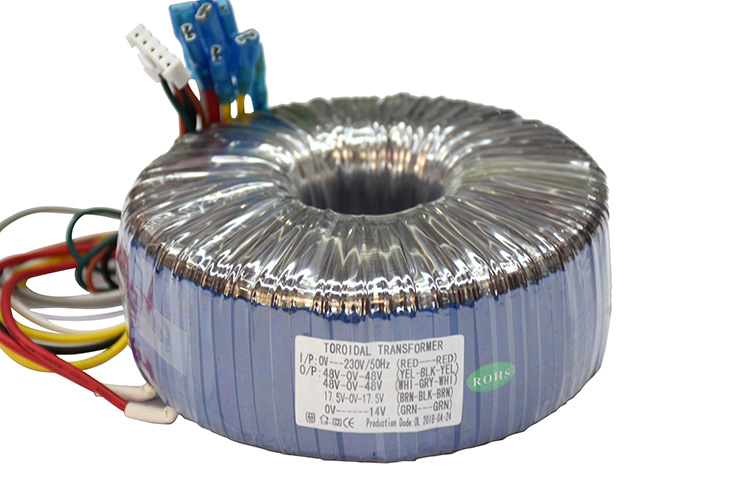

Voltage Tap Configuration (Example Model)
| Connection | Voltage/Details |
|---|---|
| Input | 0V-230V / 50Hz (Red-Red) |
| Output 1 | 48V-0V-48V (Yellow-Black-Yellow) |
| Output 2 | 48V-0V-48V (White-Grey-White) |
| Output 3 | 17.5V-0V-17.5V (Brown-Black-Brown) |
| Output 4 | 0V-14V (Green-Green) |
