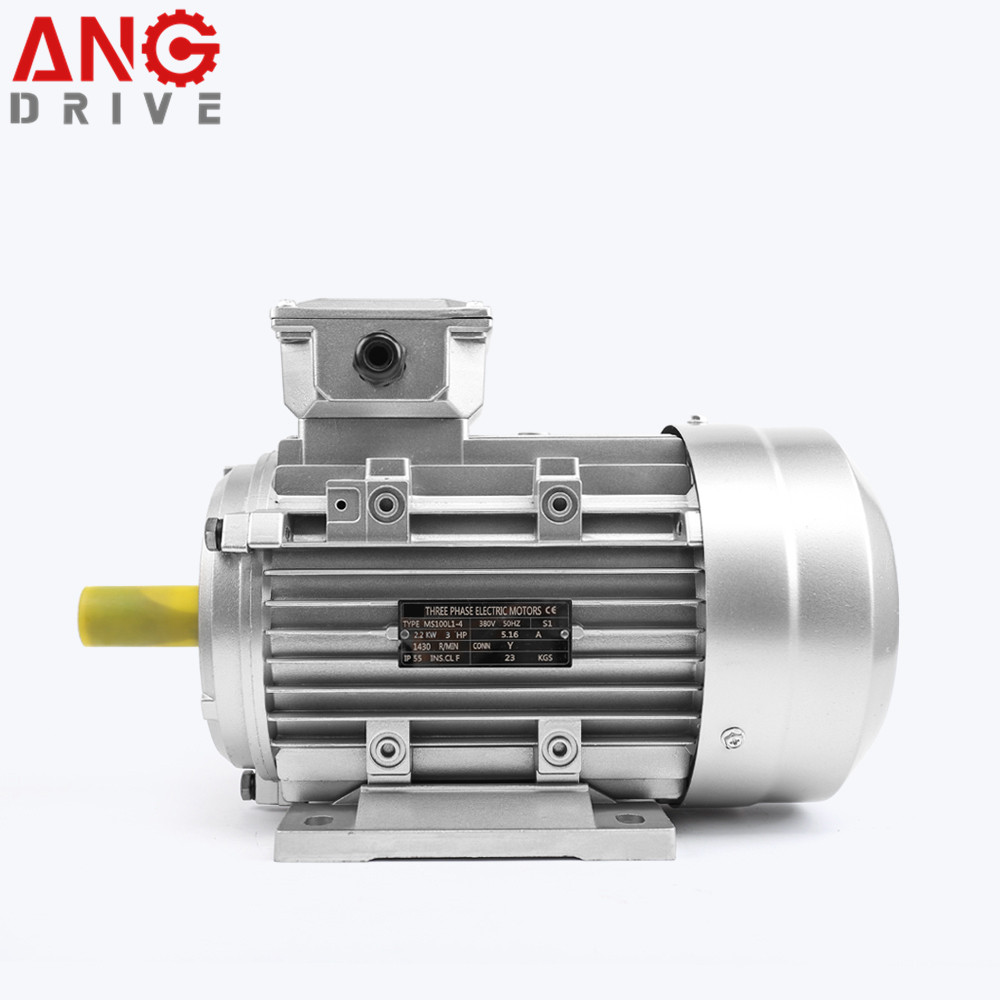

Three-Phase Induction Electric Motor for Industrial Applications
This three-phase electric motor is designed for various industrial applications, including fans, blowers, compressors, and pumps. It features IP55 protection for resistance to dust and water splashes.
Technical Specifications
Overview
High-Performance Induction Motor
This three-phase induction electric motor is engineered for reliable operation in demanding industrial environments. Designed with a robust IP55 enclosure, it offers excellent protection against dust and water splashes, making it suitable for fans, blowers, compressors, and pump applications. It features a lightweight design, low vibration, and quiet operation to ensure efficiency and longevity.
Technical Specifications
Power Rating
2.2 kW
Power Output
3 HP
Horsepower
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 380V |
| Frequency | 50Hz |
| Rated Current | 5.16 A |
| Connection | Y (Star) |
| Duty Cycle | S1 (Continuous) |
Performance
- Speed: 1430 R/MIN
- Insulation Class: F
- Protection Rating: IP55
Compliance & Features
- Standards & Compliance
- CE CertifiedIEC StandardsIE2/IE3 Efficiency
Physical Characteristics
- Weight
- 23 KGS
