Three-Phase Electric Motor
This three-phase electric motor is designed for industrial applications. It features robust construction and reliable performance for a wide range of machinery and equipment.
Technical Specifications
Overview

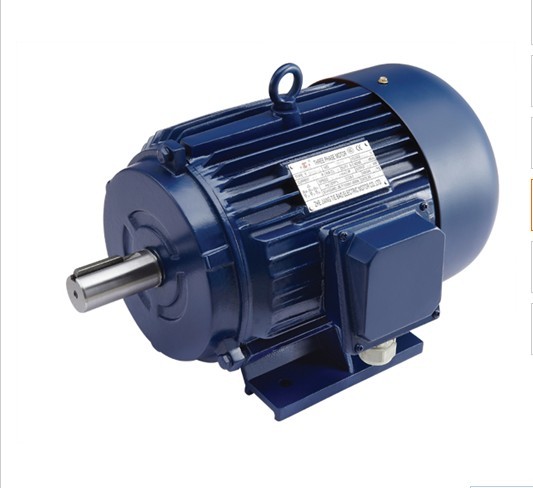

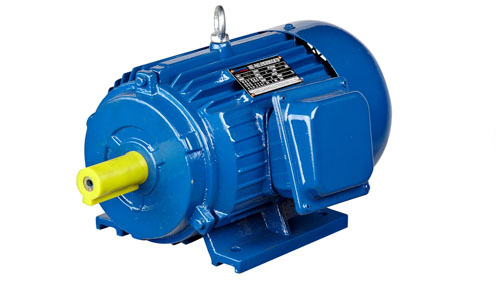

Industrial Y Series Electric Motor
The Y series is a totally enclosed, fan-cooled three-phase squirrel cage induction motor designed in strict conformity with IEC and DIN42673 standards. Engineered for industrial reliability, these motors deliver high efficiency, significant energy savings, and high starting torque with minimal noise and vibration. They are ideally suited for general purpose applications including machine tools, pumps, fans, transport machinery, and agricultural equipment.
Technical Specifications
Wiring Connection
| Power Rating | Connection Type |
|---|---|
| 3 kW and below | Y Connection |
| 4 kW and above | Delta Connection |
- Design Standards
- IECDIN42673TEFC
Performance
Operational Performance
55 IP
Protection Class
155 Class F
Insulation Class
Application
Common Applications
- Machine tools
- Pumps
- Fans
- Transport machinery
- Mixing equipment
- Agriculture machinery
- Food processing machines
