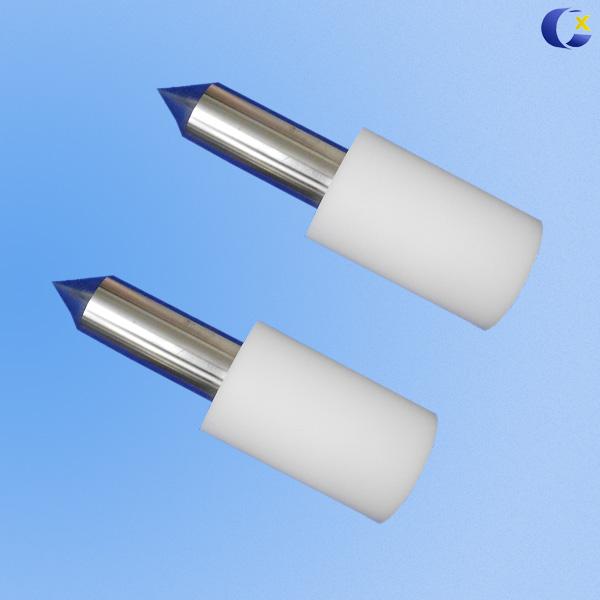

Test Probe 41 with Thorn Tip
This test probe verifies protection against access to glowing heating elements. Designed according to IEC60065, IEC61032, and IEC60529 standards, it is used for testing the accessibility of hazardous parts in electrical appliances and equipment.
Technical Specifications
Overview
Precision Safety Testing
The Test Probe 41 with Thorn Tip is a specialized instrument designed to verify protection against access to glowing heating elements in electrical appliances. Engineered to meet rigorous international safety standards, it simulates human contact to identify potential electric shock hazards. This durable, precision-crafted tool is essential for compliance testing in household appliance manufacturing and quality assurance environments.
Compliance & Standards
- Conformance Standards
- IEC60065IEC61032IEC60529GB/T4208-2008UL
Technical Specifications

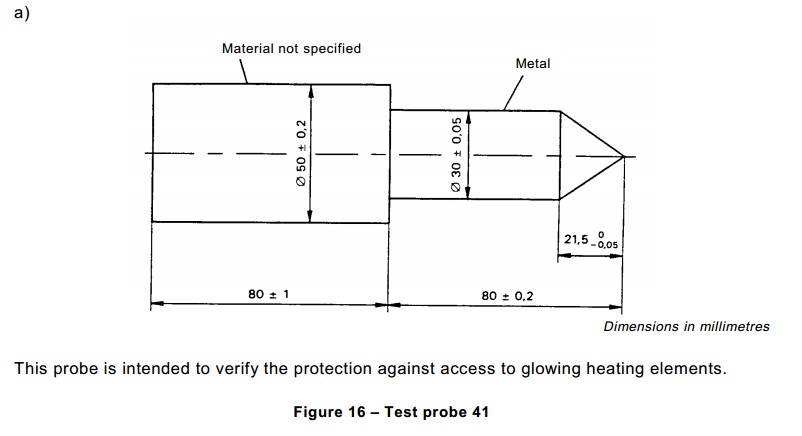

Dimensional Specifications
| Component | Diameter (mm) | Length (mm) |
|---|---|---|
| First Cylindrical Section | 50 ± 0.2 | 80 ± 1 |
| Second Cylindrical Section (Metal) | 30 ± 0.05 | 80 ± 0.2 |
| Conical Tip | N/A | 21.5 -0.05 |
Construction Materials
- Hardened steel tip
- Metal (second cylindrical section)
- Insulated handle
- Primary Application
- Verification of protection against access to glowing heating elements
