TCO Endpoint Control System Probe for Steelmaking
This endpoint control system utilizes a probe for non-inverted converter steelmaking processes. It accurately monitors and controls Total Carbon Oxygen (TCO) levels to ensure optimal steel quality and process efficiency.
Technical Specifications
Product Overview
TCO End-point Control System
The TCO End-point Control System is designed for non-inverted converter steelmaking processes ranging from 40 to 150 tons. By utilizing an automated detection probe introduced through the discharging port, the system measures molten steel temperature, oxygen content, and carbon levels within 8-12 seconds. This solution eliminates the need for furnace switching, significantly improving productivity, saving energy, and reducing refractory consumption.
Technical Performance
Measurement Parameters
12 s
Testing Speed
1,790 °C
Temperature Range
1,500 ppm
Oxygen Content
- Testing Success Rate
- 95 %
Operational Specifications
- Carbon Content Range
- 0.03% - 0.15%
- Temperature Accuracy
- 10 °C
System Components
System Modules

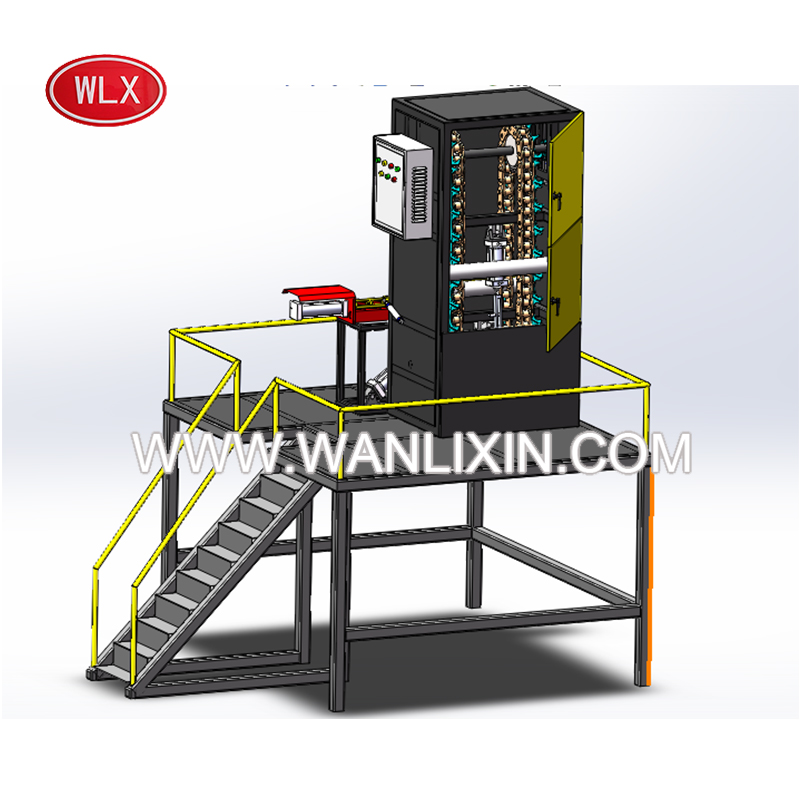

- Probe-release device

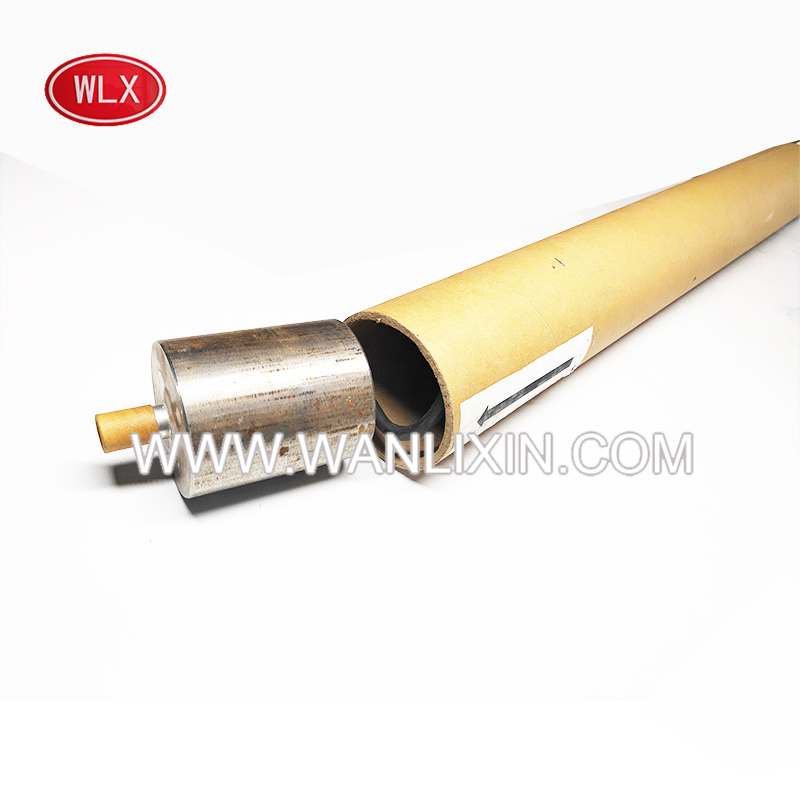

- Detection probe
- Signal processor
- Display unit
System Benefits
- Operational Advantages
- Increased ProductivityEnergy SavingReduced SplashingLower Refractory Wear
