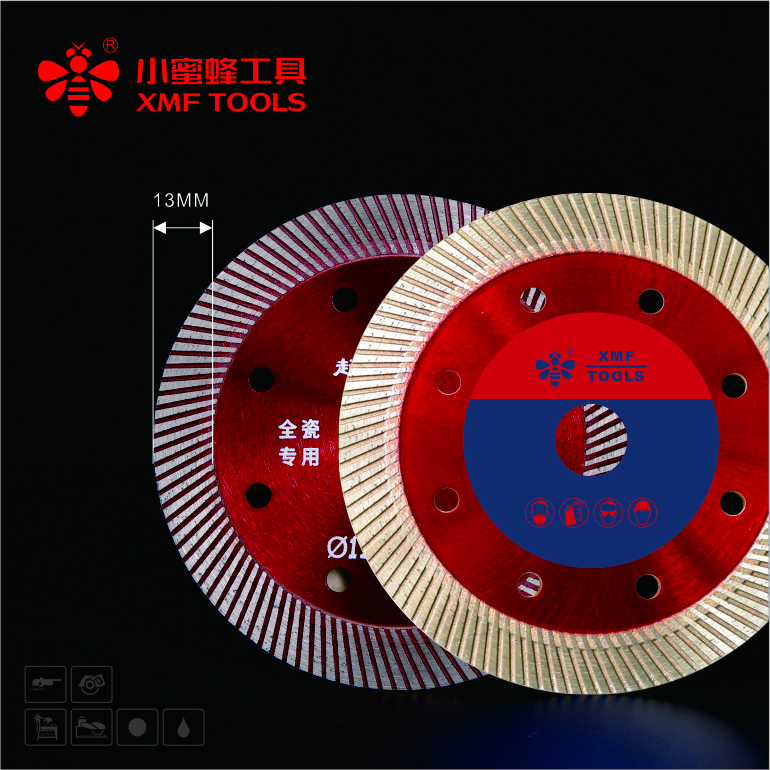

Super Thin Turbo Diamond Saw Blade
This hot-pressed, super-thin turbo saw blade is designed for cutting ceramic tiles and porcelain. It features a turbo rim for smooth cutting and minimal chipping.
Technical Specifications
Product Overview
High-Performance Turbo Diamond Blade
This hot-pressed, super-thin turbo diamond saw blade is engineered for fast, accurate cutting with minimal chipping. Designed for versatility, it excels in cutting tile, brick, concrete, marble, and granite. Its durable construction ensures a long service life, making it a reliable tool for professional contractors and demanding projects.
Performance Features
- Key Features
- Hot-pressedSuper-thin rimFast cuttingLong lifeAnti-chipping
Compatibility
Compatible Machinery
- Angle grinder
- Circular saw
- Masonry saw
- Suitable Materials
- TileBricksBrick blocksConcreteMarbleGraniteStone
Technical Specifications
Available Dimensions
| Item No. | Diameter (mm) | Bore (mm) | Thickness (mm) | Segment Height (mm) |
|---|---|---|---|---|
| US105TN | 105 | 20 | 1.4 | 8 |
| US115TN | 115 | 22.23 | 1.4 | 8 |
| US125TN | 125 | 22.23 | 1.4 | 8 |
| US180TN | 180 | 22.23 | 1.6 | 8 |
| US230TN | 230 | 22.23 | 1.8 | 8 |
