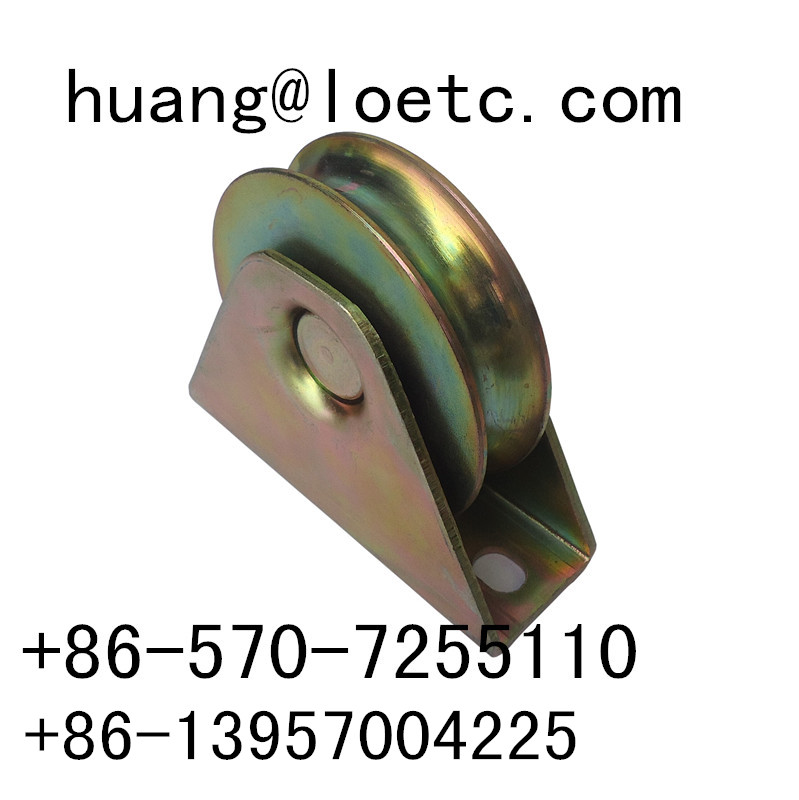

Steel Sliding Gate Roller with V-Groove
This sliding gate roller is constructed from 1045 steel and finished with a zinc or galvanized coating. It is available with single or double bearings and a V, O, Y, or U-groove, supporting a loading capacity of 450 kgs.
Technical Specifications
Product Overview
Professional Grade Sliding Gate Hardware
These heavy-duty sliding gate rollers are engineered for smooth and reliable operation in diverse gate systems. Constructed from high-quality metal with a corrosion-resistant finish, they ensure long-term durability in both residential and industrial environments. The V-groove design, paired with a sturdy mounting bracket, provides precise alignment and structural stability for your gate infrastructure.
Technical Specifications

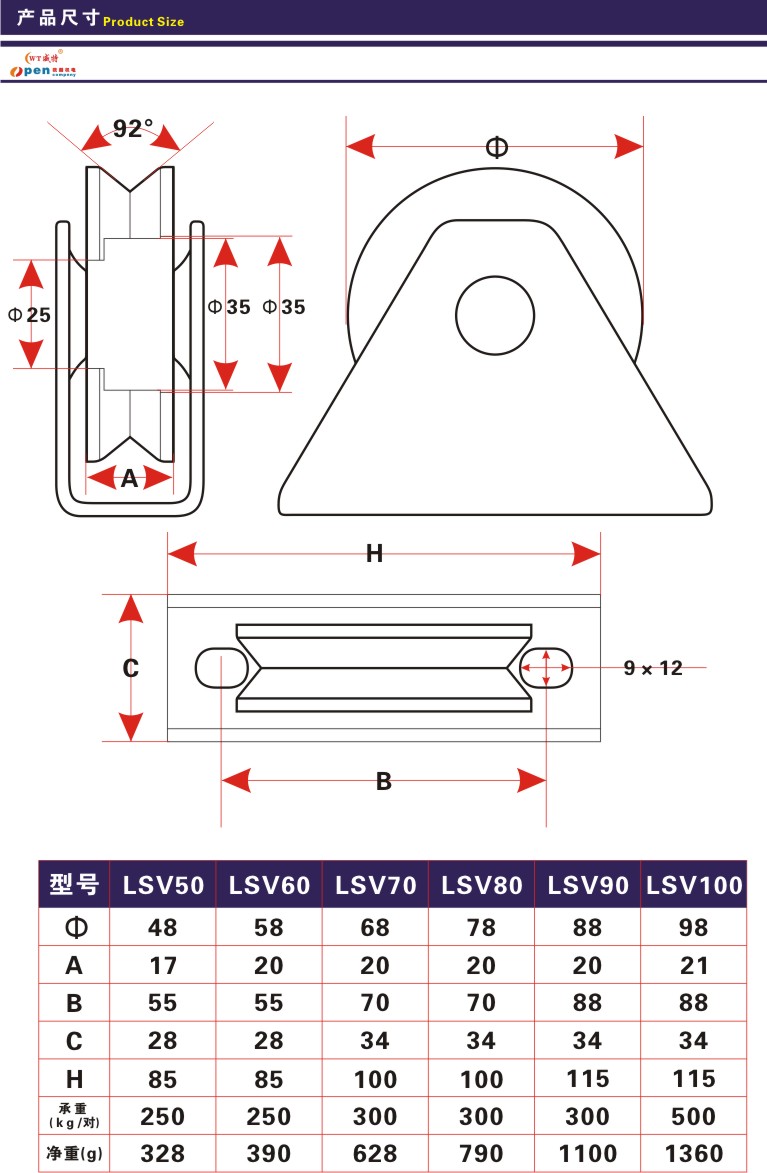

Dimensions & Load Capacity
| Model | Diameter (mm) | Load Capacity (kg/pair) | Net Weight (g) |
|---|---|---|---|
| LSV50 | 48 | 250 | 328 |
| LSV60 | 58 | 250 | 390 |
| LSV70 | 68 | 300 | 628 |
| LSV80 | 78 | 300 | 790 |
| LSV90 | 88 | 300 | 1,100 |
| LSV100 | 98 | 500 | 1,360 |
- V-Groove Angle
- 92 degrees
- Mounting Hole Dimensions
- 9x12 mm
Logistics & Packaging
Box Specifications
20 pcs
Quantity per Box
15.8 kg
Net Weight per Box
17 kg
Gross Weight per Box
- Box Dimensions
- 270 x 270 x 200 mm
Applications
- Suitable Environments
- IndustrialCommercialResidential
