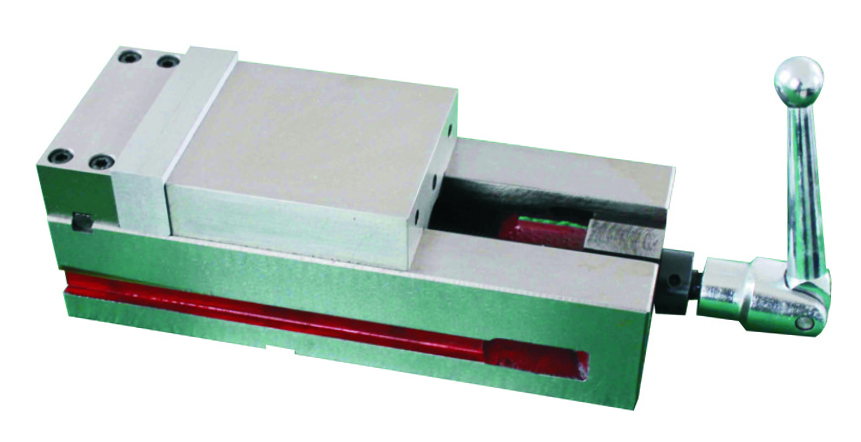

Steel Machine Vise for Milling and Drilling
This machine vise is precision-engineered for secure workpiece clamping in milling, drilling, and grinding. It is constructed from high-grade steel, featuring hardened and ground jaws for accurate and repeatable clamping.
Technical Specifications
Overview
Precision Steel Machine Vise
This high-grade steel machine vise is engineered for secure workpiece clamping during critical milling, drilling, and grinding operations. Designed for durability and rigidity, it features hardened and ground jaws that ensure accurate and repeatable clamping force. The smooth-action screw mechanism allows for consistent, reliable holding, making it an essential tool for demanding machining environments.
Technical Specifications
Model Specifications
| Model | Jaw Width (mm) | Max Opening (mm) | Jaw Height (mm) | Gross Weight (kg) |
|---|---|---|---|---|
| D2-QMN3 | 80 | 75 | 24 | 8 |
| D2-QMN4 | 100 | 100 | 32 | 13 |
| D2-QMN4L | 100 | 240 | 32 | 25 |
| D2-QMN5 | 125 | 125 | 40 | 18 |
| D2-QMN6 | 160 | 140 | 45 | 29 |
| D2-QMN6L | 160 | 340 | 45 | 55 |
| D2-QMN8 | 200 | 190 | 150 | 48 |
| D2-QMN10 | 250 | 250 | 70 | 71 |
- Construction Material
- High-grade steel
- Mechanism Type
- Smooth-action screw mechanism
Applications
- Supported Operations
- MillingDrillingGrinding
