Solar Powered Water Pumping System
This system uses solar energy to automatically pump water, especially in areas lacking electricity. It is an ideal green energy system that integrates economic, reliability and environmental benefits with minimal maintenance.
Technical Specifications
Overview
Sustainable Solar Pumping

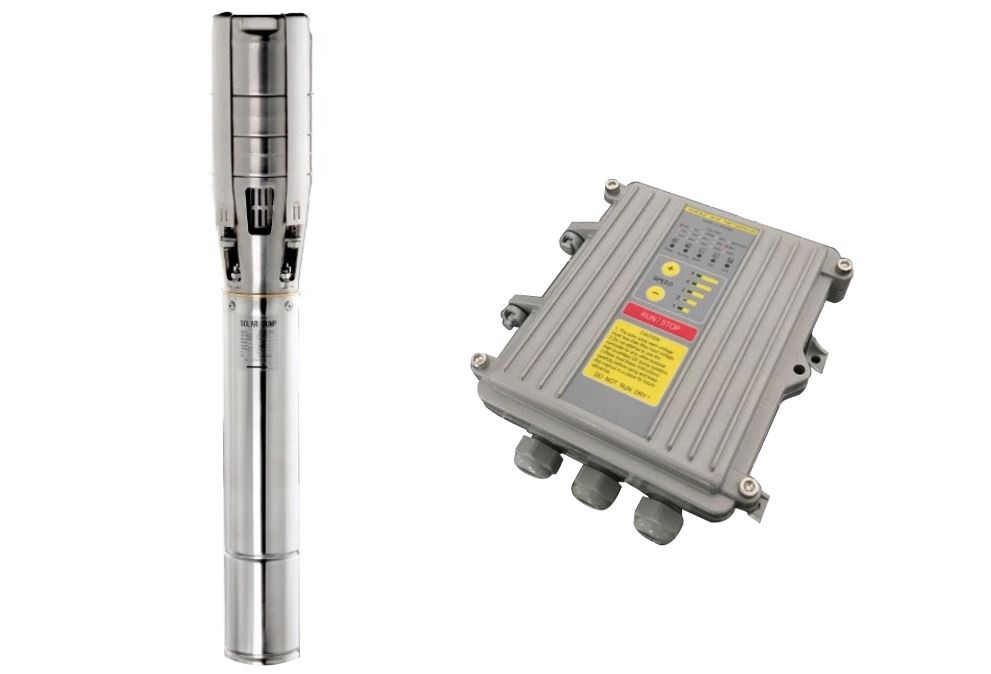

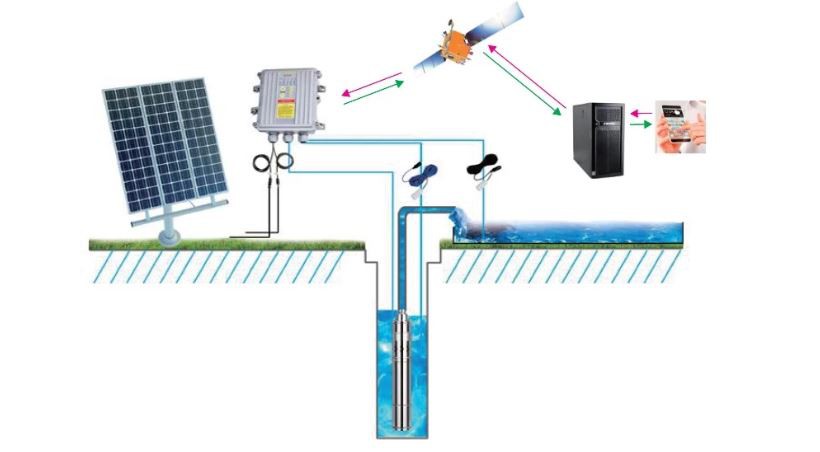

This solar-powered water pumping system utilizes photovoltaic energy to provide a reliable and autonomous water supply, making it ideal for remote regions lacking conventional power infrastructure. Designed for efficiency and minimal maintenance, the system automates operation based on solar availability and features a robust stainless steel construction for long-term reliability. It is a complete green energy solution suitable for diverse applications including irrigation, livestock watering, and domestic water supply.
Technical Specifications
Performance & Technical Data
| Model | Power | Voltage Range | Max Flow | Max Head |
|---|---|---|---|---|
| 25/25-D72/1000 | 1000W | 30-100 VDC | 25 m³/hr | 25 Mtrs |
| 30/15-D72/1000 | 1000W | 30-100 VDC | 30 m³/hr | 15 Mtrs |
| 36/18-D90/1350 | 1350W | 30-132 VDC | 36 m³/hr | 18 Mtrs |
Component Details

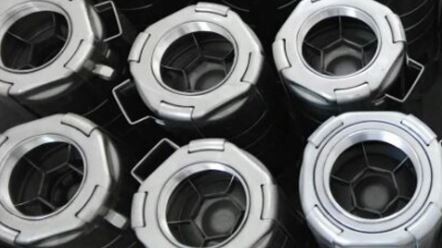

Material Specifications
- Outlet: 304 Stainless Steel
- Pump Body: 304 Stainless Steel
- Motor Body: 304 Stainless Steel
- Bearing: NSK
- Impeller: 304 Stainless Steel
- Screw: 316 Stainless Steel
- Drive & Control System
- Full oil Permanent Magnet Brushless DC Motor32bit MCUFOC Sine Wave Current MPPT

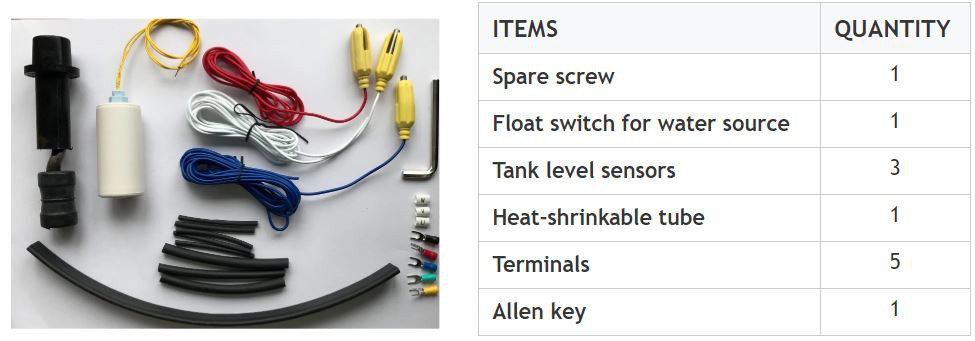

Included Accessories
Standard Kit Components
- 1x Float switch for water source
- 3x Tank level sensors
- 5x Electrical terminals
- 1x Spare screw
- 1x Heat-shrinkable tube
- 1x Allen key
