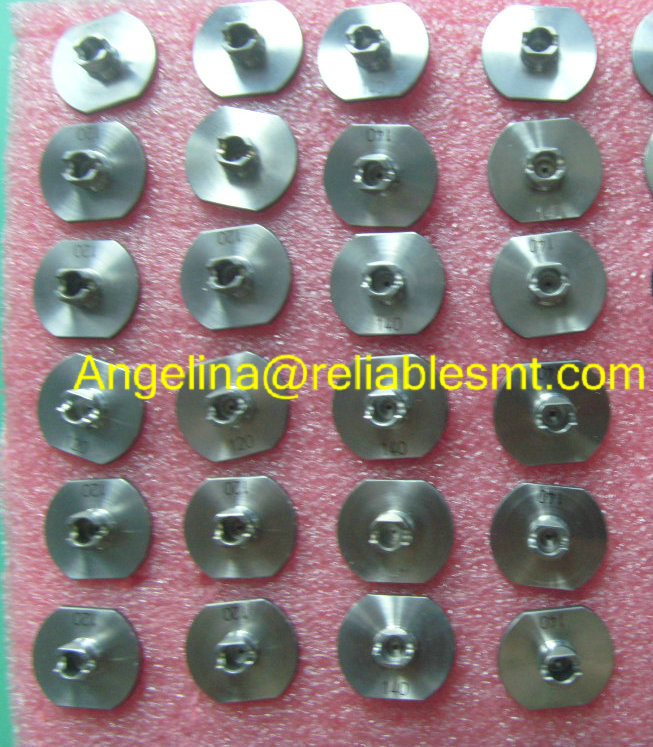

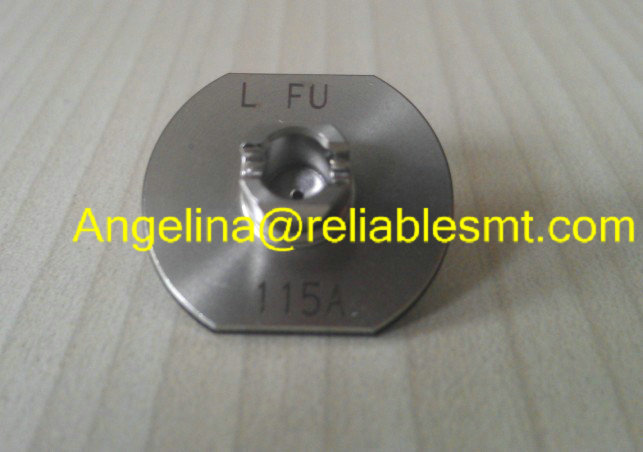

SMT Placement Nozzle for Panasonic CM402
This SMT placement nozzle is designed for Panasonic CM402 pick and place machines. It ensures accurate component placement for surface mount technology applications.
Technical Specifications
Product Overview
Precision SMT Placement Nozzle
This high-precision nozzle is engineered specifically for use with CM402 series placement machines. Designed for demanding surface mount technology assembly processes, it ensures accurate component pick-and-place functionality. Built from durable materials, these nozzles are optimized for extended service life and consistent performance in high-speed production environments.
Construction
High-Durability MaterialPrecision EngineeredHigh-Speed Compatible
Compatibility & Series
Available Nozzle Models
| Nozzle Series | Part Numbers |
|---|---|
| 110/115/120/130/140 | KXFX037NA00, KXFX0383A00, KXFX04MSA00, KXFX03DGA00, KXFX04MTA00, KXFW1BDAA00, KXFX037NA00, KXFX0384A00, KXFX0385A00, KXFX0386A00 |
| 110S/115AS/120S/130S/140S | N610017371AC, N610017372AC, N610017373AC, N610017375AC, N610043702AA, N610040786AA |
| 200 Series | KXFX05V2A00 (206A), N610030510AC (206AS), KXFX04N0A00 (205), N610000995AA (205A), N610017370AC (205S) |
| 200C/CS Series | N610040782AA (225C), N610040783AA (226C), N610040784AA (230C), N610043814AA (235C), N610062681AA (240C), N610040787AA (226CS), N610040788AA (230CS), N610043815AA (235CS), N610040853AA (240CS) |
| 400/1000 Series | KXFX03DPA01 (450), N610054394AA (450S), N610004673AA (161), N610058431AA (161S), KXFX03DSA00 (1001), KXFX03DUA00 (1002), KXFX03DWA00 (1003), KXFX03DYA00 (1004), KXFX03E0A00 (1005) |
- Compatible Machine Series
- CM402
