SMT Placement Machine Nozzle Assembly 503

This is a nozzle assembly for SMT placement machines. It ensures accurate and reliable pick-and-place operations.

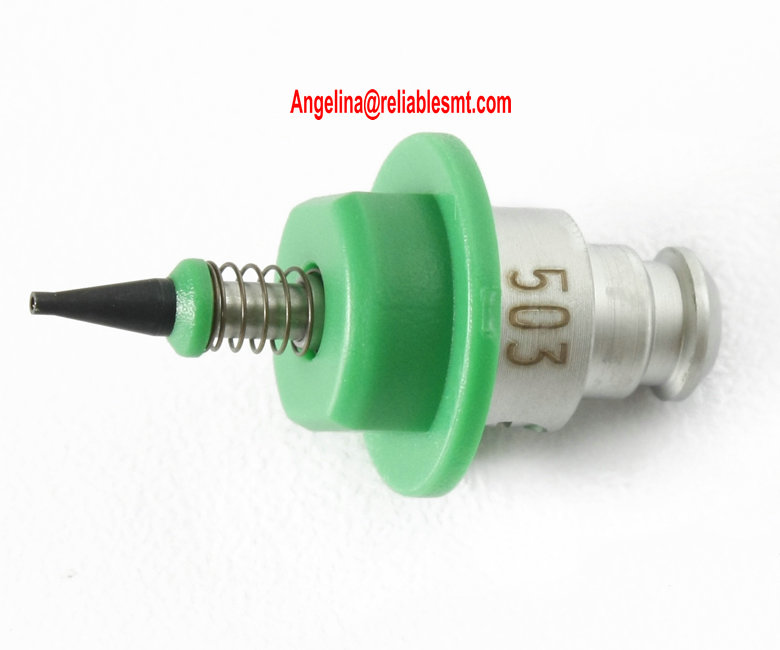

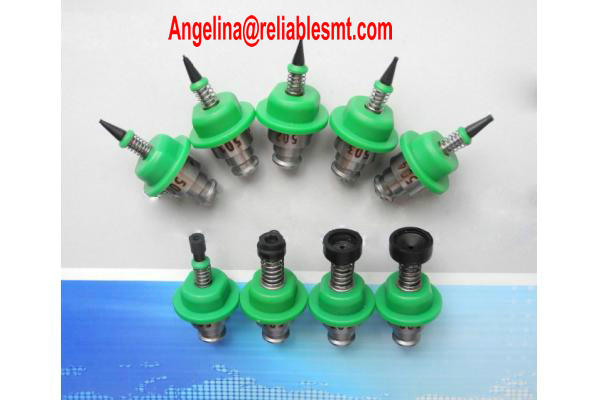

JUKI 40001341 SMT NOZZLE ASSEMBLY 503 nozzle - Image 1

Technical Specifications

Product Overview

Precision Nozzle Assembly

This high-quality nozzle assembly is engineered for reliable component placement in surface mount technology (SMT) processes. Designed for high-speed and accurate pick-and-place operations, this component ensures optimal performance and minimizes downtime in electronic assembly environments. Its durable construction offers long-lasting resistance to wear, making it an essential part for maintaining production efficiency.

Compatibility

Compatible Nozzle Series

100 Series
200 Series
500 Series
500 CVS Series
700 Series

Part Reference

Nozzle Assembly Reference

Part Number	Assembly Model
40001341	Nozzle Assembly 503
40010996	Nozzle Assembly 503 CVS
40001342	Nozzle Assembly 504
40010997	Nozzle Assembly 504 CVS
40001343	Nozzle Assembly 505
40010998	Nozzle Assembly 505 CVS

Product Quality

Quality Options: Original NewCopy New

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.
