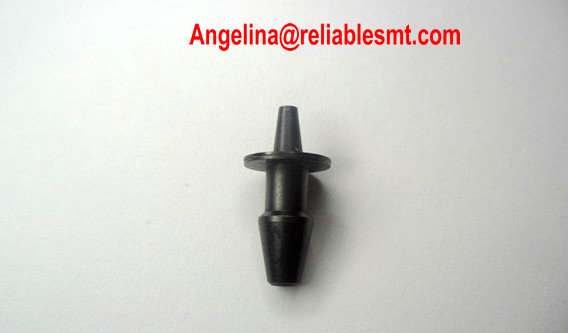

SMT Pick and Place Nozzle TN140
This SMT pick and place nozzle is designed for use with SAMSUNG machines. The TN140 model ensures accurate component placement during the surface mount technology assembly process.
Technical Specifications
Product Overview
Precision SMT Pick and Place Nozzle
This high-precision nozzle is engineered for reliable component handling in automated surface mount technology assembly processes. Designed for high-speed operation, it ensures dimensional stability and optimal vacuum suction to minimize component damage. Available in original and copy versions, it is a critical component for maintaining efficiency and accuracy in automated manufacturing lines.
- Nozzle Series
- TN SeriesCN SeriesCP 20/40 CompatibleCP 45 CompatibleCP 60 Compatible
Technical Specifications
Nozzle Dimensions
| Part Model | Outer Diameter (mm) | Inner Diameter (mm) |
|---|---|---|
| TN140 | 2.2 | 1.4 |
| TN220 | 3.6 | 2.2 |
| TN400 | 6.2 | 4 |
| TN030 | 0.8 | 0.3 |
| TN045 | 0.75 | 0.38 |
| TN070 | 1.2 | 0.65 |
Quality Options
Original NewCopy New
