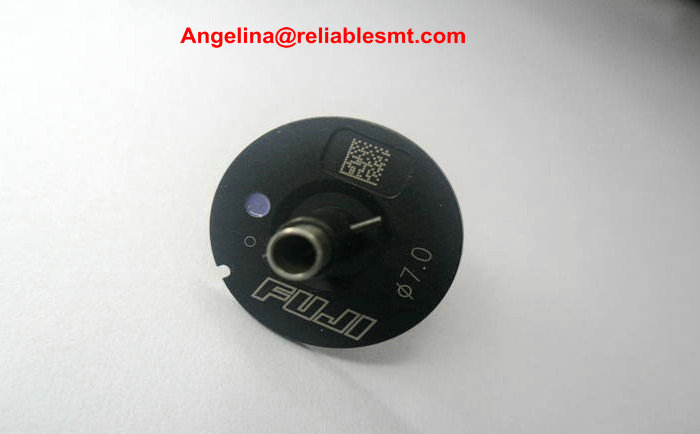

SMT Pick and Place Nozzle H04 7.0mm
This precision nozzle is designed for use in surface mount technology (SMT) pick and place machines. It ensures accurate and reliable component handling during automated electronic assembly.
Technical Specifications
Product Overview
High-Precision SMT Nozzle
This premium pick and place nozzle is engineered for reliable component handling in automated surface mount technology assembly. Available in original and high-quality replacement variants, it is designed to maintain consistent vacuum integrity for high-speed placement operations. Its robust construction ensures extended durability and operational efficiency across various component sizes.
Compatibility
- Placement Head Type
- H04
- Available Nozzle Tip Sizes
- 1.3mm1.8mm2.5mm3.75mm5.0mm
Technical Specifications
Nozzle Tip Options
- Standard
- Diamond Tip
- Diamond Coated Tip
- Ceramic Tip
- Rubber Pad
Reference Part Numbers
| Part Number | Description |
|---|---|
| AA06W | H04, 1.3mm (Diamond Tip) |
| AA06XD | H04, 1.3mm (Diamond Tip) |
| AA06XDC | H04, 1.3mm (Diamond Coated Tip) |
| AA06Y | H04, 1.8mm |
| AA07A | H04, 3.75mm |
| AA07F | H04, 2.5mm (Rubber Pad) |
| AA07G | H04, 3.75mm (Rubber Pad) |
| AA07H | H04, 5.0mm (Rubber Pad) |
