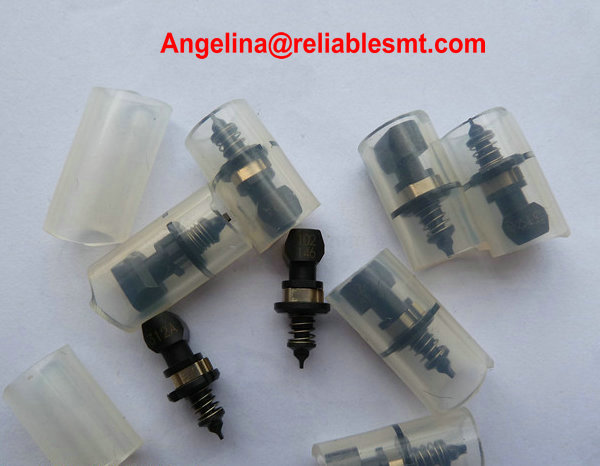

SMT Pick and Place Nozzle 313A
This SMT pick and place nozzle is designed for accurate component placement. It ensures optimal performance and minimizes component damage during the SMT assembly process.
Technical Specifications
Product Overview
Precision SMT Placement Nozzle
This high-precision nozzle is engineered for reliable component handling during automated surface mount technology assembly processes. Designed for durability and consistent high-speed performance, it helps minimize component damage and enhances overall production line efficiency. These units are compatible with various series of pick and place and dispensing equipment.
Compatibility & Series
- Compatible Machine Series
- YG200YG100YV100XYV86DYV100DYV64DYMH HSD-X
Technical Specifications
Available Nozzle Assemblies
| Series | Part Category |
|---|---|
| YG200 | 201A, 202A, 203A, 206A, 209A, 71F, 72F, 73F, 79F |
| YG100 | 211A, 212A, 213A, 214A, 219A, 211F, 212F, 213F, 219F |
| YV86D/YV100D | Dispensing Nozzles (Solder Paste/Adhesive) |
| YV64D | Dispensing Nozzles (OD 0.6-1.8/ID 0.3-1.5) |
Tip Types
Diamond TipRound Tip
