Small Transformer Coil Winding Machine
This machine is designed with a 32-bit controller chip for fast speed and high reliability. It features an easy-to-operate interface with Chinese and English display and retains winding data after power failure.
Technical Specifications
Overview
High-Efficiency Coil Winding Solution

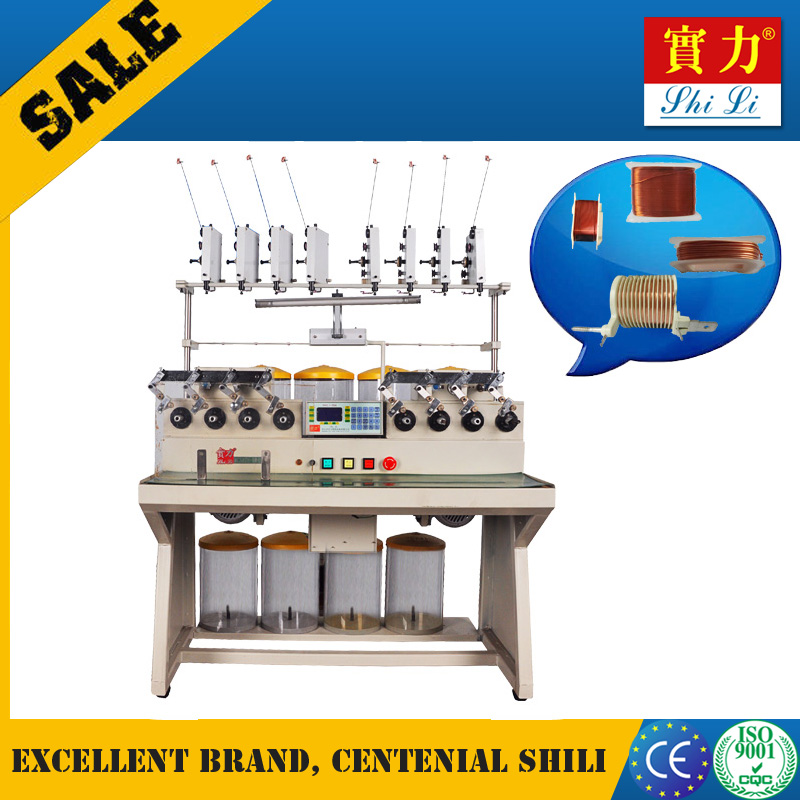

The MCSH26-80AB is a compact and efficient coil winding machine specifically engineered for small transformers and shaded pole motors. It features a 32-bit controller chip for high reliability and precision, supporting simultaneous thin and thick wire winding capabilities. Designed to maximize production output, this machine offers advanced synchronization and self-detection features to ensure consistent quality and significant time savings.
Technical Specifications
Configuration Options
- Type A (Thin wire)
- Type B (Thick wire)
- Controller System
- 32-bit controller chip with LCD synchronization
- Key Components
- Japan Bearing (NSK/NTN)Japan BANDO/GATES BeltTaiwan Ball Screw (TBI)
Key Features
Operational Capabilities
- Winding data retention after power failure
- Self-detection (error setting, speed tracking)
- Velocity calibration
- Adjustable spindle motor climb time
Certifications & Standards
Quality Certifications
CEISO 9001
Applications
- Suitable For
- Small TransformersMedium TransformersShaded Pole MotorsSmall Coil Products
