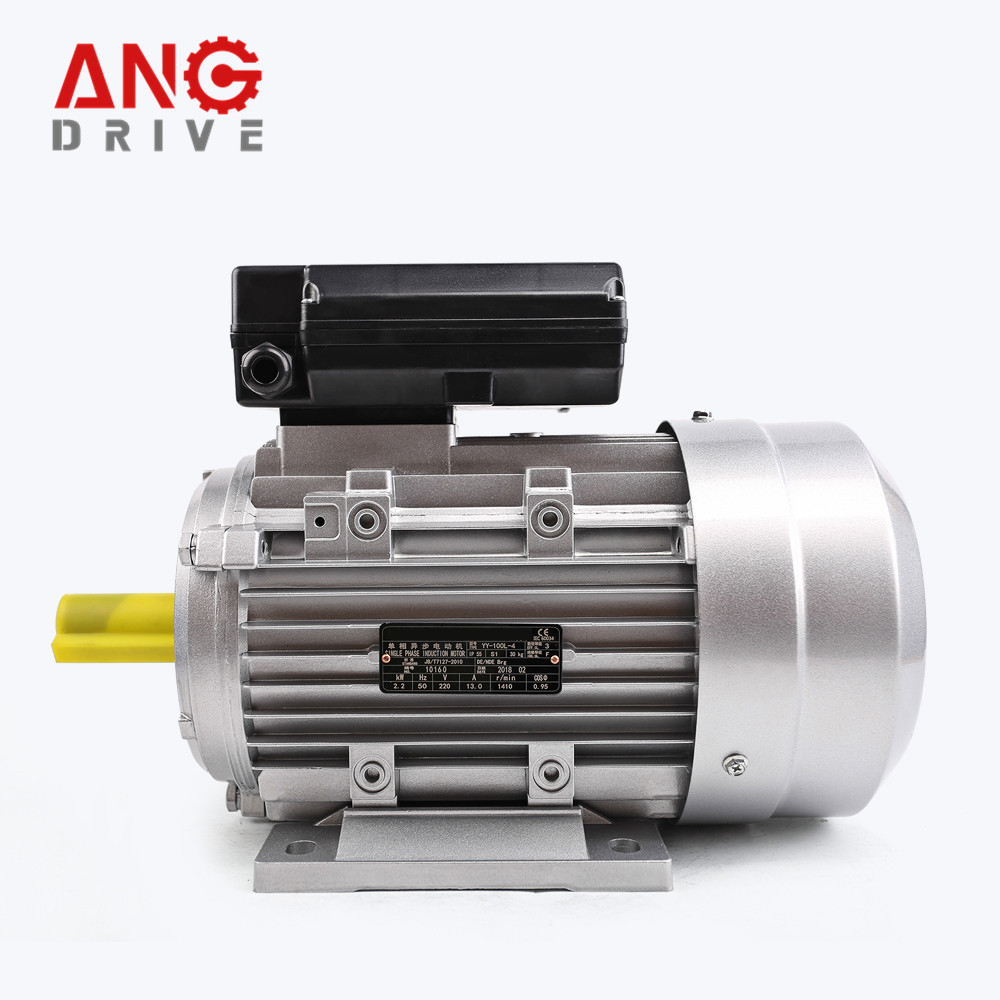

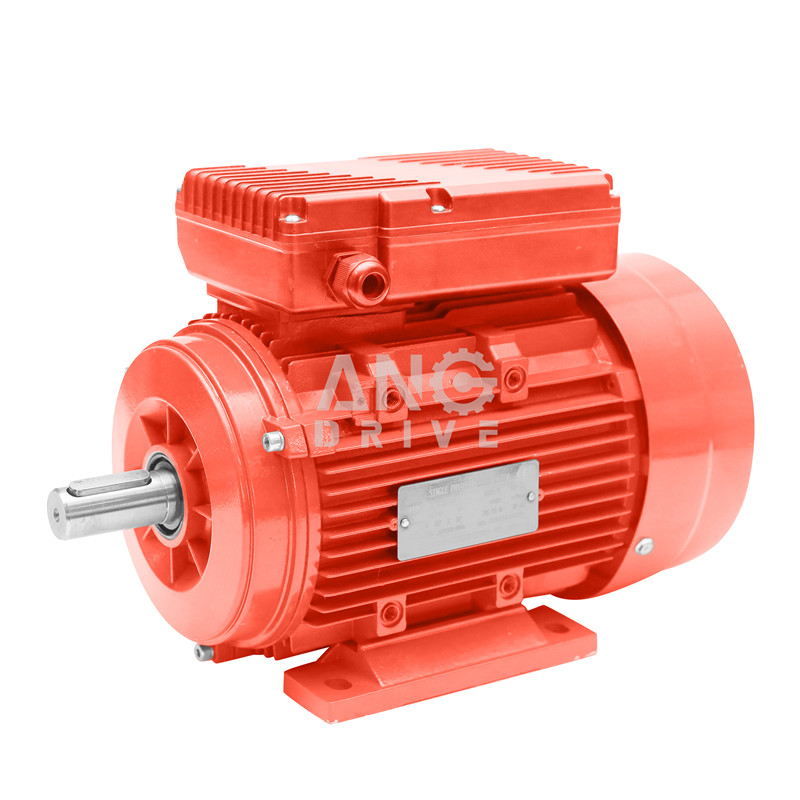

Single-Phase Asynchronous AC Induction Motor
This single-phase asynchronous AC induction motor provides good performance and safe, reliable operation. It features low noise, low vibration, and light weight, with mounting dimensions that conform to IEC standards.
Technical Specifications
Overview
High-Performance Induction Motor
This single-phase asynchronous AC induction motor is engineered for reliable performance and safe operation in diverse industrial and household environments. Designed with a robust finned housing for efficient heat dissipation, it minimizes noise and vibration during use. The motor complies with IEC standards for mounting dimensions, ensuring compatibility and ease of installation for various applications.
Technical Specifications
Core Performance Metrics
2.2 kW
Power Output
50 Hz
Frequency
220 V
Voltage
13 A
Rated Current
1,410 r/min
Rated Speed
Mechanical Data
30 kg
Weight
0.95
Power Factor
Protection Rating
IP55
- Model Number
- YY-100L-4
Applications
Typical Applications
- Household appliances
- Swimming pool pumps
- Fans
- Recording meters
Standards
- Compliance
- IEC Standards
