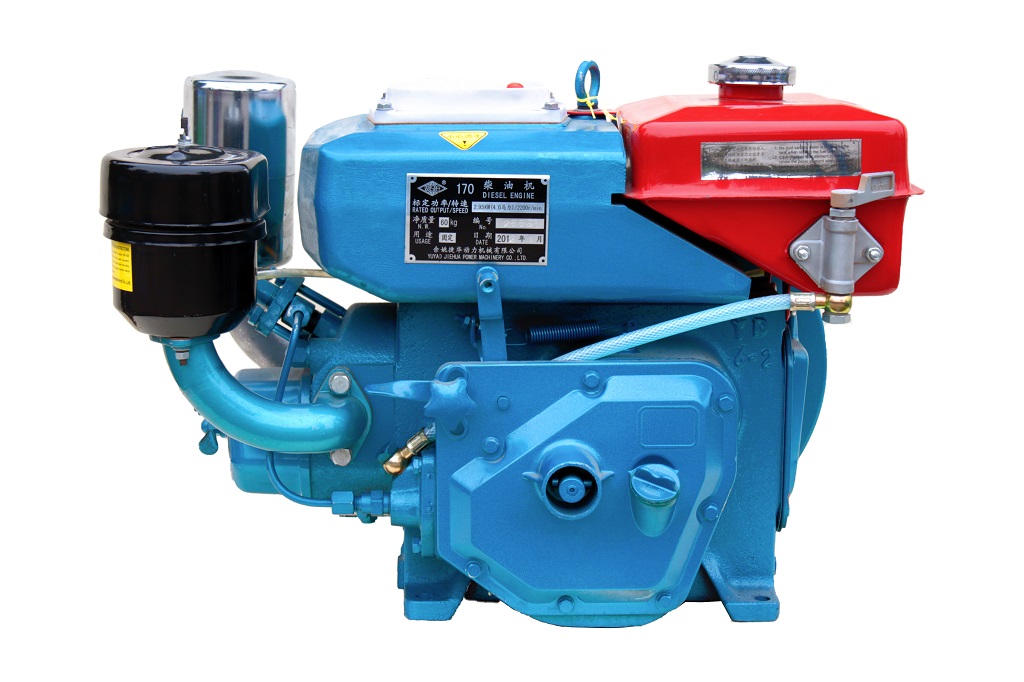

Single-Cylinder Diesel Engine
This single-cylinder diesel engine is designed for a range of applications. It provides reliable power through efficient combustion and a durable construction.
Technical Specifications
Overview
Robust Single-Cylinder Diesel Engine
This series of horizontal 4-stroke diesel engines is engineered for reliability and efficient performance across diverse industrial and agricultural applications. Featuring water-cooled mechanisms and a choice between swirl or pre-combustion chamber designs, these engines deliver consistent power output. With a compact footprint and durable construction, they are an ideal solution for powering machinery in demanding environments.
Performance Metrics
Key Performance Metrics
5.66 kW
Max 1-Hour Power
2,600 rpm
Rated Speed
0.402 L
Max Displacement
Technical Specifications
Technical Specifications
| Parameter | Details |
|---|---|
| Engine Type | Horizontal 4-stroke |
| Cylinders | 1 |
| Cooling Method | Water-cooled |
| Lubrication | Centrifugal lubrication, oil mist and splash |
| Starting Method | Hand starting |
| Compression Ratio | 22±1 to 23±1 |
Model Comparison
Water-Cooled Series Data
| Model | Bore x Stroke (mm) | Net Weight (kg) |
|---|---|---|
| TR165 | 65x60 | 28 |
| TR170 | 70x60 | 35 |
| R175A | 75x80 | 60 |
| R180A | 80x80 | 70 |
Applications
- Suitable Applications
- Agricultural MachineryConstruction EquipmentIndustrial PowerWater Pumping
