Single Arm Milling Machine
The single-arm milling machine is designed for stability and precision in various milling tasks. It is particularly suitable for processing large-scale or complex workpieces.
Technical Specifications
Overview
High-Performance Single Arm Milling Machine

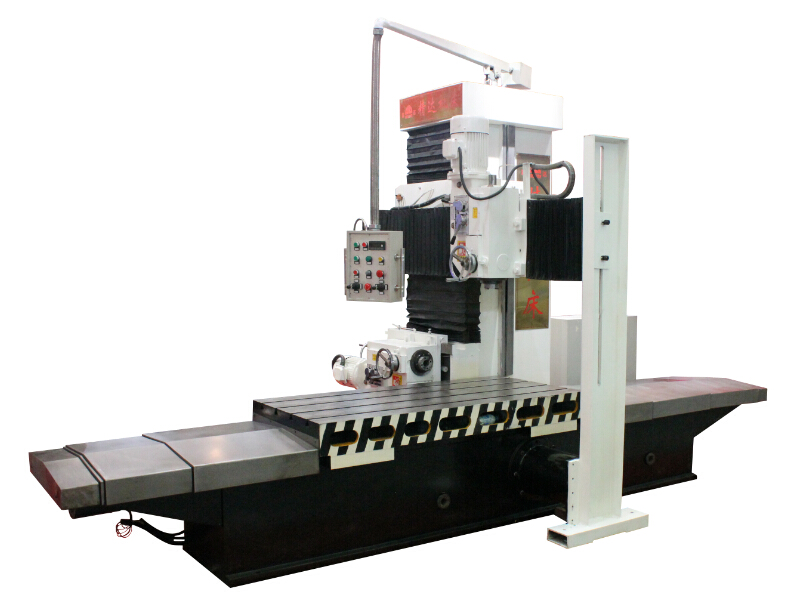

The DBX series single-arm milling machine is engineered for stability, flexibility, and operational convenience in demanding machining environments. Equipped with an auxiliary column to enhance rigidity and a vertical milling head capable of 30-degree adjustments, this machine is ideal for processing large-scale or complex special-shaped workpieces. Frequency-controlled feeding systems across X, Y, and Z axes ensure precision, efficiency, and ease of maintenance.
Technical Specifications

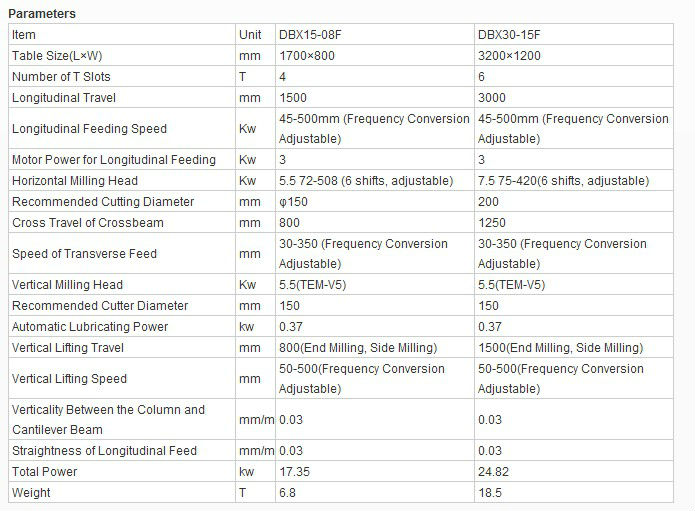

Model Comparison
| Parameter | DBX15-08F | DBX30-15F |
|---|---|---|
| Table Size (mm) | 1700x800 | 3200x1200 |
| Longitudinal Travel (mm) | 1500 | 3000 |
| Weight (T) | 6.8 | 18.5 |
| Total Power (kW) | 17.35 | 24.82 |
Precision Metrics
0.03 mm/m
Verticality Column/Beam
0.03 mm/m
Straightness of Feed
Features
Core Features
- Auxiliary column for enhanced rigidity
- Vertical milling head with 30-degree tilt capability
- Frequency conversion controlled feeding speed
- Automatic lubrication system
- Customization available per customer requirement
- Available Milling Heads
- Vertical Milling HeadRight-angle Milling HeadUniversal Milling Head
