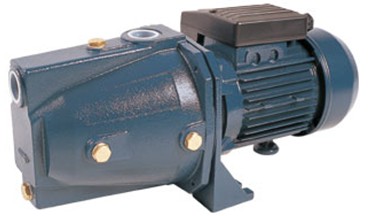

Self-Priming Jet Pump
This self-priming jet pump is suitable for ambient temperatures up to 40°C and fluid temperatures up to 40°C. It can handle a maximum pressure of 10 bar.
Technical Specifications
Product Overview
High-Performance Self-Priming Jet Pumps
The JETB series injection-type pumps combine centrifugal force with nozzle technology to provide reliable, high-head performance. Designed for clean water applications, these units excel at rapid self-priming and are perfect for domestic water supply, pressure boosting, and garden irrigation. Their robust design ensures durability, making them an ideal choice for both residential and agricultural environments.
Key Features
- Capabilities
- Self-PrimingHigh HeadDeep SuctionClean Water CompatiblePressure Boosting
Technical Specifications
Performance Overview
54 l/min
Maximum Flow
52 m
Maximum Head
9 m
Suction Head
2,850 R.P.M
Rotational Speed
Model Comparisons
| Model | Power (HP) | Q.max (l/min) | H.max (m) | Net Weight (kg) |
|---|---|---|---|---|
| JET60B | 0.5 | 42 | 38 | 9 |
| JET80B | 0.75 | 48 | 46 | 9 |
| JET100B | 1 | 54 | 52 | 9 |
Installation Requirements
Placement Instructions
- Install in a covered area
- Protect against adverse weather conditions
- Suitable for wells and swimming pools
- Compatible with surge tanks and pressure switches
