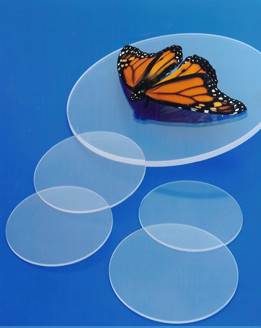

Sapphire Optical Windows
These sapphire windows feature low distortion and scatter. They offer excellent parallelism for laser and non-laser applications.
Technical Specifications
Product Overview
High-Performance Sapphire Windows
These sapphire optical windows are engineered from anisotropic synthetic sapphire crystal, offering unmatched hardness and durability for demanding industrial applications. With exceptional optical clarity and transmission across a broad spectrum, they are ideally suited for use in sensors, high-pressure cells, and precision laser systems. Their superior resistance to scratching, abrasion, and high temperatures ensures reliable performance in the harshest environments.
Material Properties
- Material
- Anisotropic synthetic sapphire crystal (Al2O3)
- Orientation
- Random
Dimensional Specifications
- Diameter Tolerance
- +0.0, -0.15mm
- Thickness Tolerance
- +/- 0.2mm
- Clear Aperture
- > 85% of diameter
Optical Performance
- Parallelism
- 3 arc minutes
- Flatness
- lambda per 25mm @ 632.8nm
Quality Standards
- Surface Quality
- 80-50 scratch and dig
Manufacturing Details
Available Size Range
3 mm
Minimum Size
120 mm
Maximum Size
- Bevel
- 0.25mm x 45deg
